Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service

Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service
Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service Double-stage Automatic 6000 liters/hour Transformer oil purification filtration plant, Transformer maintenance service
Basic Information
Place of Origin: China
Brand Name: Sino-NSH
Certification: CE, ISO, CCC, SGS, CNAS, CQC
Model Number: VFD-A-100
Minimum Order Quantity: 1 set
Price: USD 5000-20000 dollar
Packaging Details: Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks,four casters, enclosed steel cover
Delivery Time: 15-25 working days for OEM
Payment Terms: T/T,L/C
Supply Ability: 50 sets per month
Get Best Price Contact Now
Application: Oil Purifier,oil Filtering,oil Recycling, Oil Filter Treating Oil: Insulation Oil(Transformer Oil)
Capacity: 6000 Liters Per Hour Color: Green, Blue, Gray (Customized As Needed)
Power: 69 Kw Material: Carbon Steel
Voltage: 380v,50hz,3p Or Customized As Needed Usage: Indoor

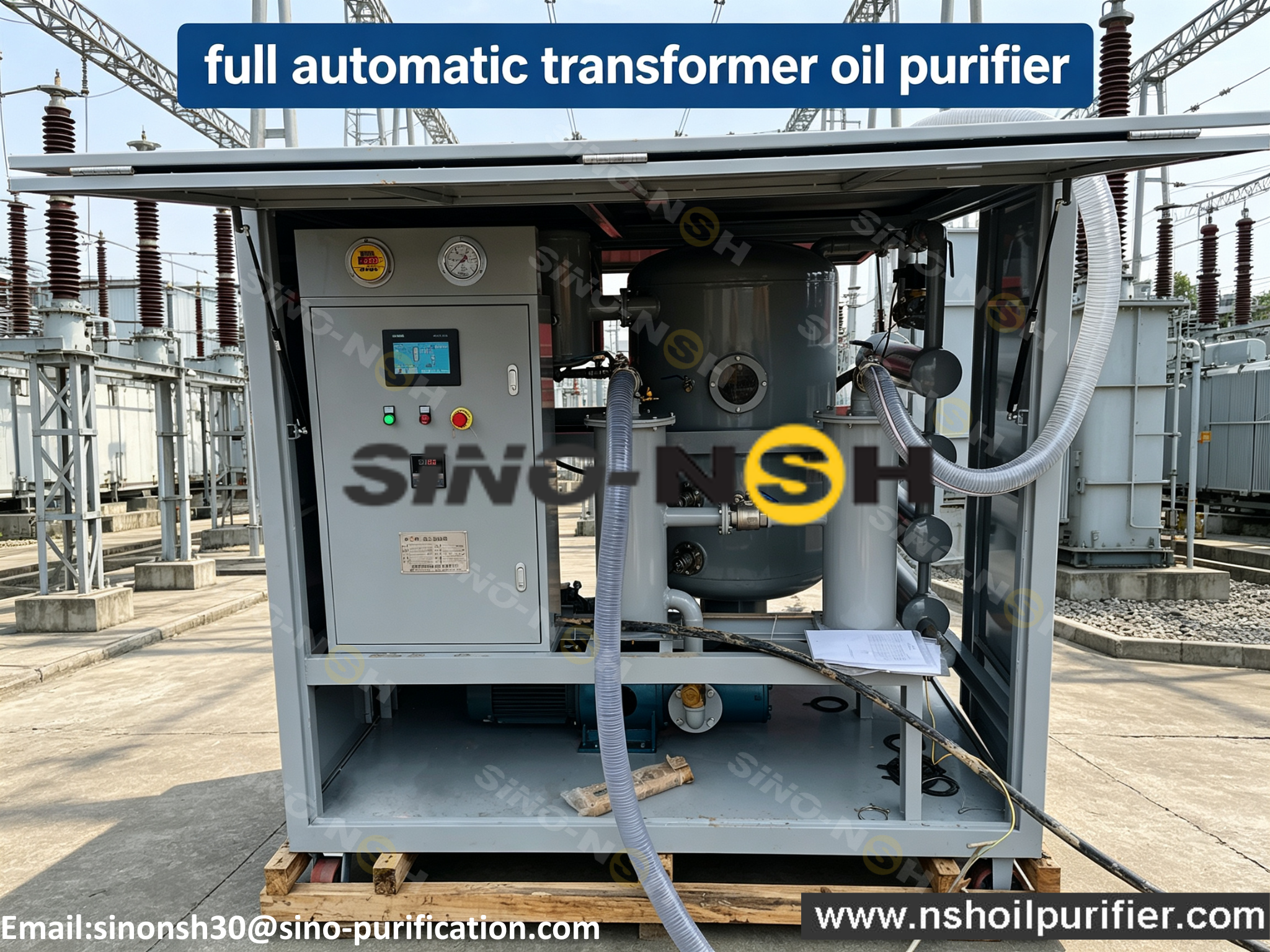

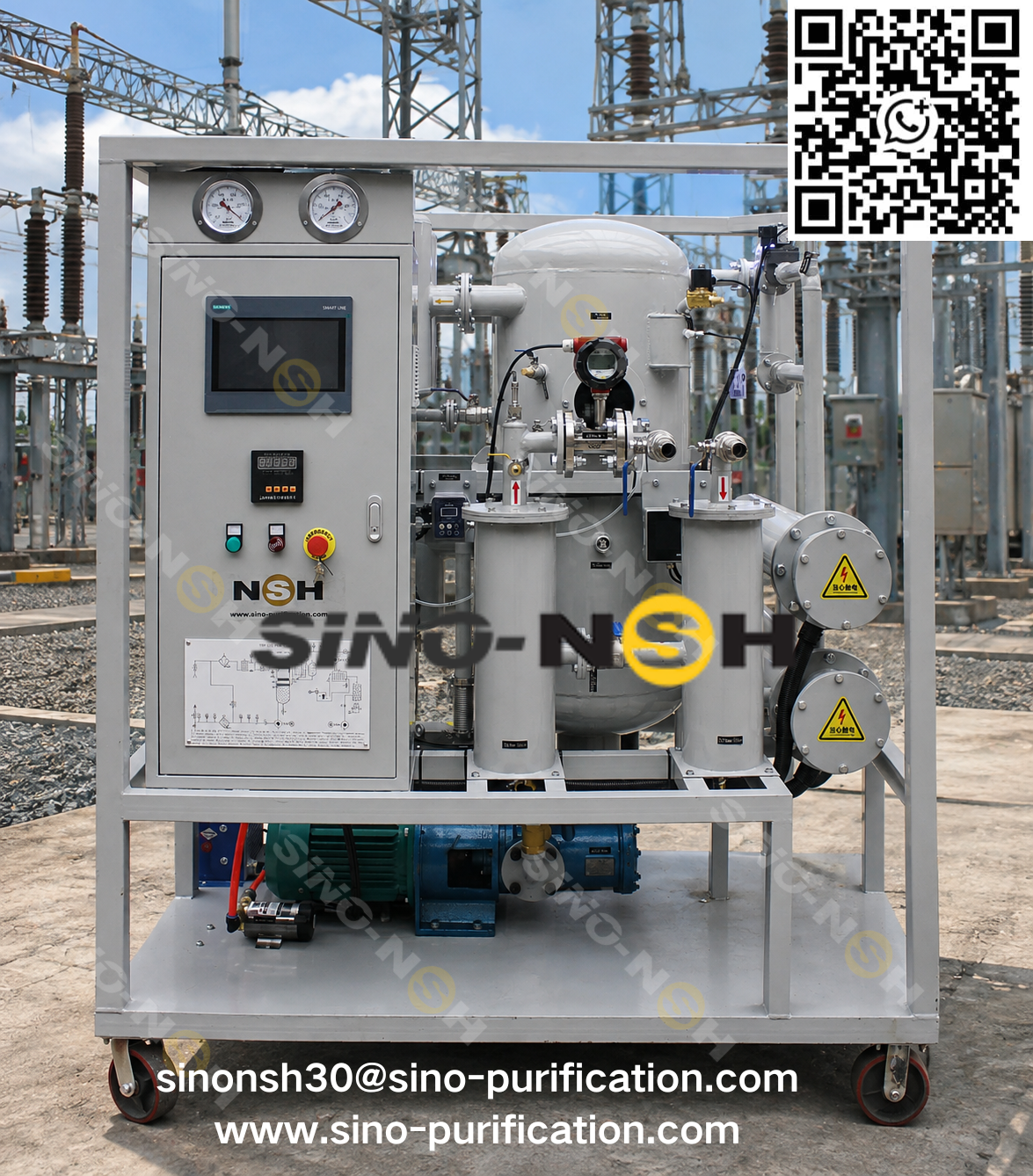

Double-stage  Automatic  Transformer oil purification machine, 6000 liters/hour, Vacuum oil purifier

Description

Sino-NSH-VFD  is a multifunctional dehydration and degassing system that utilizes thermal treatment along with a double-stage vacuum process, allowing it to process a wide range of insulation oils.


Application

Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.


Sino-NSH-VFD maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers our machine.


Sino-NSH-VFD maintains:

-Liquid level auto-controlling system

-Auto pressure protection system

-Steady temperature auto-controlling system

-Electrical auto-protection system to control electric phases, voltage, and overload pump

-High efficiency, low noise

-Environmentally friendly design

-Low maintenance cost



Features

  • Perfect capacity of removing impurities. The special filters made by NSH are made of special materials which can eliminate various impurities, water and gas effectively and rapidly.
  • Automatic reverse-washing system will extend the lifetime and improve the performance of the filters.
  • High performance security system including pressure protection device and automatic temperature controller makes purifier operated safely.
  • Online work.
  • Easy handling and maintenance.
  • Lower maintenance and replacement expenses.
  • High efficiency and effectiveness.
  • Small size, light weight, low noise.
  • Available in mobile or stationary options.
  • Various sizes and configurations (shield) available.


Edges of products
Dehydration (Degas) System

  • The horizontal vacuum vessel can enlarge evaporation area efficiently. The heater, being placed on the horizontal vacuum vessel, becomes an evaporator. Thus the evaporation area of horizontal vacuum vessel is three times more than that of the vertical vacuum vessel. This innovation can dehydrate and degas effectively and efficiently.
  • The optimal structure of the dehydration (degas) system enlarges the surface area of oil exposed to the vacuum system and extends the flowing distance of the oil in the vacuum system. Thus there has sufficient time to remove the moisture and gas from the oil by vaporization.


Filtering System

  • The filtering materials with variable apertures are made of specialized glass fiber. The sizes of the filtering fiber and aperture dwindle gradually in the different filtering stages. The impurities with different particulate sizes are filtered step by step. The capability of removing particulate matters and impurities is improved greatly by this method.
  • The filtering system has stable and perfect filtering fineness. The filtering fineness has several grades, including 1, 2,3,4,5,6,10 µm etc. Oil β≥1000 after filter.
  • The filtering system is equipped with reverse rinse and filth device. It improves the effectiveness of filtering and extends the lifetime of filter awfully.



Oil heating System

  • The unique heater structure heats the oil uniformly.
  • Oil Heater System assures less than 1.0 w/cm². During the heating process, the deterioration of the oil caused by overheating is avoided.
  • The oil temperature can be adjusted between 20℃ to 80℃.The heater is controlled manually or automatically. The heater will stop automatically when the oil temperature reaches a certain degree.
  • Being installed with safety protection devices, the heating system is secure and reliable. The heater will stop operation automatically when the oil volume of inlet is too low to avoid the damages of the heater.


Oil-level Controlling System

  • The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control the oil level so as to avoid the oil leaking in the operation.
  • The new innovation of eliminating froth can avoid the oil ejecting and gushing during the process.

High quality components

  • The main component parts of our products such as vacuum pump, oil pump and electric apparatus are from international famous brand. It ensures our products high quality and reliability.


Technical Parameters:


Technical Specification
Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
Vacuum Range Mpa -0.092 ～ -0.099
Operation System - PLC with touch screen, automatic operation
Working Pressure Mpa ≤0.2
Max Vacuum Range Pa ≤50
Temperature Range ℃ 45 ～ 65
Breakdown Voltage Kv ≥75
Impurity Size μm ≤5
Dielectric Loss Tg ≤0.005
Interfacial Tension mn/m ≥40
Water Content PPM ≤4
Gas Content % ≤0.1
Power Supply 　 380V/3P/50Hz(or as needed)
Working Noise dB(A) ≤72 ≤78
Heating Power Kw 30 48 72 90 120 180 240
Total Power Kw 35 54 77 98 129 189 254
Pipeline Diameter mm DN25 DN32 DN32 DN40 DN50 DN65 DN65
Net Weight Kg 550 850 1000 1100 1400 1600 2200
Size length mm 1500 1500 1700 1900 2100 2100 2600
width mm 1200 1200 1500 1400 1550 1550 1800
high mm 1750 1750 1850 1800 1900 1900 2000



About us:►Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech Company Since 2004 which is engaged in researching, developing and manufacturing lubrication purification equipment. After 18 years' growing, NSH passed the approval of the ISO 9001:2015 quality system, Environmental Management System as per GB/T 24001-201 6/ISO 14001:2015, Chinese high-tech enterprises and another sorts of certifications Issued by Chinese Government, At the same time, we have obtained hundreds of patents for our advanced technology.

NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.


NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.Our expertise positioned SINO-NSH as a leading manufacturer in China and also keeps long term cooperation with many famous international enterprises. We are committed to exceeding your expectations.


►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
