Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE, ISO, CCC, SGS, CNAS, CQC |
Model Number: | VFD-100 |
Minimum Order Quantity: | 1 set |
Price: | USD 5000-20000 dollar |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 15-25 working days for OEM |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Voltage: | 380v/50hz And As Your Option | Power(w): | 40-135Kw |
---|---|---|---|
Condition: | New | Weight: | 685-1900KG |
Dimension(l*w*h): | According To Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Flow: | 1800 L/h-18000L/h | Certification: | CE ISO,ISO9001,SGS,CE/ ISO,BV |
Working Pressure: | Lower Than 0.5 Mpa | Usage: | Transformer Oil,Lubricant Oil,Insulation Oil,Industrial Oil Filtrator |
Warranty: | 1 Year | Function: | Transformer Oil Purification,Degases And Removes The Impurities,Degassing,Dewaters |
Color: | Customizable | Breakdown Voltage: | ≥75KV |
Type: | Vacuum Oil Purifier,Double Stage Vacuum Insulating Oil Regeneration System,High Eficiency,Portable Filtration | Working Temperature: | 45 ~ 65 |
Name: | 6000L/H Transformer Oil Purifier Filtration System Vacuum Plant | Capacity: | 1800L/H-18000L/H,As User Need |
Heating Power: | 30~192Kw |

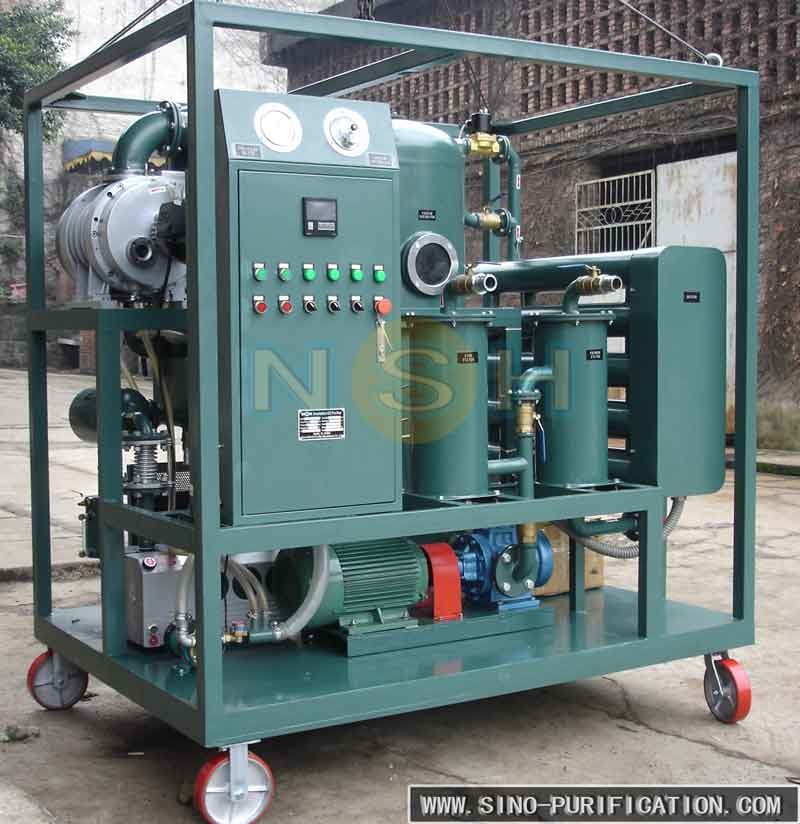

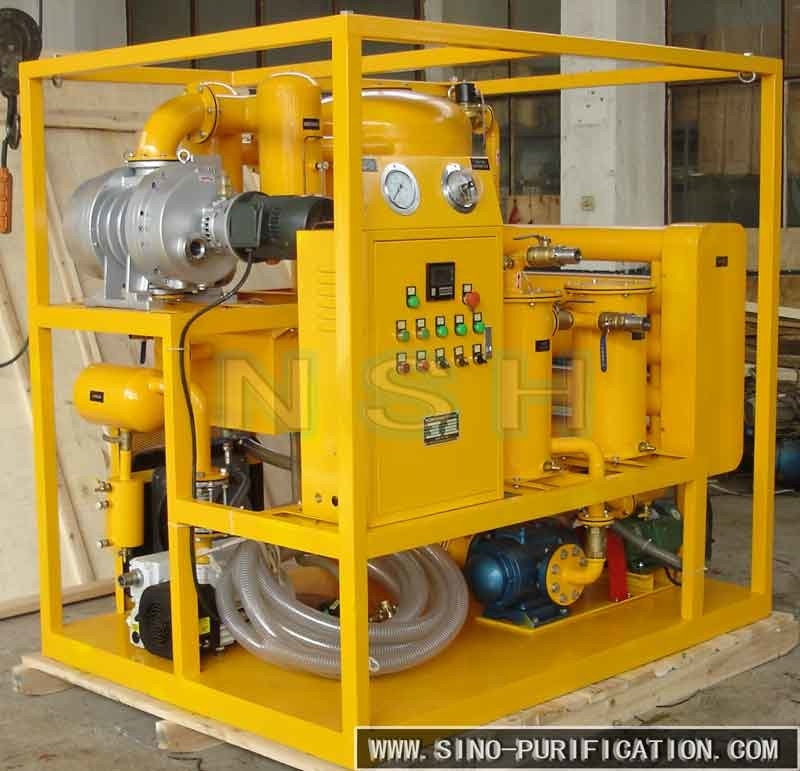

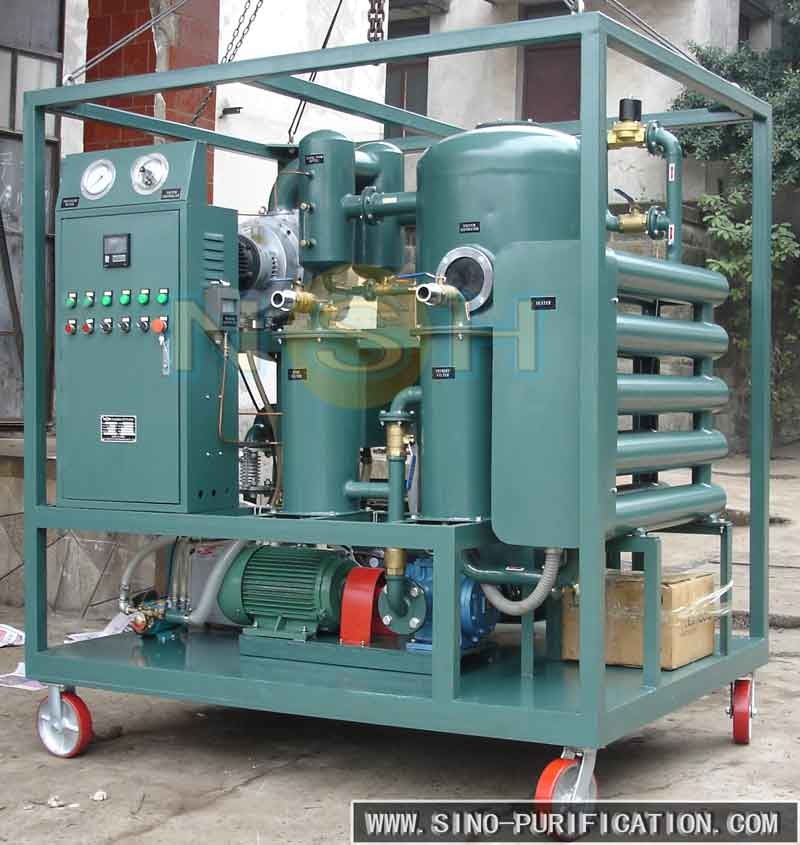

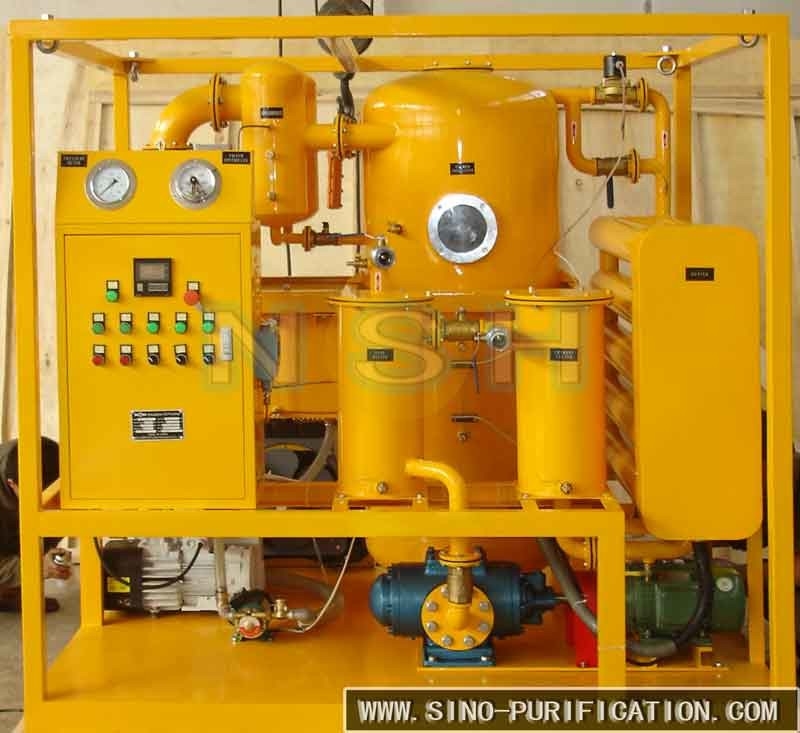

6000L/H Transformer Oil Purifier Filtration System Vacuum Plant
General
The NSH VFD series is primarily utilized to optimize the qualities of insulation oil. These products are specifically engineered to elevate the performance of insulating oil, ensuring its effectiveness in electrical systems. The series can swiftly and efficiently eliminate water, gases, particles, and other contaminants from the insulating oil. This purification process is vital for enhancing the operational efficiency and lifespan of transformers, circuit breakers, cables, capacitors, and other equipment that rely on an insulation system.
Operating conditions:
The installation must be engineered to operate satisfactorily within an ambient temperature range of -20°C to 55°C.
Description
The NSH VFD series Vacuum Oil Filter is an advanced oil purification system, incorporating vacuum drying principles, separation engineering, precision filtration, and adsorption refining technologies. It is specifically designed for recycling and purifying severely degraded insulating oils and other low-viscosity lubricating oils.
This equipment not only effectively removes gases, water, and impurities but also possesses the capability to eliminate free carbon from insulating oils, providing decolorization, acid removal, reduction in dielectric loss, and overall restoration of oil performance. The treated oil meets all national standards for water content, gas content, pH value, and acid value.
Edges
Technical Specifications:
Item | Unit | VFD-30 | VFD-50 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | ||
Vacuum Range | MPa | -0.092~~-0.099 | |||||||
Max Vacuum Range | Pa | ≤ 50 | |||||||
Working Pressure | MPa | ≤ 0.2 | |||||||
Temperature Range | ℃ | 45-65 | |||||||
Water Content | PPm | ≤ 4 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Breakdown Voltage | Kv | 75 | |||||||
Power Supply | V | ~50Hz 380V(or as needed) | |||||||
Working Noise | dB | ≤ 72 | ≤ 78 | ||||||
Heating Power | Kw | 30 | 48 | 90 | 120 | 180 | 240 | ||
Total Power | Kw | 33 | 52 | 95 | 126 | 186 | 248 | ||
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN40 | DN50 | DN65 | DN65 | ||
Net Weight | Kg | 350 | 480 | 750 | 1100 | 1250 | 1420 | ||
Size | length | Mm | 1500 | 1500 | 1900 | 2100 | 2400 | 2600 | |
width | Mm | 1100 | 1250 | 1400 | 1600 | 1700 | 1800 | ||
height | Mm | 1750 | 1750 | 1800 | 1900 | 1900 | 2000 |
Another types of our oil purifier machines
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
About us:
Sino-NSH is a China based company which engages in researching, developing and manufacturing oil purification systems. It implement products for purification, separation, dehydration and regeneration of industrial lubrication oils in transformer, turbine and other machineries, as well as reclamation all kinds of mineral oils with restoration of color and operational specifications. The products are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It s the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment. Nowadays, the company`s sales network covers all the provinces of China and exports to more than ten countries. NSH products are very popular in domestic market and foreign market based on High quality, advanced technology and excellent service. We think that the development of NSH is derived from talent of human,the survival of NSH is based on products quality, the innovation is the power of NSH s success, the management is the source of NSH s achievement. Our vision is to be a first class company in the world, we will work hard to pursue it step by step.
