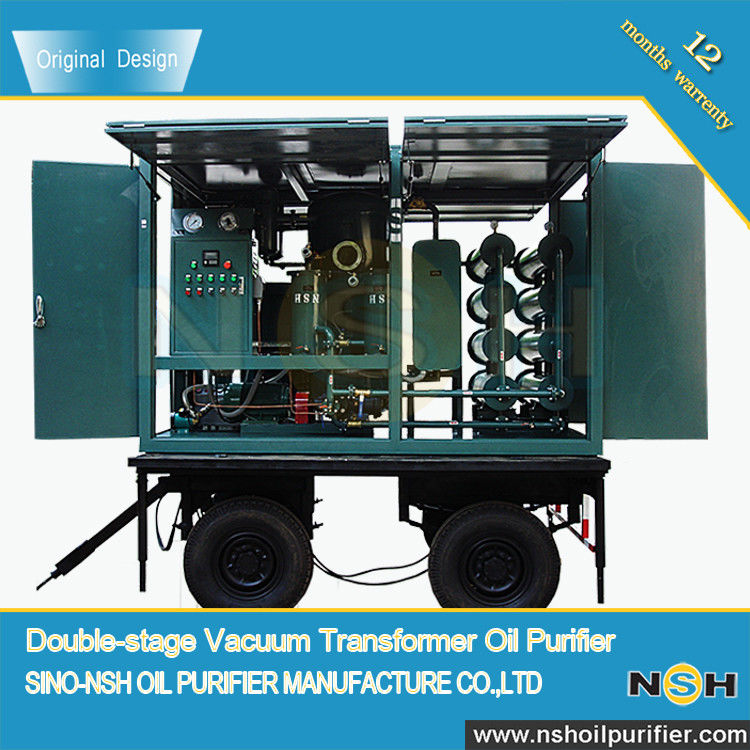

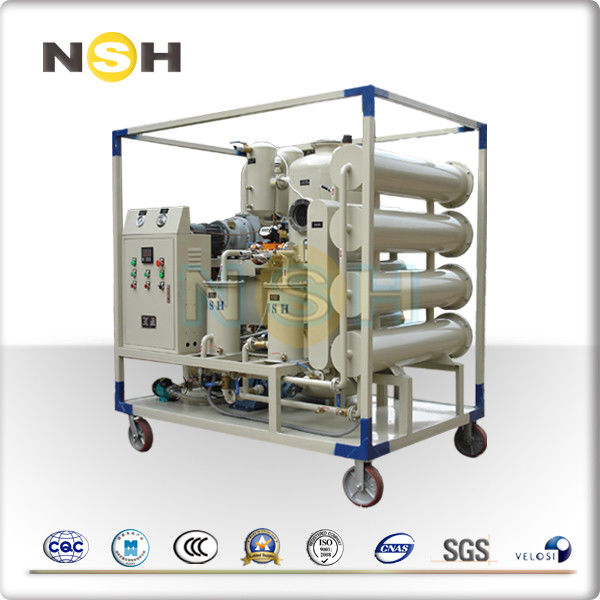

Stainless Steel Dehydrator Vacuum Oil Purifier For Treating Electrical Insulating Oil

Basic Information

Place of Origin:	China
Brand Name:	Sino-NSH
Certification:	CE ISO
Model Number:	VFD

Minimum Order Quantity:	one set
Price:	Negotiate
Packaging Details:	Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Function:	Dehydration, Degassing, Remove Impurities	Material:	Stainless Steel
Color:	Red	Power(w):	40-135Kw
Flow:	1800 L/h-18000L/h	Usage:	Transformer Oil,Insulation Oil
Highlight:	transformer oil purification machine , transformer oil filtration system

Dehydrator Vacuum Transformer Oil Purifier for Treating Electrical Insulating Oil

Quick detail

Vacuum oil purifiers are designed for use in treating electrical insulating oil in the oil-filled electrical equipment.Through the dehydrator, degasification, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed.

Technical Specification

Technical Specification
Item		Unit	VFD-30	VFD-50	VFD-80	VFD-100	VFD-150	VFD-200	VFD-300
Flow Rate		L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Range		Mpa	-0.092 ～ -0.099
Working Pressure		Mpa	≤0.2
Max Vacuum Range		Pa	≤50
Temperature Range		℃	45 ～ 65
Breakdown Voltage		Kv	≥75
Impurity Size		μm	≤5
Dielectric Loss		Tg	≤0.005
Interfacial Tension		mn/m	≥40
Water Content		PPM	≤4
Gas Content		%	≤0.1
Power Supply			380V/3P/50Hz(or as needed)
Working Noise		dB(A)	≤72				≤78
Heating Power		Kw	30	48	72	90	120	180	240
Total Power		Kw	35	54	77	98	129	189	254
Pipeline Diameter		mm	DN25	DN32	DN32	DN40	DN50	DN65	DN65
Net Weight		Kg	550	850	1000	1100	1400	1600	2200
Size	length	mm	1500	1500	1700	1900	2100	2100	2600
	width	mm	1200	1200	1500	1400	1550	1550	1800
	high	mm	1750	1750	1850	1800	1900	1900	2000

product application

Vacuum Transformer Oil Purifier is widely used for industries of power plant, power station, electricity company, transformer factory, metallurgy, petrochemical, mechanical engineering, transportation, railway and transformers manufacturing etc. Especially, it applies to maintenance of transformers above 110KV and deep purification of high grade new transformer oil, imported transformer oil, mutual inductor oil and ultra high voltage transformer oil. It can be also used for oil vacuum filling and vacuum drying as well as transformer vacuum evacuation operation. Moreover, the machine can be working online without stop of transformers.

product Features

Low moisture content at plant outlet.
Low gas/air content at plant outlet.
Elimination of residual gas from the insulation.
Drying of transformer insulation.
Easy and failsafe operation.
On-line measuring and recording of process parameters.
Flexibility in application (various oil types and oil volumes)

Stainless Steel Dehydrator Vacuum Oil Purifier For Treating Electrical Insulating Oil 0

structures and components transformer oil regeneration
