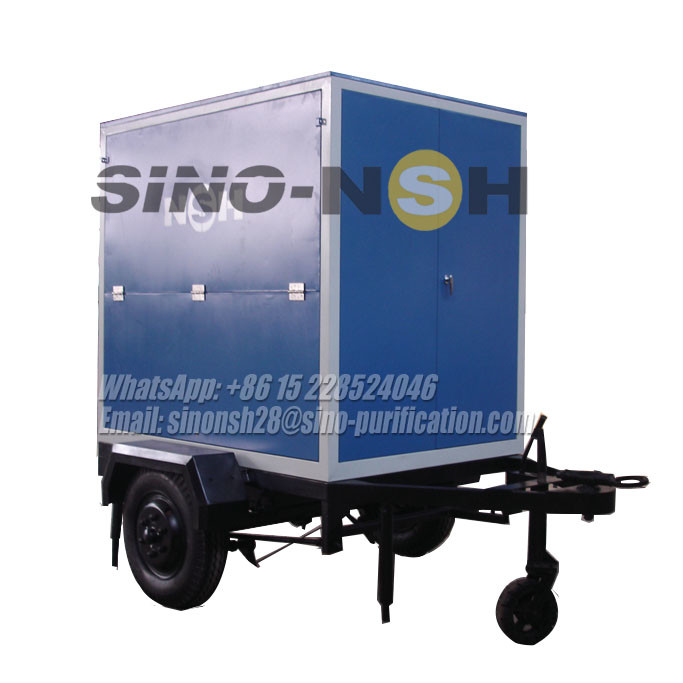

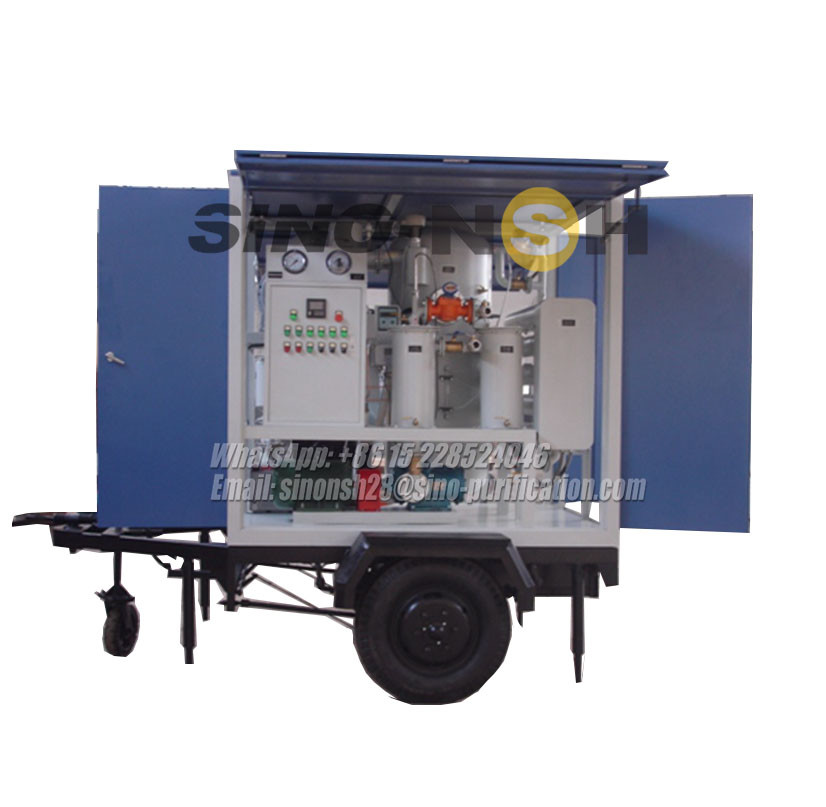

Outdoor Rainproof High Vacuum Transformer Oil Purifier Roadworthy Trailer Metal Enclosure

Outdoor Rainproof High Vacuum Transformer Oil Purifier Roadworthy Trailer Metal Enclosure

Applications

• The VFD series products are intelligent vacuum oil filters specially developed for insulating oil products. They are used for the purification and filtration of electrical insulating oil products such as transformer oil, insulating oil, switch oil, capacitor oil, and refrigeration oil.
• The purpose of the VFD series vacuum oil filtration treatment is to eliminate particles, moisture, gas and other pollutants in the oil, and to reduce the acid value. The key indicators of the oil such as dielectric strength, gas content, acid value, dielectric loss, etc. meet the corresponding specifications and requirements to ensure the safe operation of the user's electrical equipment.
• This product is widely used in the purification of oil products in the power supply, power generation, power transmission and transformation, power equipment manufacturing, power engineering, electrical equipment maintenance, power testing, electrical scientific research and other industries.
• The oil filter also has functions such as vacuuming, vacuum drying, online oil filtering, oil injection, and hot oil circulation, which can fully meet the various use requirements of users on site.
• The VFD vacuum oil filter is an independent oil purification and filtration system with a skid-mounted structure. It can be energized online circulation filtration, or it can be moved to the oil filtration point for offline oil filtration.
• In addition to reliable oil filtering and purification functions, the equipment can also conveniently switch valves for separate oil extraction, oil injection, oil replenishment, and other functions to meet various user requirements on site.

Functions

Sino-NSH vacuum oil filter is used to filter the insulating oil in the transformer. It removes moisture, gas, and impurities in the oil efficiently through degassing, dehydration, and precision filtration, and improves the voltage characteristics of the transformer insulating oil.

1. Oil heating.
2. Oil dehydration and degassing.
3. Solid particle removal.
4. Oil delivery.
5. Air vacuum from external equipment.

Features

1. Duel-stage extreme vacuum system: can completely and efficiently remove moisture and gas.
2. High-efficiency and high-power oil heating system: the heating temperature can be adjusted automatically on the touch screen.
3. Multi-stage high-precision filtration system: completely removes trace solid particles in the oil.
4. Equipped with a touch screen: integrated system control, data monitoring, operation manual viewing, system operation status viewing, alarm display, and other functions.
5. Adopt a highly secure alarm system and interlocking control: including power phase loss, phase error, overpressure, blockage alarm, etc., to ensure the automatic and safe operation of the machine.
6. Foam level detector: automatically removes oil foam during the oil filtration process, no need to be on duty, and it runs automatically.
7. Adopt PLC control: vacuum pump Roots pump oil pump heater interlocking control, and automatic start and stop.
8. Simple operation, suitable for novices with no operating experience.
9. With a vacuum connector: the oil filter can also be used as a vacuum pump system to vacuum equipment such as transformers.
10. The special vacuum tank is filled with fillers to increase the contact area and achieve a better dehydration effect.
11. The filter uses a single large-volume filter element with high filtration accuracy, large dirt-holding capacity, and long service life.

VFD transformer oil purification machine optional modes

1. According to user needs, PLC intelligent control, touch screen operation, and dynamic display can be selected.
2. Optional online moisture detector, particle detector, and instantaneous & cumulative flow meter.
3. The whole machine structure can be made into mobile, fixed, trailer (single-axle or double-axle), fully enclosed, eaves, canvas shed, or open type.
4. A special decolorizing optimized fuller earth is used to remove the color of dark-aged transformer oil and regenerate it into a color similar to that of new oil.

Materials

1. Carbon steel
2. Customized: 304 stainless steel and 316 stainless steel available

Advantages

1. Double-stage vacuum with large pumping speed and advanced dehydration and degassing system adopts large-area three-dimensional flash evaporation technology, which can quickly and efficiently remove moisture, impurities, hydrocarbons, and other harmful components in the oil, and improve the flash point and Dielectric strength.
2. It can meet the needs of vacuuming and vacuum oiling the transformer body at the installation or maintenance site.
3. A sophisticated filtration system, high-quality filter element, and multi-stage filtration step-by-step encryption can effectively remove mechanical impurities in the oil.
4. Advanced automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system, and sophisticated configuration ensure high-performance operation of the equipment.
5. Highly automatic, can be unattended, and the operating status is displayed by the indicator light.
6. The machine has humanized design, low noise, simple operation, long maintenance interval, low energy consumption, and low operating cost.
7. The whole machine is equipped with interlocking safety protection, and the oil discharge system, vacuum system, and heating system are interlocked to avoid adverse effects caused by misoperation.
8. Equipped with leakage and overload shutdown devices to protect the motor.

Parameter

What You’ll Get After Your Inquiry

1. Formal quotation with price, product and accessories list, and warranty.
2. Technical details including specs sheet, machine detailed introduction, 3D model, flow chart, and reference pictures.
3. Configuration details.
4. Reference videos.

Delivery

1. Wooden case
2. Factory inspection.
3. FOB, CIF, EXW, etc price terms available.
4. 15-30 working days prepared at our factory.
5. 12-month warranty and lifelong after-sale services.
6. Manual book with structure diagram, operation, and maintenance instructions.
7. Instruction Video.
