Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour
Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour
Basic Information
Place of Origin: China
Brand Name: Sino-NSH
Certification: CE, ISO
Model Number: VFD
Minimum Order Quantity: 1
Packaging Details: Wooden Case
Delivery Time: 15-25 Working Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30 Per Month
Get Best Price Contact Now
Color: Light Grey (Customizable) Capacity: 1800, 3000, 4000, 6000, 12000, 18000l/h
Power Supply: 380V/50Hz/3P (Customizable) Dielectric Strength: ≥75kV
Applicable Media: Insulating Oil (Mineral Oil, Synthetic Oil, Vegetable Oil) Function: Water, Gas, Solids Removal, Dielectric Strength Improvement
Water Removal: ≤5PPM Gas Removal: ≤0.1%
Filtration Fineness: 1 To 5 μm Heating Temperature: 20 To 80 ℃ (Adjustable)
Optional Function: Acid, Color, Colloid Removal (Oil Regeneration) Cofiguration: Luxury Or Standard As Per Your Requirements

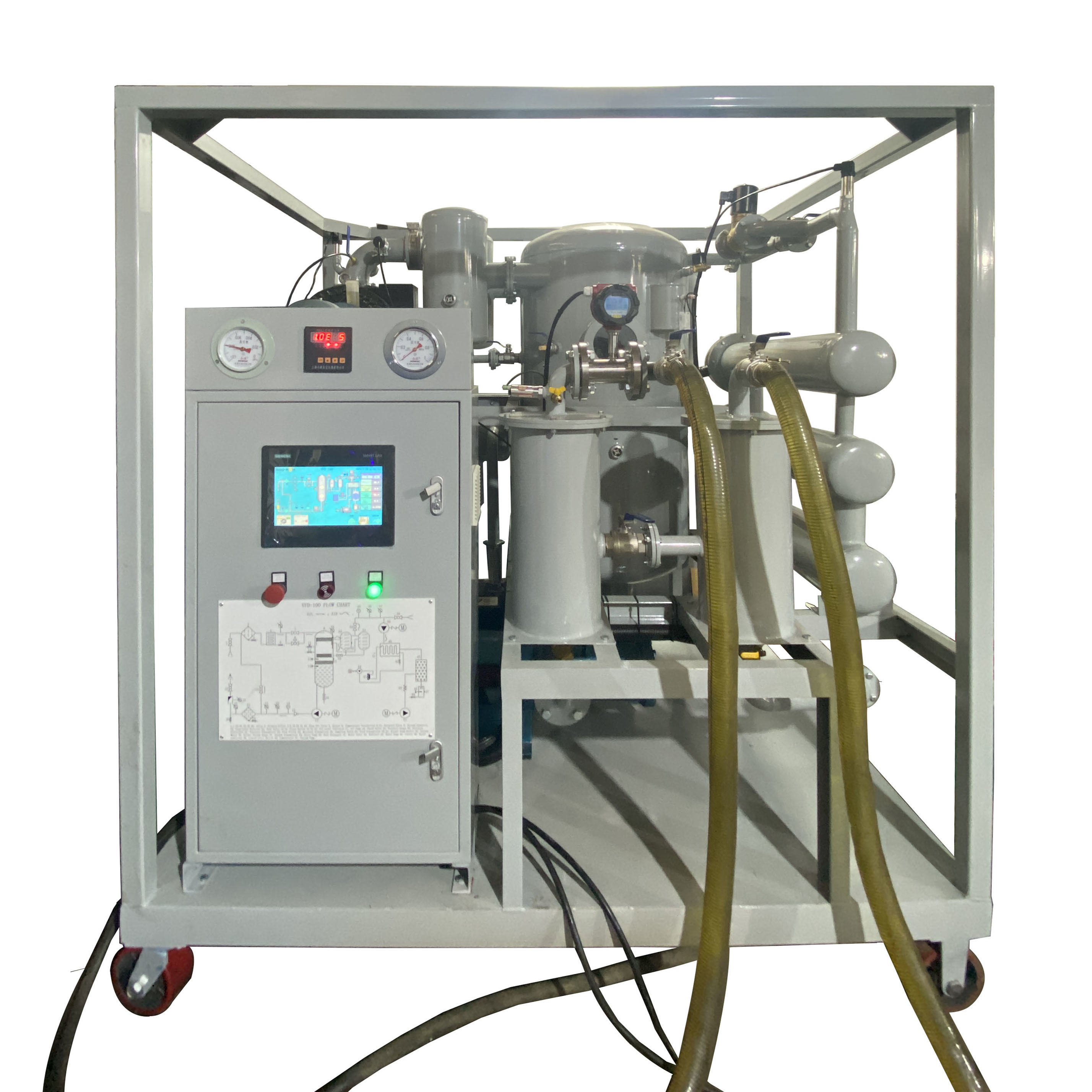

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour


1. Function

Sino-NSH vacuum oil filter is used to filter the insulating oil in the transformer. It removes moisture, gas, and impurities in the oil efficiently through degassing, dehydration, and precision filtration, and improves the voltage characteristics of the transformer insulating oil.



2. Features

  1. Duel-stage extreme vacuum system: can completely and efficiently remove moisture and gas.
  2. High-efficiency and high-power oil heating system: the heating temperature can be adjusted automatically on the touch screen.
  3. Multi-stage high-precision filtration system: completely removes trace solid particles in the oil.
  4. Equipped with a touch screen: integrated system control, data monitoring, operation manual viewing, system operation status viewing, alarm display, and other functions.
  5. Adopt a highly secure alarm system and interlocking control: including power phase loss, phase error, overpressure, blockage alarm, etc., to ensure the automatic and safe operation of the machine.
  6. Foam level detector: automatically removes oil foam during the oil filtration process, no need to be on duty, and it runs automatically.
  7. Adopt PLC control: vacuum pump Roots pump oil pump heater interlocking control, and automatic start and stop.
  8. Simple operation, suitable for novices with no operating experience.
  9. With a vacuum connector: the oil filter can also be used as a vacuum pump system to vacuum equipment such as transformers.



3. Equipped With Measuring Instruments

  1. Temperature transmitter
  2. Pressure transmitter
  3. Vacuum transmitter
  4. Pressure controller
  5. Foam detector



4. Optional Additional Accessories
Online measuring instruments

  1. Micro-water tester
  2. Flow meter
  3. Particle counter
  4. Pirani vacuum gauge

Others:

  1. Rainproof and dustproof metal cover
  2. Dual pneumatic tire long-distance transport trailer
  3. Quadruple pneumatic tire long-distance transport trailer

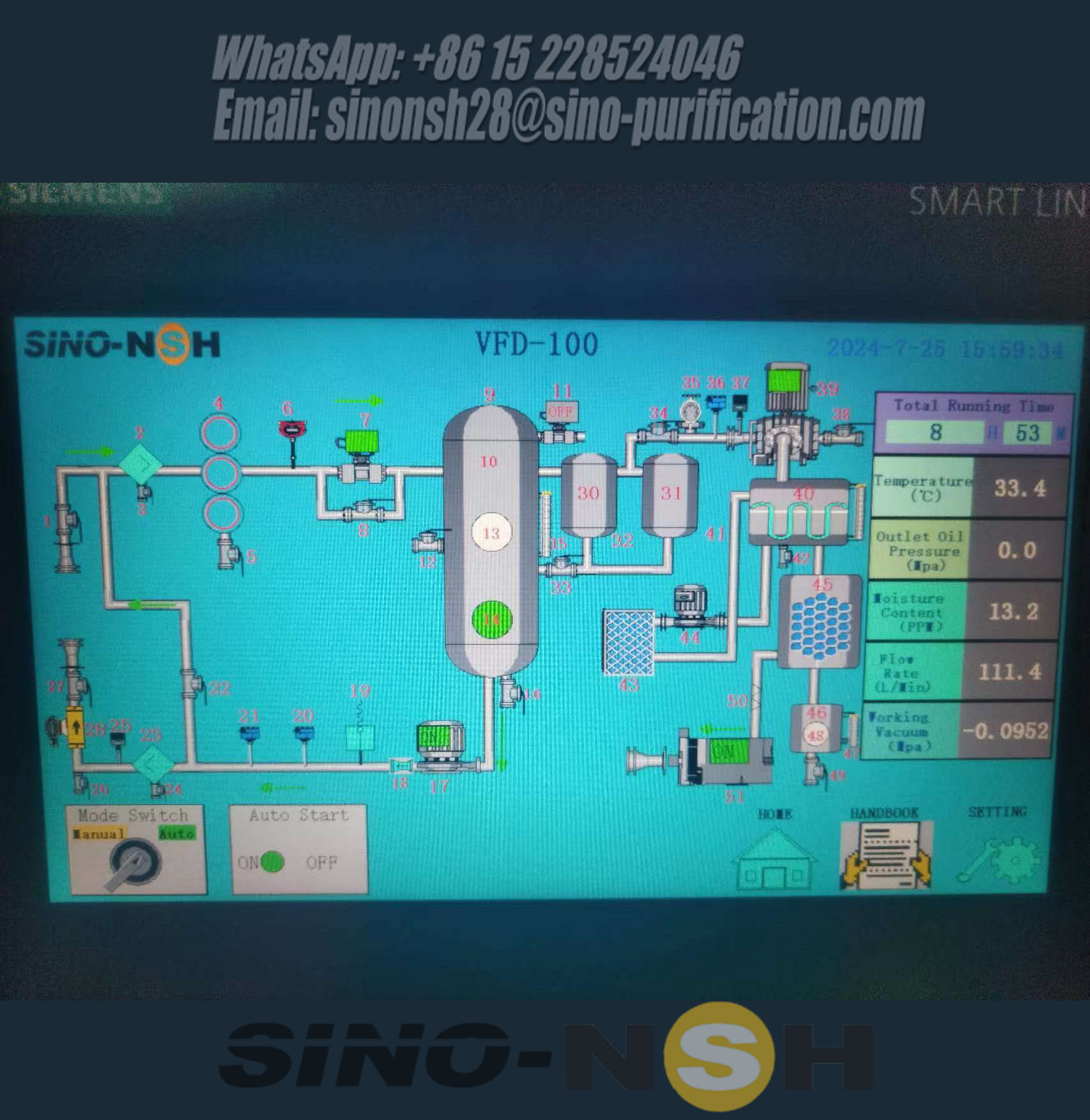

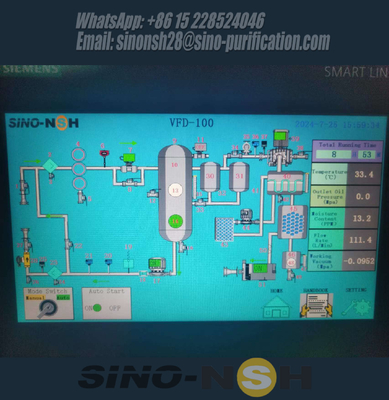

5. Touch Screen Details

  1. Auto mode and manual mode switch
  2. System operation and date inspection
  3. Alarm display and control
  4. System running status indication
  5. Operation handbook

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 0



6. Parameter



Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-200
Capacity, liters/hour 1800 3000 4000 6000 12000
Heating Power, kW 24 30 48 60 120
Total Power, kW 29 36 56 69 132
Power supply Fully Customizable
Inlet Diameter, mm 25 32 40 40 40
Outlet Diameter, mm 25 32 40 40 40
Dimensions length, mm 1300 1500 1500 1800 2400
width, mm 900 1200 1200 1400 160
height, mm 1700 1700 1800 1800 1900
Weight, kg 600 700 800 900 1500
Processed Oil Spec

Water Content,

ppm

 ≤5

Dielectric Strength,

Kv

 ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )

Gas Content, %

 ≤0.1



7. What You’ll Get After Your Inquiry

  1. Formal quotation with price, product and accessories list, and warranty.
  2. Technical details including specs sheet, machine detailed introduction, 3D model, flow chart, and reference pictures.
  3. Configuration details.
  4. Reference videos.



8. Structure Instruction

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 1

9. Delivery

  1. Wooden case
  2. Factory inspection.
  3. FOB, CIF, EXW, etc price terms available.
  4. 15-30 working days prepared at our factory.
  5. 12-month warranty and lifelong after-sale services.
  6. Manual book with structure diagram, operation, and maintenance instructions.
  7. Instruction Video.

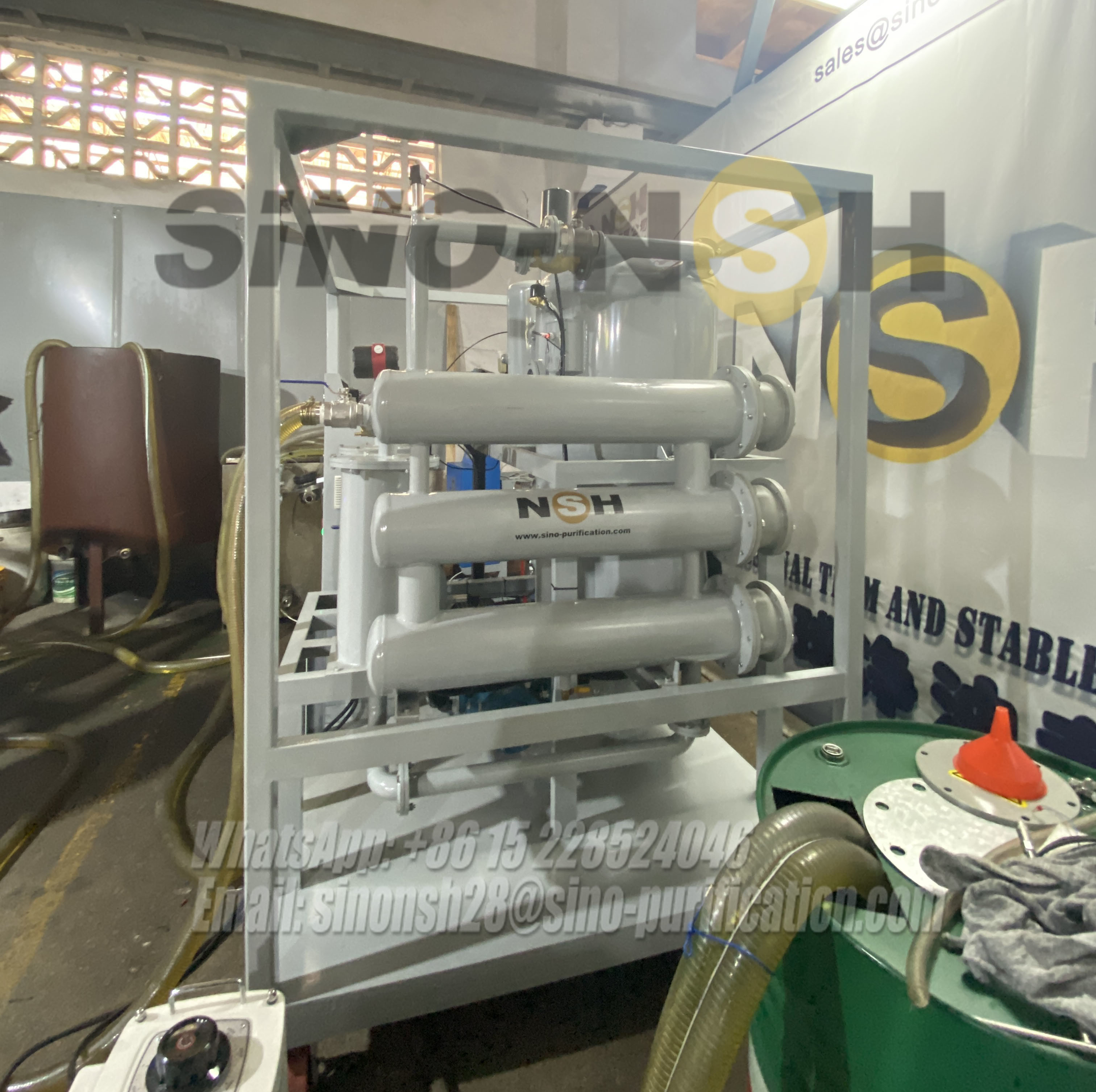

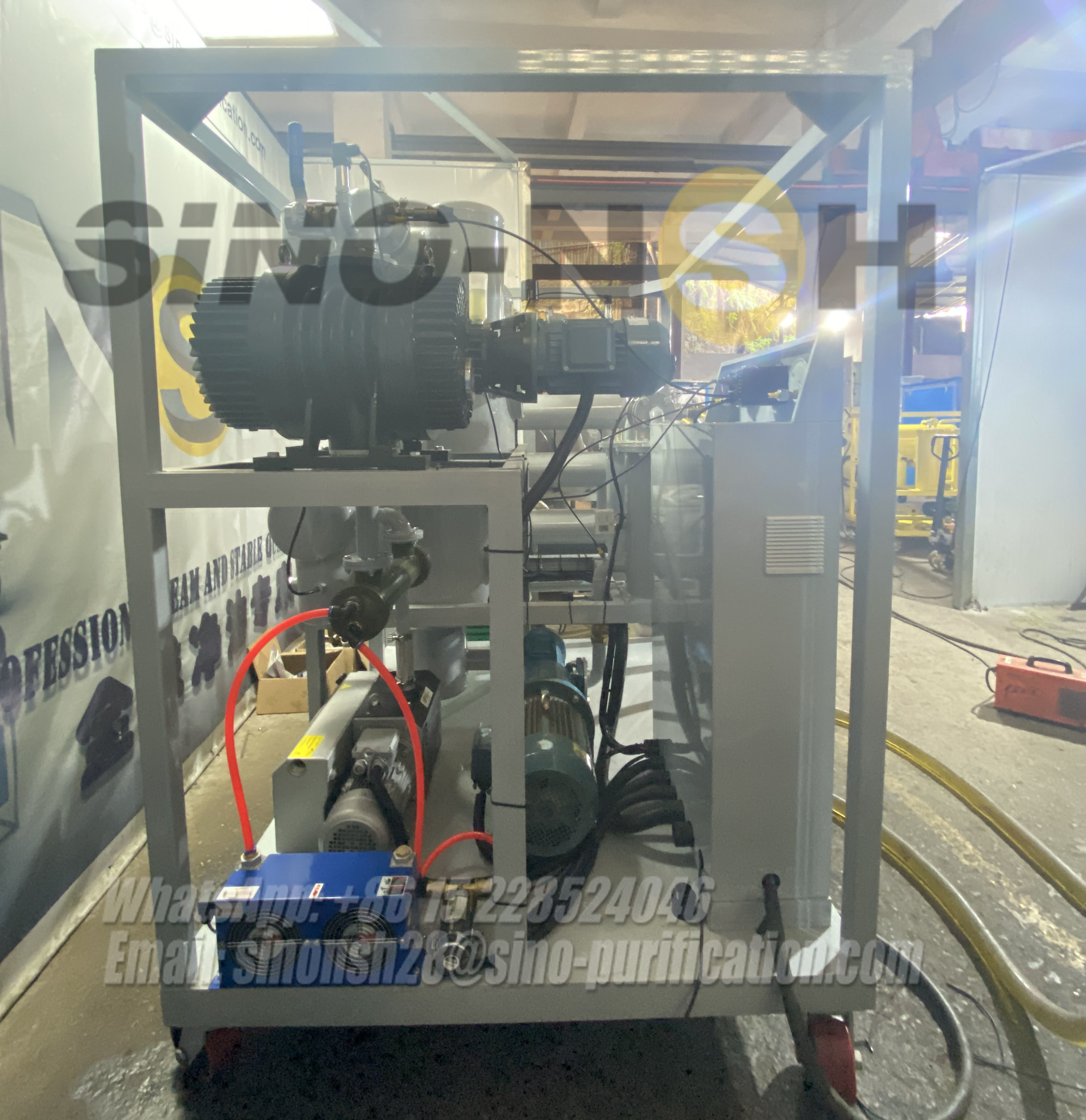

10. Pictures



Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 2



Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 3

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 4

Fully Automatic Transformer Oil Purifier With Touch Screen 1800 To 18000 Liter Per Hour 5



11. Matching Equipment

  1. Vacuum pump system
  2. Air dry generator
  3. Breakdown voltage tester
  4. SF6 gas recovery and charging device
