Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE,ISO |
Model Number: | VFD-30 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Container Package. install at site |
Delivery Time: | 20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set per month |
Name: | Vacuum Transformer Oil Filtration Machine | Capacity: | 600-18000Liters Per Hour |
---|---|---|---|
Working Temperature: | 0 ~ 80 | Working Pressure: | -0.09MPa |
Heating Source: | Electric | Final Products: | Clean Oil |
Voltage: | 380V,220~415V,380v/50hz,220V,380v/50hz And As Your Option | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,No Overseas Service Provided,Online Support |
High Light: | Dehydration Vacuum Transformer Oil Filtration Machine,1800L/h Vacuum Transformer Oil Filtration Machine,Vacuum Transformer Oil Filtration Machine 220V |
1800L/h Dehydration Vacuum Transformer Oil Filtration Machine Treatment Plant
Introduction
Transformer Oil Purifier is developed for transformer oil degasification, dehydration and filtration processing on site at outside. The Purification Process of VFD Transformer Oil Purifier is able to maintain complete cleanness and improve dielectric strength of insulating oil.
Function
The main oil filtration function of mobile type series of single and double stage high-efficient vacuum oil purifier is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformer. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.
Technical Specification | |||||||||
Item | Unit | VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | -0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤0.2 | |||||||
Max Vacuum Range | Pa | ≤50 | |||||||
Temperature Range | ℃ | 45 ~ 85 | |||||||
Breakdown Voltage | Kv | ≥75 | |||||||
Impurity Size | μm | ≤5 | |||||||
Dielectric Loss | Tg | ≤0.005 | |||||||
Interfacial Tension | mn/m | ≥40 | |||||||
Water Content | PPM | ≤4 | |||||||
Gas Content | % | ≤0.1 | |||||||
Power Supply | 380V/3P/50Hz(or as needed) | ||||||||
Working Noise | dB(A) | ≤72 | ≤78 | ||||||
Heating Power | Kw | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power | Kw | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Pipeline Diameter | mm | DN25 | DN32 | DN32 | DN40 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Size | length | mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
width | mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
high | mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |

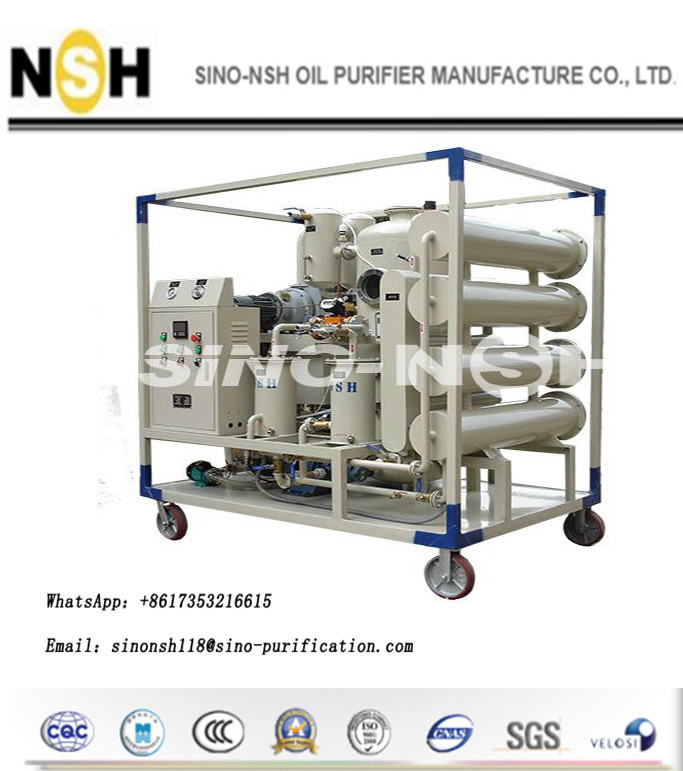

Machine Show
