Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE ISO |
Model Number: | VFD-50 |
Minimum Order Quantity: | 1 set |
Price: | Negotiate |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 15-25 working days for OEM |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Name: | Vacuum Transformer Oil Filtration Machine 3000L/h Dehydration Plant | Flow: | 1800 L/h-18000L/h |
---|---|---|---|
Certification: | CE ISO,ISO9001,SGS,CE/ ISO,BV | Working Pressure: | Lower Than 0.5 Mpa |
Usage: | Transformer Oil,Lubricant Oil,Insulation Oil,Industrial Oil Filtrator | Warranty: | 1 Year |
Function: | Transformer Oil Purification,Degases And Removes The Impurities,Degassing,Dewaters | Color: | Customizable |
Breakdown Voltage: | ≥75KV | Heating Power: | 30~192Kw |
High Light: | Dehydration Plant Transformer Oil Purifier,Vacuum Transformer Oil Filtration 3000L/h,192 Kw Vacuum Transformer Oil Filtration |

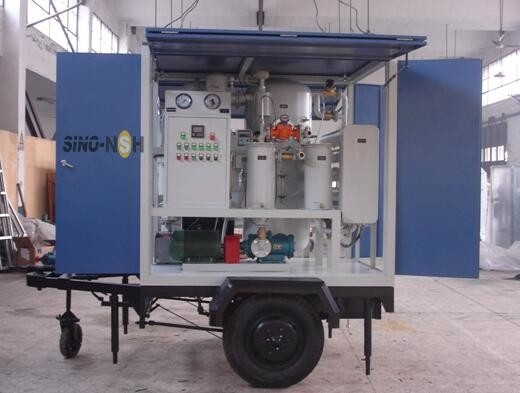

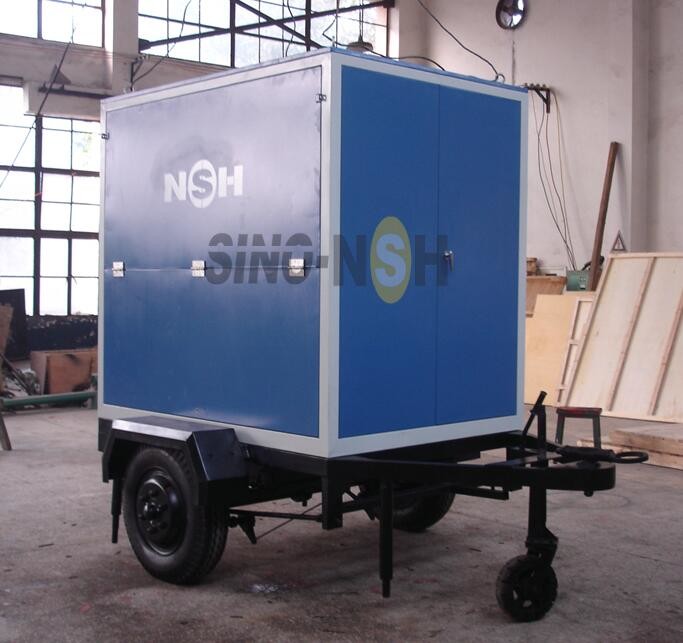

Vacuum Transformer Oil Filtration Machine 3000L/h Dehydration Plant
Product Introduction:
VFD series insulating oil double stage vacuum oil filter is designed innovatively by absorbing the advanced technology of similar products at home and abroad, and has excellent cost performance. In the oil treatment process and equipment performance in the leading level, set vacuum flash drying technology and "step by step" filtration technology in one. It has the advantages of high vacuum degree, fast oil filtration speed and oil quality protection. It can remove the water, impurities, hydrocarbons and other harmful gases in the oil more efficiently, improve the flash point and pressure strength of insulating oil. It is mainly used for the purification treatment of high voltage and ultra-high voltage power oil, and can increase the breakdown voltage of oil above 35KV at a time. The parallel USE of regenerative devices can accelerate acid removal, decolorization, reduce dielectric loss, acid value, and further improve the insulation strength of oil.
Technical Specifications:
Item | Unit | VFD-30 | VFD-50 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | ||
Vacuum Range | MPa | -0.092~~-0.099 | |||||||
Max Vacuum Range | Pa | ≤ 50 | |||||||
Working Pressure | MPa | ≤ 0.2 | |||||||
Temperature Range | ℃ | 45-65 | |||||||
Water Content | PPm | ≤ 4 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Breakdown Voltage | Kv | 75 | |||||||
Power Supply | V | ~50Hz 380V(or as needed) | |||||||
Working Noise | dB | ≤ 72 | ≤ 78 | ||||||
Heating Power | Kw | 30 | 48 | 90 | 120 | 180 | 240 | ||
Total Power | Kw | 33 | 52 | 95 | 126 | 186 | 248 | ||
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN40 | DN50 | DN65 | DN65 | ||
Net Weight | Kg | 350 | 480 | 750 | 1100 | 1250 | 1420 | ||
Size | length | Mm | 1500 | 1500 | 1900 | 2100 | 2400 | 2600 | |
width | Mm | 1100 | 1250 | 1400 | 1600 | 1700 | 1800 | ||
height | Mm | 1750 | 1750 | 1800 | 1900 | 1900 | 2000 |
About us:
We are the leading manufacture 30years experience and supply best quality and highest cost performance oil purification machines. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
