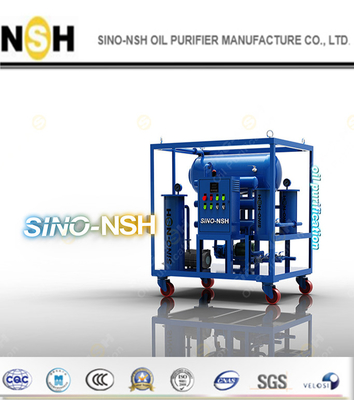

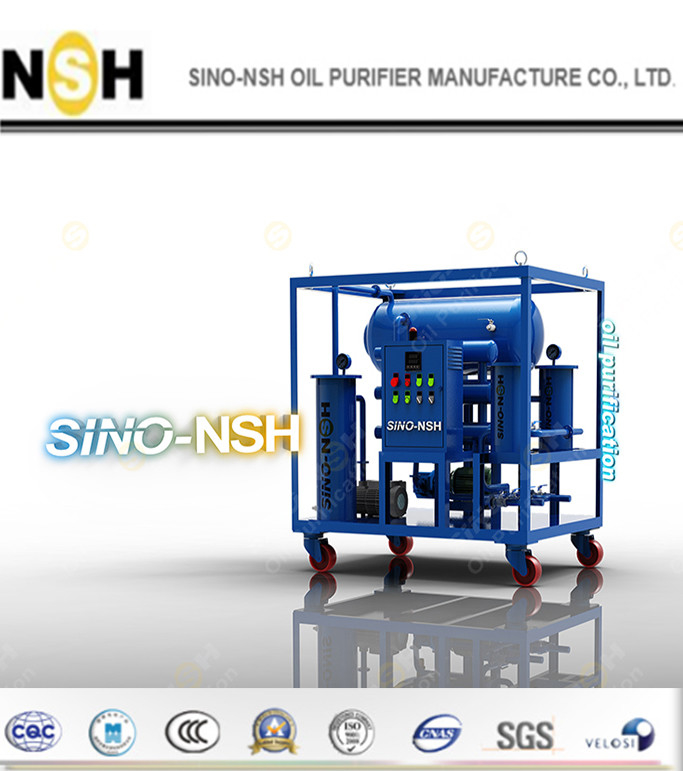

Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW

Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW
Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VFD-100
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Power: 69kW Capacity: 6000L/H
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Dehydration Used Transformer Oil Purifier

,

Dehydration Transformer Oil Purifier 6000L/H

,

69 kW Dehydration Transformer Oil Purifier

Dehydration 6000L/H Used Transformer Oil Double-Stage Vacuum Oil Purifier



Company Introduction



We come from Sino-NSH oil purifier Manufacture Company in China, which is a high-tech enterprise specializing in research, development, manufacturing and net oil equipment. Founded in 1992, our company has 30 years of professional manufacturing experience. We often cooperate with ABB,SIEMENS,TBEA, State Grid and other enterprises, and become the first choice of many distributors and end customers with excellent quality and service.





What is Oil Purifier?



Oil purifier is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil purifieris mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.



Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW 0









Double-Stage Vacuum Transformer Oil Purifier Technical Parameters:



Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Capacity, liters/hour 1800 3000 4000 6000 9000 12000 18000
Heating Power, kW 24 30 48 60 90 120 150
Total Power, kW 29 36 56 69 100 132 170
Power supply Fully Customizable
Inlet Diameter, mm 25 32 32 40 40 50 65
Outlet Diameter, mm 25 32 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1350 1500 1550 1900 2200 2400 2900
width, mm 1100 1200 1250 1400 1500 1600 1800
height, mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer), kg 600 800 900 1150 1500 1700 2400
Processed Oil Spec

Water Content,

ppm

 ≤5

Dielectric Strength,

Kv

 ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )

Gas Content,

%

 ≤0.1




Dehydration Used Transformer Oil Purifier Double Stage Vacuum 6000L/H 69kW 1
