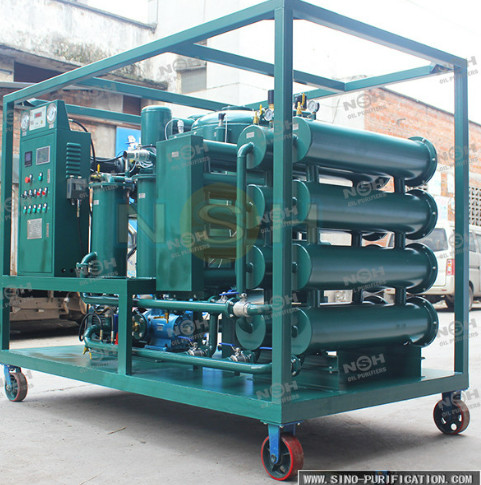

Impurities Removal Transformer High Vacuum Oil Purifier Rustproof

Impurities Removal Transformer High Vacuum Oil Purifier Rustproof
Impurities Removal Transformer High Vacuum Oil Purifier Rustproof Impurities Removal Transformer High Vacuum Oil Purifier Rustproof Impurities Removal Transformer High Vacuum Oil Purifier Rustproof
Basic Information
Place of Origin: China
Brand Name: Sino-NSH
Certification: CE ISO
Model Number: VFD
Minimum Order Quantity: 1 set
Packaging Details: Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks
Delivery Time: 10 waorking days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Color: As Your Requirements Warranty: 1 Year
Material: Stainless Steel Function: Dehydration, Degassing, Remove Impurities
Application: Waste Oil Refinery Equipment, Lubricating Oil, Turbine Oil, Hydraulic Oil, Transformer Oil Purifier Name: Vacuum Oil Purifier, Transformer Oil Purifier, More Reliable Vacuum Used Transformer Oil Purifier
Heating Method: Electricity, Directly Heating, Indirect Heating Type: Vacuum Oil Purifier, Used Oil Distillation, Oil Distilling, Vacuum Distillation
Highlight:

High Vacuum Oil Purifier Rustproof

,

vacuum transformer oil purifier ODM

,

Impurities Removal High Vacuum Oil Purifier



Impurities Removal Oil Purification Oil Treatment Oil Fitration Oiu Treament High Vacuum Oil Purifier



I. Transformer Oil Centrifuge Machine Application
NSH VFD series oil purifier is mainly used to improve the properties of insulation oil by removing trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly. It is suitable for purifying branded oil, insulating oil of high voltage and super high voltage transformer.


II. Description

VF series oil purifier-- Single-Stage Vacuum Insulation Oil Filtration Machine

VFD series oil purifier-- Double-Stage Vacuum Insulation Oil Filtration Machine

VFD-R series oil purifier-- Double-Stage Vacuum Insulation Oil Regeneration Filtration Machine



NSH VFD series oil purifier adopts condensation technology, condensation technology, separation technology and refining purification technology. Compared with VF series, it adds ROOTS vacuum system, second stage separation system to improve purification effect. Effectively and quickly removes free, soluble water, carbon, free and dissolved gases, and particulate matter from insulating oil.
In order to deal with the aging transformer oil and the deteriorated transformer oil, we recommend the VFD-R series oil purifier to regenerate it.


III. Features

  • Low moisture content at plant outlet.
  • Low gas/air content at plant outlet.
  • Elimination of residual gas from the insulation.
  • Drying of transformer insulation.
  • Easy and failsafe operation.
  • On-line measuring and recording of process parameters.
  • Flexibility in application (various oil types and oil volumes)

IV. Available Style
1. Fixed type, four-wheel mobile type and trailer mobile type.
2. Normal appearance type, shelf covered type, explosion-proof type.
3. Different colors are available.



V. Technical Specification



Technical Specification
Item Unit VFD-30 VFD-50 VFD-80 VFD-100 VFD-150 VFD-200 VFD-300
Flow Rate L/H 1800 3000 4800 6000 9000 12000 18000
Vacuum Range Mpa -0.092 ～ -0.099
Working Pressure Mpa ≤0.2
Max Vacuum Range Pa ≤50
Temperature Range ℃ 45 ～ 65
Breakdown Voltage Kv ≥75
Impurity Size μm ≤5
Dielectric Loss Tg ≤0.005
Interfacial Tension mn/m ≥40
Water Content PPM ≤4
Gas Content % ≤0.1
Power Supply 　 380V/3P/50Hz(or as needed)
Working Noise dB(A) ≤72 ≤78
Heating Power Kw 30 48 72 90 120 180 240
Total Power Kw 35 54 77 98 129 189 254
Pipeline Diameter mm DN25 DN32 DN32 DN40 DN50 DN65 DN65
Net Weight Kg 550 850 1000 1100 1400 1600 2200
Size length mm 1500 1500 1700 1900 2100 2100 2600
width mm 1200 1200 1500 1400 1550 1550 1800
high mm 1750 1750 1850 1800 1900 1900 2000



VI. Relative Series:



VFD series  oil purifier: Insulation oil purifier System specialize in purifying branded oil, insulation oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
TF series  oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series  oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series  oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series  oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.



Impurities Removal Transformer High Vacuum Oil Purifier Rustproof 0Impurities Removal Transformer High Vacuum Oil Purifier Rustproof 1
