Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VFD-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Features: | High Vacuum Degree, Fast Oil Filtration Speed, VFD Series Insulating Oil Two-stage Vacuum Oil Filter Is Innovatively Designed On The Basis Of Absorbing The Advanced Technology Of Similar Products At Home And Abroad, With Excellent Cost Performance. It Is A | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
---|---|---|---|
Product Capacity: | 6000L/h | Color: | Custom |
Product Power: | 69kW | Material: | Stainless Steel/Carbon Steel |
Warranty: | 1years | After Warranty Service:: | Video Technical Support, Online Support |
High Light: | Model VFD Transformer Oil Purifier,transformer oil purification Vacuum,6000L/H transformer oil purification machine |

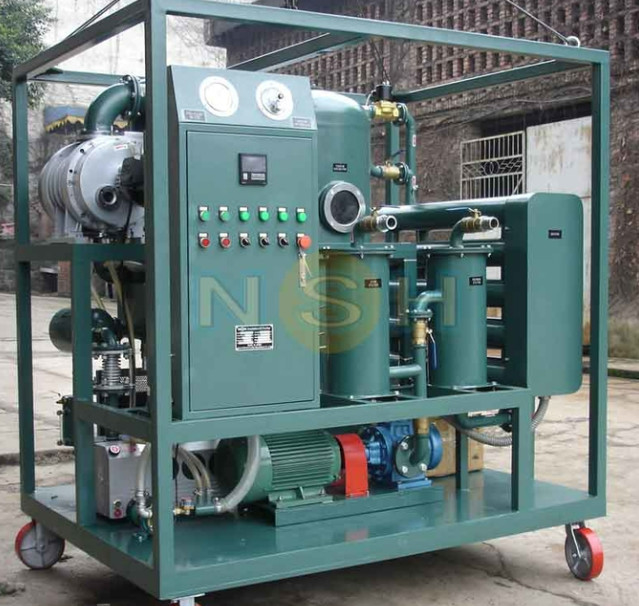

6000Lit/H Mobile Double-Stage High-Efficiency Vacuum Insulation Oil Purifier Model VFD
Product Introduction:
VFD series insulating oil two-stage vacuum oil filter is innovatively designed on the basis of absorbing the advanced technology of similar products at home and abroad, with excellent cost performance. It is at the leading level in oil treatment process and equipment performance, integrating vacuum flash drying technology and "step-by-step" filtration technology. The utility model has the advantages of high vacuum degree, fast oil filtering speed, oil quality protection, etc. It can more effectively remove water, impurities, hydrocarbons and other harmful gases in the oil, and improve the flash point and pressure strength of insulating oil. It is mainly used for the purification treatment of high voltage and ultra-high voltage power oil, which can increase the breakdown voltage of oil to more than 35KV at one time. Parallel use of regeneration devices can accelerate acid removal, decolorization, reduce dielectric loss, acid value, and further improve the insulation strength of oil.
Product Advantage:
1)Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.
2)Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
3)Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.
4)ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies. ino-NSH-VFD maintains optimized structure and safe controls so as to meet comprehensive requirement of ansformer manufacturers and service companies.
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
Transformer Oil Filtration Plant Technical Parameters:
Parameters | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Capacity, liters/hour | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power, kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 | |
Total Power, kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 | |
Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
Dielectric Strength, Kv | ≥75 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Gas Content, % | ≤0.1 |
