Place of Origin: | CHINA |
---|---|
Brand Name: | Sino-NSH |
Certification: | ISO,CE, SGS, SASO |
Model Number: | VF-50 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 20 working days |
Supply Ability: | 50 sets per month |
Name: | Transformer Oil Purifier | Capacity: | 600 ~ 6000 Liters/hour |
---|---|---|---|
Working Principle: | Transformer Oil Purifier, Oil Regeneration | Additional Function: | Transformer Vacuuming |
Power Supply: | As Needed | Service Provided: | Engineers Available To Service Machinery Overseas |
Service: | Customizable | Operating Voltage: | 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz),etc. |
High Light: | 3000LPH Transformer Oil Purifier,380V transformer filtration systems,Vacuum Mobile Transformer Oil Purifier |

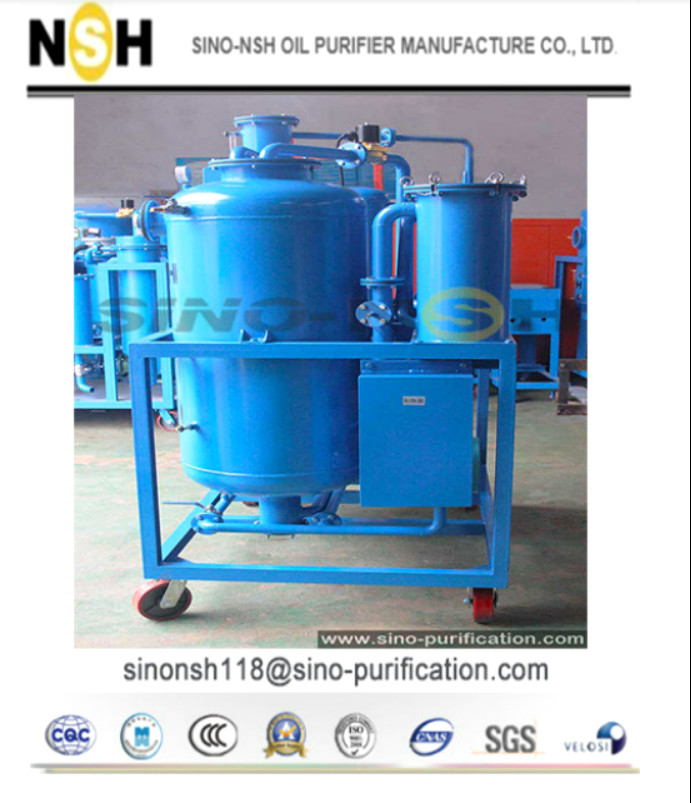

3000LPH Mobile Transformer Oil Purifier / Vacuum Oil Purifier High Precision
General
SINO-NSH-VF series single-stage vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.
Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Benefits of Transformer Oil Purifier
1. Removes Dissolved Moisture Transformer Oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability
Oil Data After Purification
Dielectric Strength (BDV) |
kV | ≥60 |
Water Content | ppm | ≤7 |
Gas Content | % | ≤0.1 |
Impurity Size | μm | ≤5 |
Machine Specification
Parameter | Value | |||||
VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 9 | 15 | 24 | 36 | 60 | |
Total Power, kW | 11 | 17 | 26 | 39 | 65 | |
Power Supply | Fully customizable ** | |||||
Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Dimensions (without trailer) |
length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
width, mm | 900 | 900 | 900 | 900 | 1550 | |
height, mm | 1300 | 1300 | 1300 | 1700 | 1850 | |
Weight (without trailer), kg | 300 | 330 | 350 | 400 | 650 |
** Operating voltage: 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz), 415 V (60 Hz), 220 V (60 Hz), 460 V (60 Hz), etc (customizable)
** The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
** The heating power and total power are different with different capacity, please consult sales for more.
About us:
►We are the leading manufacture near 30 years experience and supply best quality and highest cost performance oil purification machines. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you.
