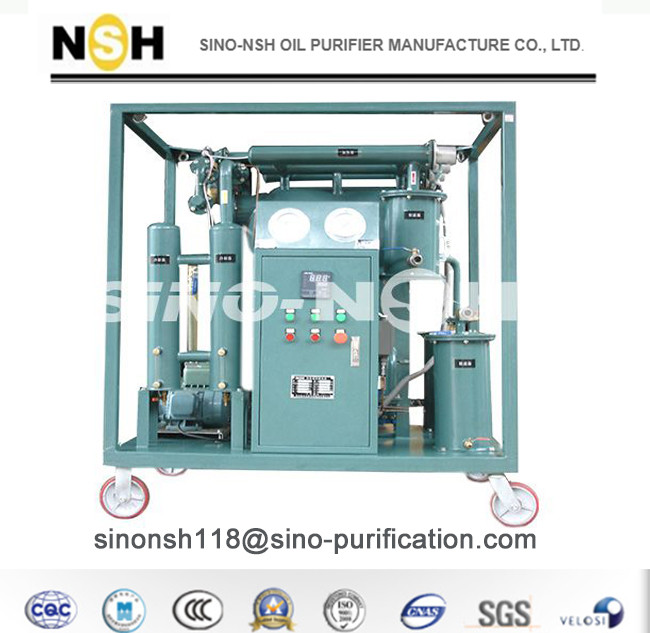

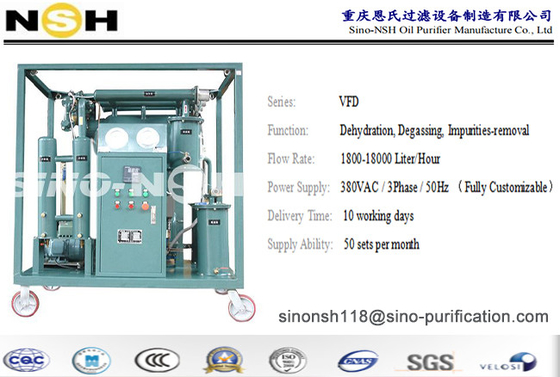

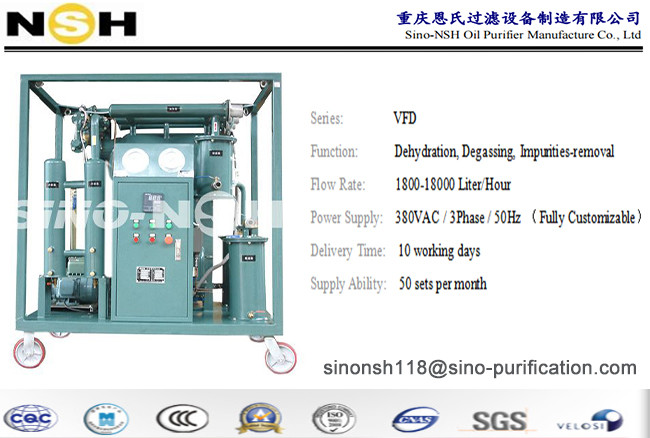

36Kw 3000L/ H Portable Vacuum Dehydration Oil Purification System Customizable

3000L/H Vacuum Transformer Portable Oil Purifier Mobile System 36Kw Double Stage

Product Introduction:

VFD series insulating oil double stage vacuum oil filter is designed innovatively by absorbing the high quality technology of similar products at home and abroad, and has excellent cost performance. In the oil treatment process and equipment performance is at a high level, with high working vacuum, fast oil filtration speed, oil quality protection and other advantages, mainly used for high voltage and ultra-high voltage power oil purification treatment, can increase the breakdown voltage of oil above 35KV.
VFD series insulating oil two-stage vacuum oil filter integrates vacuum flash drying technology, COALescence separation technology and "step by step dense" filtration technology. This series of two-stage vacuum system can more efficiently remove water, impurities, hydrocarbons and other harmful gases in the oil, improve the flash point and pressure strength of insulating oil, and use in parallel with the waste oil regeneration device can accelerate acid removal, decolorization, reduce dielectric loss, acid value, so as to further improve the insulation strength of oil. In addition, it can also be configured as a three-stage high vacuum oil filter for users to obtain a higher vacuum degree, to meet your higher oil processing requirements.


Technical Characteristics:


1. The machine adopts multistage cartridge filter, which has strong ability to filter impurities. Coarse filter selection of large flow cleaning filter element, high filtration efficiency, can remove a large number of impurities in the oil; Precision filter element, using "step by step" technology, high filtering precision, large scale capacity, high strength, long life, can remove fine particles in oil; The machine is designed with automatic backwashing function, which not only improves the continuous working time of the equipment, but also ensures the service life of the filter element.
2. The water separation device adopts high quality coalation separation technology, the use of unique stainless steel folding swirling degassing dehydration separation tower, quickly and efficiently remove water; Self-developed jet degassing device can effectively remove the mixed trace gas in the oil; The automatic condensate water separation system is equipped with a strong wind cooler to quickly condense and separate a large amount of water vapor and other gases discharged from the vacuum, so as to achieve a high quality separation effect.
3. The use of corrosion resistance, high temperature resistance, high mechanical strength of the high quality filter elements and connection sealing materials, to meet the filtration of high viscosity lubricating oil temperature requirements; Imported water ring vacuum pump, coolant (or water) as the lubrication medium, not afraid of gas into the vacuum pump, to avoid the selection of oil as the medium of rotary vane vacuum pump often oil change distress.
4. The use of new heating device, heating load is low, avoid oil aging.
5. The blowout preventer adopts the photoelectric liquid level control mode, the control is sensitive and accurate, even the foam can sense, no oil spray phenomenon occurs.

Technical Specifications:

Available Styles

1. Fixing station type, mobile type with four wheels and mobile type with trailer.

2. Normal appearance type, shelf-covering type and explosion-proof type.

3. Available in different color.

Also named: Vacuum Dehydrator, Vacuum Purification System, Oil Degasification, Regeneration, Recycling
