Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VF-50 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Single Stage Vacuum Transformer Oil Purifier | Product Capacity: | 4000L/h |
---|---|---|---|
Color: | Custom | Product Power: | 39kW |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Power Supply: | Fully Customizable |
High Light: | Transformer Oil Purifier Remove Impurities,3000L/H Decoloration Transformer Oil Purifier,Decoloration Single Stage Transformer Oil Purifier |

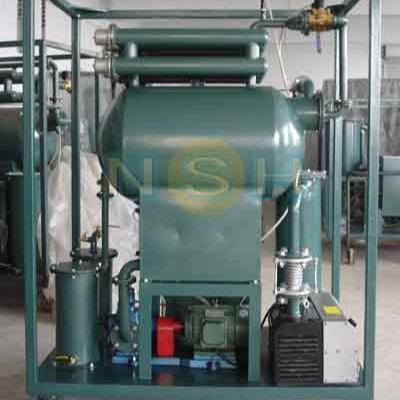

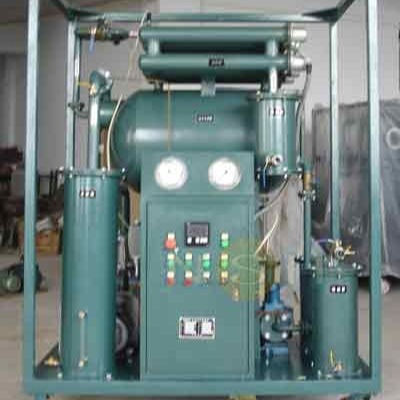

3000L/H Remove Impurities Decoloration Single Stage Vacuum Transformer Oil Purifier
Product Introduction:
The main function of VF series insulating oil single-stage vacuum oil purifier is to remove trace water, gas, mechanical impurities, free carbon in insulating oil, and improve the characteristics of insulating oil. VF series insulating oil single-stage vacuum oil filter integrates vacuum flash drying technology, coalescence separation technology and "step by step dense" filtration technology. This series can effectively remove moisture, impurities, hydrocarbons and other harmful gases in the oil, improve the flash point and pressure strength of insulating oil, and use in parallel with waste oil regeneration device can accelerate acid removal, decolorization, reduce dielectric loss, acid value, so as to further improve the insulation strength of oil.
Product Features:
1. Compound three-dimensional flash, combined with unique dehydration and degassing elements, can quickly and effectively separate water and gas in oil.
2. Multi stage precision filtration system, impurity removal technology combining molecular adsorption filtration and mesh filter element.
3. The new electric heating system has low heating load, uniform heating and low energy consumption.
4. It adopts automatic infrared liquid level controller and pressure protection system, which is simple, safe and reliable.
5. The whole machine interlock protection device, heater, oil pump and liquid level controller are used for linkage work.
6. It can be used together with BZ insulating oil regeneration device to achieve the functions of acid removal, decolorization, free carbon removal, dielectric loss reduction, etc.
Single Stage Vacuum Transformer Oil Purifier
Mainly used in power departments and industrial and mining enterprises to deal with a variety of unqualified insulation oil, such as transformer oil, transformer oil, switching oil, etc. The machine can quickly and effectively remove the water, impurities and gas in the oil under vacuum condition, and restore the dielectric properties of the insulating oil. This machine can be used for vacuum drying and vacuum oiling of power equipment, such as transformers and capacitors.
Oil Data After Purification
Dielectric Strength (BDV) | kV | ≥60 |
Water Content | ppm | ≤7 |
Gas Content | % | ≤0.1 |
Impurity Size | μm | ≤5 |
