Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VF-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Single-Stage Vacuum Transformerurifier Oil P | Product Capacity: | 6000L/H |
---|---|---|---|
Color: | Custom | Product Power: | 65kW |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Power Supply: | Fully Customizable |
High Light: | Vacuum Transformer Oil Purification Machine,6000L / H Vacuum Transformer Oil Purifier,65kW Transformer Oil Purifier |

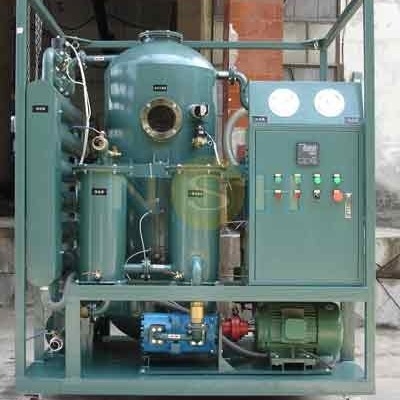

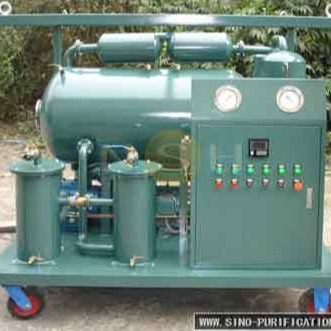

6000L / H Single-Stage Vacuum Transformer Oil Purification Machine
General
SINO-NSH-VF series
1)Sino-NSH-VF is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH- VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
2)Sino-NSH-VF is mainly used to improve the properties of insulating oils in electric power transformers and other c filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities so as to increase special indexes of insulation oil.
3)Sino-NSH-VF combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating thermal and vacuum, the breakdown voltage is improved, which can be increased from 25kV to over 60kV
4)Sino-NSH-VF maintains an optimized structure and safe controls se. as to meet comprehensive requirement of transformer manufacturers and service companies.
Benefits of Transformer Oil Purifier
1. Removes Dissolved Moisture Transformer Oil
2. Extends oil service life
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends transformer service life and reliability
Oil Data After Purification
Dielectric Strength (BDV) | kV | ≥60 |
Water Content | ppm | ≤7 |
Gas Content | % | ≤0.1 |
Impurity Size | μm | ≤5 |
Machine Specification
Parameter | Value | |||||
VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 9 | 15 | 24 | 36 | 60 | |
Total Power, kW | 11 | 17 | 26 | 39 | 65 | |
Power Supply | Fully customizable ** | |||||
Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Dimensions (without trailer) |
length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
width, mm | 900 | 900 | 900 | 900 | 1550 | |
height, mm | 1300 | 1300 | 1300 | 1700 | 1850 | |
Weight (without trailer), kg | 300 | 330 | 350 | 400 | 650 |
** Operating voltage: 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz), 415 V (60 Hz), 220 V (60 Hz), 460 V (60 Hz), etc (customizable)
** The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
** The heating power and total power are different with different capacity, please consult sales for more.
