Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VFD-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Double-Stage Vacuum Transformer Oil Purifier | Product Capacity: | 6000L/H |
---|---|---|---|
Product Power: | 96KW | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Color: | Custom |
Highlight: | Intelligent Mobile Vacuum Transformer Oil Purifier,6000 Liter/Hour Vacuum Transformer Oil Purifier,96 KW Vacuum Transformer Oil Purifier |

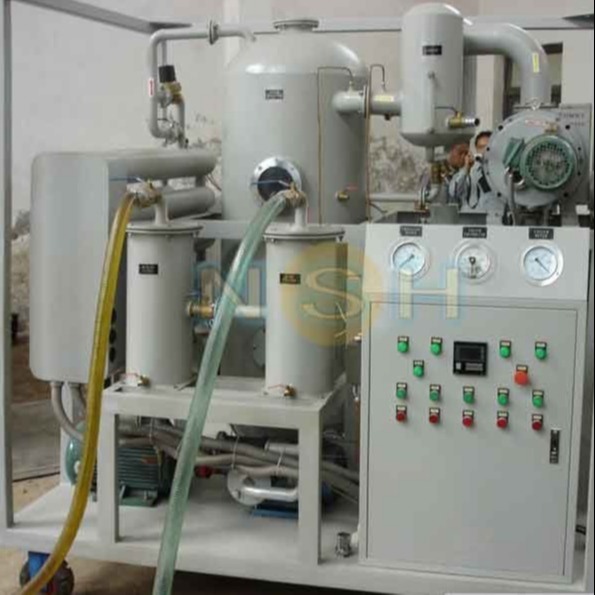

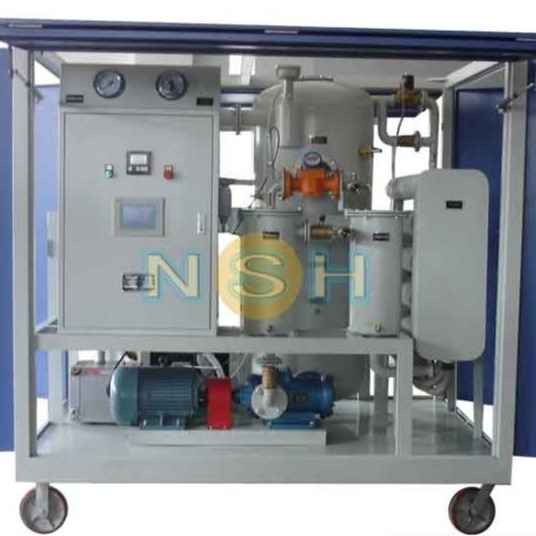

6000 Liter/Hour Intelligent Mobile Type Doule-Stage Vacuum Oil Purifier
working principle
Because the boiling point of water in the oil decreases greatly under high vacuum, a large amount of water can be volatilized without high temperature. The higher the vacuum degree, the greater the boiling point drops and the faster the evaporation of water. Similarly, the higher the temperature, the faster the water evaporation, using this principle through heating and high vacuum can quickly and effectively remove the water in the oil, and through the filter to remove the impurities in the oil, finally achieve the effect of purifying the oil quality.
working process
After the oil is inhaled to the heater through the crude filter, the temperature rises, and the initial oil and gas and oil and water are separated in the
first-stage vacuum separation tank, and then the oil and gas are separated completely in the second-stage vacuum separation tank. The water and gas are removed by the booster pump and vacuum pump, and the oil is output by the oil pump and fine filter.
Product features
1. VDF has the characteristics of small, efficient and easy to move, especially suitable for live production. And can dry the moisture of power equipment, but also convenient to power equipment vacuum oil.
2. The structure adopts infrared night position automatic control device, system pressure automatic protection device and efficient degassing element; Easy to operate and safe.
Oil Data Before & After Oil Purification Machine
PARAMETERS | UNITS | BEFORE OIL FILTRATION | AFTER OIL FILTRATION |
Break Down Voltage | kV | 25 | ≥75 |
Moisture Removal | ppm | 50-100 | Up to < 3-5 |
Particle size (Filter Fineness) | Micron | Visible | < 1 |
Gas Content | % Vol./Vol. | <10% | < 0.1% |
