Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | FV-20 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Vacuum Oil Purifier | Capacity: | 1200L/h |
---|---|---|---|
Color: | Customizable | Power Supply: | Fully Customizable |
Material: | Stainless Steel | Total Power: | 20KW |
After Warranty Service:: | Video Technical Support, Online Support | Suitable For: | Phosphate Ester Fuel Oil |
High Light: | Vacuum Phosphate Ester Fuel Oil Purifier,20KW Movable Vacuum Oil Purifier,Stainless Steel Phosphate Ester Oil Purifier |
Turboset Used 40kw Vacuum Phosphate Ester Fuel-Resistant Oil Purifier
40kw Vacuum Phosphate Ester Fuel-Resistant Oil Purifier Technical Parameters:
Parameter | Value | ||||
FV-10 | FV-20 | FV-30 | FV-50 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | |
Heating Power, kW | 9 | 18 | 27 | 36 | |
Total Power, kW | 11 | 20 | 33 | 40 | |
Power supply | Fully Customizable | ||||
Inlet Diameter, mm | 32 | 32 | 32 | 48 | |
Outlet Diameter, mm | 32 | 32 | 32 | 48 | |
Dimensions (without trailer) |
length, mm | 1200 | 1200 | 1200 | 1600 |
width, mm | 940 | 960 | 1000 | 1200 | |
height, mm | 1550 | 1550 | 1600 | 2000 | |
Weight(without trailer), kg | 380 | 400 | 420 | 500 | |
Processed Oil Spec | Water Content, ppm | ≤50 | |||
Filtration Fineness, um | ≤1 | ||||
Cleaness NAS(1638) | ≤50 | ||||
Acid, mgkOH/g | ≤0.03 | ||||
Resistivity, Ω.cm | ≥5*109 |
Technical Features Of The Machine
1. This oil filtration machine is all made of materials compatible with fire-resistant oil, stainless steel.
2. Efficient dehydration and impurity removal.
3. Equipped with high-efficiency regeneration medium and dehydration unit, which can quickly and effectively reduce the acid value and moisture of the fire-resistant liquid (oil), improve the resistivity, and restore the physical and chemical properties of the oil.
4. Ultra-precision filtration.
5. Adopt international filter unit to process NAS1638 to 50 and below.
6. Beautiful appearance and easy operation.
7. Regenerate and purify the deteriorated oil quality to meet and maintain the operating oil standard.
20kw Vacuum Phosphate Ester Fuel-Resistant Oil Purifier Function:
The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.

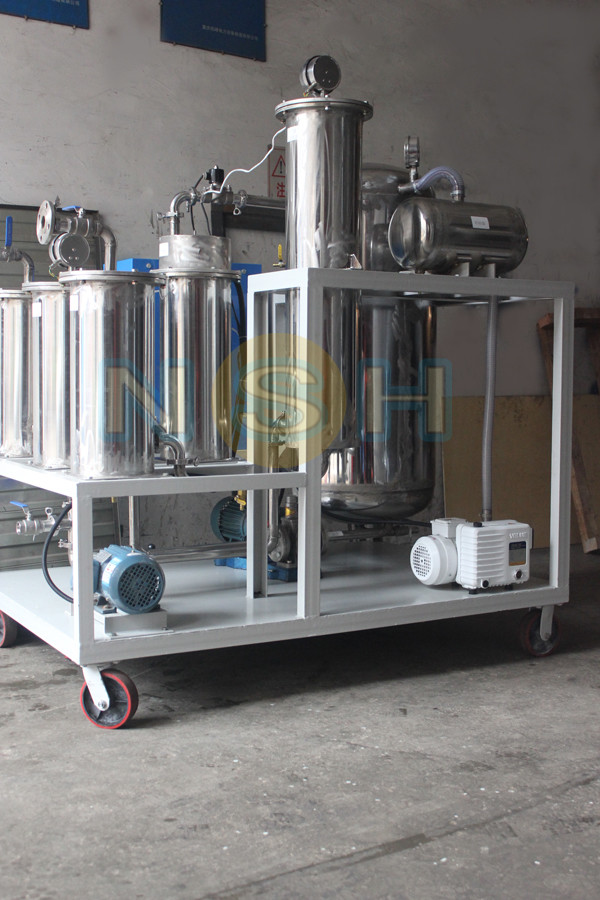

20kw Vacuum Phosphate Ester Fuel-Resistant Oil Purifier Description:
Sino-NSH-FV is a stainless steel machine with thermal and vacuum processing.
Sino-NSH-FV is mainly used to improve the properties of phosphate eater fire-resistant oil in generator set. It can efficiently remove water, gas, impurities and oxide, meanwhile it can also reduce acid and improve the conductivity. Which is widely used in the field of electric power, chemical, paper, and metallurgical industries which have steam turbine, gas turbibe, and hydri turbine.
Sino-NSH-FV adopts advanced hydrophilic and hydrophobic principle, the equipment is dehydration, deacidification, broken emulsion and high precious filtration.
Our Service
1. 1 year after-sale warranty.
2. Provide customers with all technical drawings, purchased equipment materials and long-term technical consultation free of charge.
3. Strictly according to customer needs, provide customers with the best oil treatment plan and provide products with excellent performance.
4. Ensure that the equipment provides complete processing technology, complete testing methods and equipment with excellent performance.
5. We can customize trailers, forklift holes and metal enclosures for the machine, and different kinds of instruments is available.
Our Advantages:
1.We use the import parts with best quality, and at the same time we offer affordable prices to the customer.
2. OEM & ODM service are available.
3. More than 26 years oil purification machine manufacturing experience.
4. Our factory has ISO,CE,SGS,SASO,SONCAP and other certification.
5. We can supply different kinds of oil filtration machine.
6. We can provide customized service.
7. Free training for customer engineers.
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
