Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | TF-300 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Turbine Oil Purifier | Product Capacity: | 18000L/h |
---|---|---|---|
Technology: | Dehydration And Degassing, Demulsifying, Coalescence Separation | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1 Year |
After Warranty Service:: | Video Technical Support, Online Support | Suitable For: | Transparent Oil, Hydraulic Oil, Refrigeration Oil |
High Light: | Vacuum Turbine Oil Purifier Large Capacity,18000L/h Vacuum Turbine Oil Purifier,Degassing Dehydration Vacuum Turbine Oil Purifier |

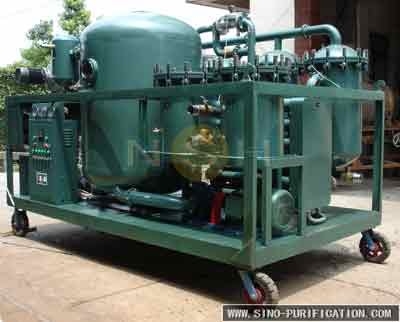

Degassing Dehydration Vacuum Turbine Oil Purifier Large Capacity
78kW Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.
78kW Vacuum Turbine Oil Purifier Function:
It can to increase special indexes of insulation oil through remove dissolved and free water, dissolved gas and particulate impurities effectively.Oil purification is a vital undertaking that helps in the maintenance of machines.
Product advantages include:
1. Using patented technology, it can simultaneously complete the functions of high-content dehydration and deep dehydration, impurity removal, degumming, demulsification, acid removal, decolorization, and oil clearing.
2. At the same time, it has the combined functions of coalescence separation, coagulation dehydration, box filtration, pressure filtration, and vacuum deep drying.
3. Adopt automatic control technology, reliable operation and long service life.
4, with overload protection, automatic oil level control function.
5. The operation is stable, soft, and the noise is particularly small.
6. It has environmental protection function and does not consume filter element.
7. The filter has a large diameter, strong dirt holding capacity, long service life and low maintenance cost.
78kW Vacuum Turbine Oil Purifier Technical Parameters:
Parameter | Value | |||||||
TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
Dielectric Strength, Kv | ≥6 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Gas Content, % | ≤15 |
Corollary Equipment-VR Vacuum Pump Set
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
