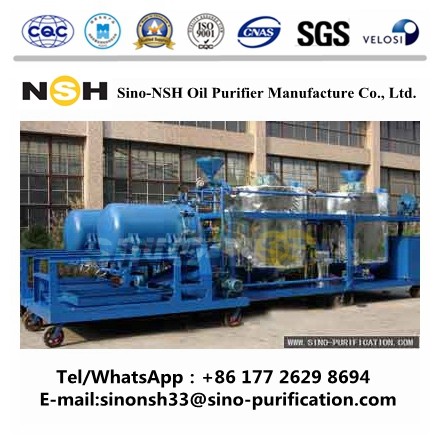

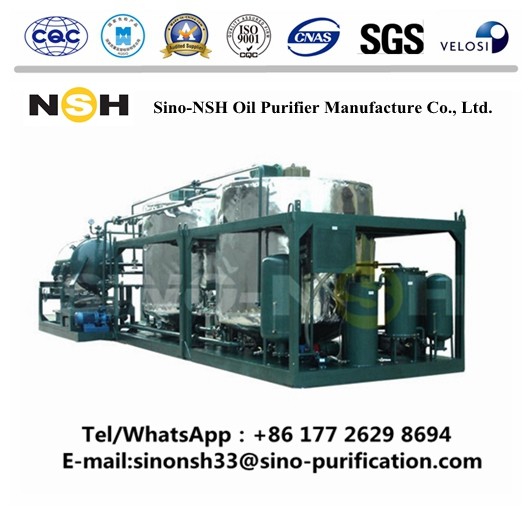

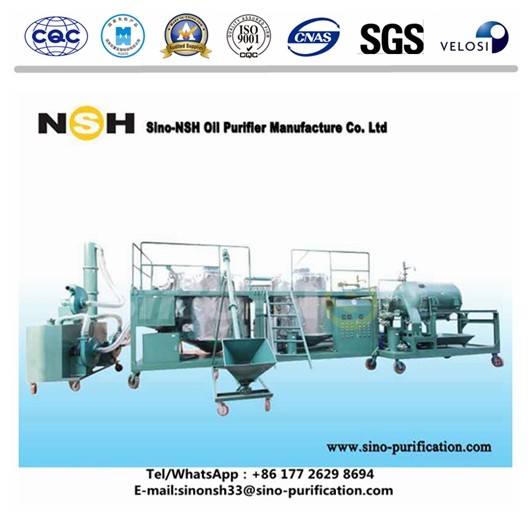

192 KW Waste Oil Regeneration Plant GER Series 10000L / H Precision Filtration

192 KW Waste Oil Regeneration Plant GER Series 10000L / H Precision Filtration

Description

Sino-NSH-GER is regeneration system for waste engine oil including disel engine oilk, gasoline engine oil, as well as used hydraulic oil and some other machinery's lubrication oils.
Sino-NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from used oil. Physical processing method can remove solid particles, water, gas, etc. Chemical processing method allows removal of colloid, oxide, acid, pitch in the used oil. Specially, this system can restore the color of used oil and remove the scent rapidly.
Sino-NSH-GER is an environmentally friendly system, abandon traditional acid processing method, effectively solve the envirnomental pollution caused by the old technology of waste oil recycling. Various options are available for this system to improve the automation of operation.

Application

Waste oil regeneration treatment system is suitable for the decolorization, deacidification, regeneration and purification of seriously aged waste industrial lubricating oil and hydraulic oil; it is used to restore the physical and chemical properties of the oil, so that the purified oil can reach the national standard new oil quality and be reused.

This equipment is widely used in petroleum, chemical, cement, metallurgy, mining, power, shipbuilding, machinery, military industry, such as industry used engine oil, gear oil (open and closed), hydraulic oil, molding oil, cooking oil, rail oil, compressor oil, vacuum pump oil, total loss system oil, axle oil, pneumatic tool oil, rail oil, bearing oil, cylinder oil, transmission oil, change Compressor insulation oil (mineral type, synthetic oil) and other industrial waste oil regeneration.

Features

1. 3D vacuum separation technology can be used to separate the bad components of waste oil. The separated bad components are pumped into the condensation system by vacuum negative pressure for cooling, and collected to the pollutant collector for storage until discharge.
2. Negative pressure cyclone separation: traditional oil filter adopts pipeline circulation, first through the heating pipe, then filtration, and then degassing separation, heating and separation disconnection phenomenon occurs. Our company adopts the technology of "negative pressure cyclone separation", that is, the oil is stirred and heated under vacuum negative pressure and completed at one time. The separation efficiency is dozens of times that of similar products. Never damage oil: unique negative pressure cyclone separation device, oil surface and inner layer temperature balance. The heating pipe wall temperature of traditional oil purifier is above 300℃, and the oil is aged instantly. The inner layer and surface of the constant heat device used in this product are about 80-100℃, so as to ensure that it will never damage the oil and restore the physical and chemical indexes of the oil. The equipment can help oil restore viscosity, acid value, freezing point, pour point, emulsification performance, viscosity temperature performance, corrosion performance, oxidation stability performance, and improve the flash point of oil 5%-30%.

Optional accessories

1. Chemical materials feeding system: Feeding system can feed chemicals instead of labor which can save labor cost during operation.
2. Laboratory devices: Customers can use lab devices to make experiments before using GER. Customers can adjust quantity of chemicals or adjust percentage of used oil according to test results.
3. Chemicals: NSH will provide chemicals for commissioning.

Another types of our oil purifier machines

TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.

About us:►Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech Company Since 2004 which is engaged in researching, developing and manufacturing lubrication purification equipment. After 18 years' growing, NSH passed the approval of the ISO 9001:2015 quality system, Environmental Management System as per GB/T 24001-201 6/ISO 14001:2015, Chinese high-tech enterprises and another sorts of certifications Issued by Chinese Government, At the same time, we have obtained hundreds of patents for our advanced technology.

NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.

NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.Our expertise positioned SINO-NSH as a leading manufacturer in China and also keeps long term cooperation with many famous international enterprises, such as: SIEMENS, ABB, CEGELEC, and STATE POWER PLANTS OF MANY COUNTRIES, etc. We are committed to exceeding your expectations.

►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
