Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE, ISO, CCC, SGS, CNAS, CQC |
Model Number: | GER-1 |
Minimum Order Quantity: | 1 set |
Price: | USD 5000-20000 dollar |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 15-25 working days for OEM |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Power(w): | 72 KW | Condition: | New |
---|---|---|---|
Weight: | 2500 Kg | Dimension(l*w*h): | 3500*1900*2100~5600*2100*2300 CM |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Flow: | 2000L/H |
Voltage: | 380v/50hz Or As Per User's Option | Warranty: | 12 Months |
Function: | GER Series Are Able To Effectively Remove Colloid, Oxide, Acid, Pitch, Particles, Impurities, Water, Gas In The Used Oil. Specially, GER Can Restore The Color Of Used Oil And Remove The Scent Rapidly. | Color: | Blue,Customizable |
Raw Material: | Carbon Steel | Working Temperature: | -10~80℃ |
Type: | Engine Oil Regeneration Plant | Material: | Steel |
Capacity: | 2000 Litters Per Hour | Heating Method: | Electric |
Name: | 2000L / H Engine Oil Water Regeneration Plant GER Series 72 KW Precision Filtration | ||
Highlight: | 72 KW Engine Oil Regeneration Plant,Engine Oil Regeneration Plant 2000L/H,Engine Oil Regeneration Plant Carbon steel |

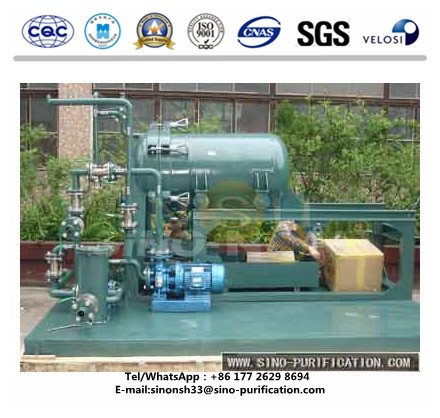

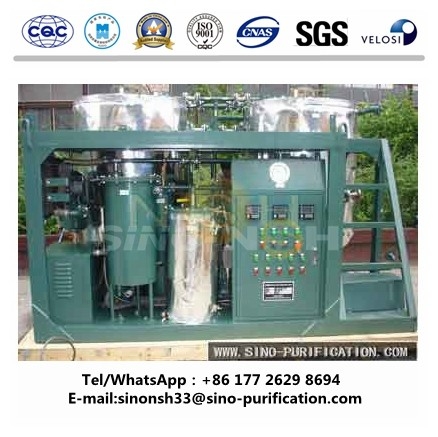

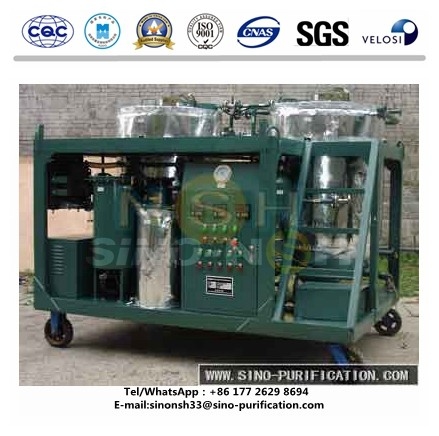

2000L / H Engine Oil Water Regeneration Plant GER Series 72 KW Precision Filtration
Description
NSH GER Used Oil Regeneration System is particularly suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil and used hydraulic oil, other used machinery’s lubrication oil.
Application
GER series are able to effectively remove colloid, oxide, acid, pitch, particles, impurities, water, gas in the used oil. Specially, GER can restore the color of used oil and remove the scent rapidly.
Features
Optional accessories
Technical Parameters:
Parameter | Value | |||||
GER-1 | GER-2 | GER-3 | GER-4 | GER-5 | ||
Capacity, liters/hour | 2000 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 72 | 18 | 30 | 45 | 90 | |
Total Power, kW | 81 | 21 | 35 | 50 | 96 | |
Power supply | Fully Customizable | |||||
Outlet Diameter/Inlet Diameter, mm | 40 | 40 | 40 | 40 | 40 | |
Recovery Rate, % | 70~90 | |||||
Dimensions | Reaction Sytem, mm | 3500x1900x2100~5600x2100x2300 | ||||
Filtration Sytem, mm | 2*2800x1400x2000~2*3200x1600x2100 | |||||
Exhaust Gas Processing, mm | 950x2000x3300 | |||||
Weight(without trailer), kg | 2500 | 3500 | 4500 | 5500 |
6000 |
Another types of our oil purifier machines
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
About us:►Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech Company Since 2004 which is engaged in researching, developing and manufacturing lubrication purification equipment. After 18 years' growing, NSH passed the approval of the ISO 9001:2015 quality system, Environmental Management System as per GB/T 24001-201 6/ISO 14001:2015, Chinese high-tech enterprises and another sorts of certifications Issued by Chinese Government, At the same time, we have obtained hundreds of patents for our advanced technology.
NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.
NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.Our expertise positioned SINO-NSH as a leading manufacturer in China and also keeps long term cooperation with many famous international enterprises, such as: SIEMENS, ABB, CEGELEC, and STATE POWER PLANTS OF MANY COUNTRIES, etc. We are committed to exceeding your expectations.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
