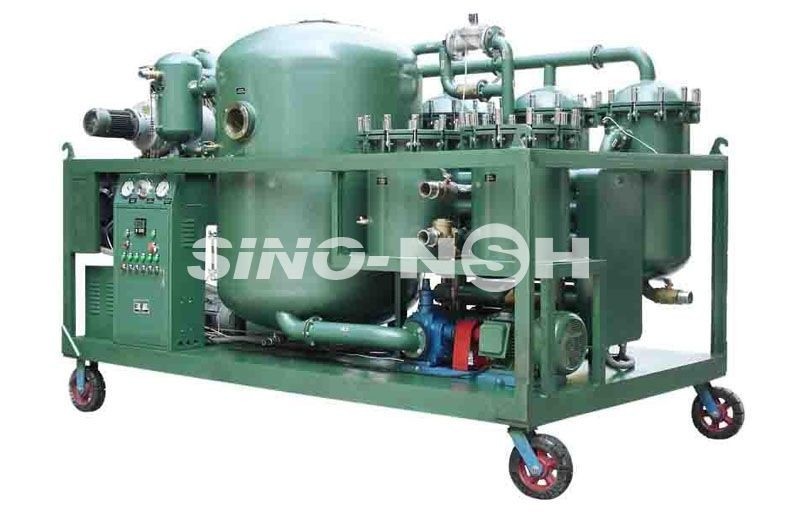

High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series

High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series
High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VF-300
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Product Name: Vacuum Insulation Oil Purifier Product Capacity: 18000L/h
Color: Custom Product Power: 240kw
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Power Supply: Fully Customizable
Highlight:

240 kw Vacuum Insulation Oil Purifier

,

VFD Series Vacuum Fast Oil Filter

,

18000 L/h Vacuum Insulation Oil Purifier

High Vacuum And Fast Oil Filter Speed Vacuum Insulation Oil Purifier VFD Series



VFD Introduction:


VFD series are mainly used to improve the performance of insulating oil. It can effectively and quickly remove trace water, gas, particles and other substances in insulating oil, thus improving the performance of transformers, circuit breakers, transformers, cables and capacitors with insulating system. VFD series professional purification brand oil, high voltage insulation oil, ultra high voltage transformer. In addition, it is also suitable for handling low viscosity lubricants.



OPTIMIZED STRUCTURES:


•Dehydration (Degassing) System
•Filtering System

•Oil Heating System
•Control panel
•Vacuum pump & Roots pump, screw pump
•Cooling System and Condensing System

Auto-Control And Protection System



PRESENTATIONS OPTIONS:


•Base frame with caster wheels
•Metallic enclosure cover on caster wheels
•Metallic enclosure cover on single axletrailer
•Base frame on double axle trailer
•Metallic enclosure cover on double axletrailerMetallic enclosure cover and operation room on double axle trailer.

High Speed Vacuum Insulation Oil Purifier 240kw Fast Oil Filter VFD Series 0



SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950
