12000L / H Insulation Transformer Oil Purifier Efficient Intelligent Single Stage Vacuum

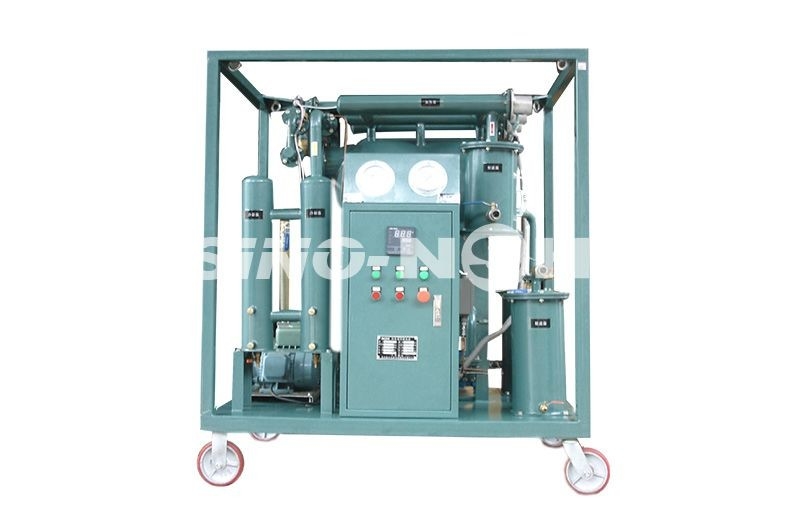

12000L/H Efficient Intelligent Single-Stage Vacuum Insulation Oil Purifier

Product Introduction:
The main function of VF series insulating oil single-stage vacuum oil purifier to remove trace water, gas, mechanical impurities, free carbon in insulating oil, and improve the characteristics of insulating oil. VF series insulating oil single-stage vacuum oil purifier integrates vacuum flash drying technology, coalescence separation technology and "step by step dense" filtration technology. This series can effectively remove moisture, impurities, hydrocarbons and other harmful gases in the oil, improve the flash point and pressure strength of insulating oil, and use in parallel with waste oil regeneration device can accelerate acid removal, decolorization, reduce dielectric loss, acid value, so as to further improve the insulation strength of oil.

Product performance:
1. Dehydration and degassing
2. Dielectric strength after purification
3. The transformer evacuation
4. transformer restoration
5. Filtration

Product features:
1. High efficiency in water removal and degassing: The Patented Technology of three-dimensional precipitation degassing and dehydration system, built-in secondary evaporation layer, plus special vacuum packing, increase the oil film contact area, rapid separation of water and gas in the oil, the efficiency is 2 times of similar products.

2. Strong impurity removal ability: High β value Precision filter material, multi-level filtration step by step encryption, remove fine particles in the oil. Filter element large volume, large pollution capacity. Long service life, and equipped with filter element pollution automatic detection function.

3. Short oil treatment time: two-stage high vacuum and large pumping speed, can quickly and efficiently remove water vapor in the oil, so that the drying degree of oil, breakdown voltage value, a filtration effect can be greatly improved, shorten the oil treatment period, so as to improve the performance of oil.
