Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | TF-30 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Name: | Double-Stage Vacuum Transformer Oil Purifier | Product Capacity: | 18000L/h |
---|---|---|---|
Color: | Custom | Power: | 30kw |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Power Supply: | Fully Customizable |
High Light: | Multifunction Vacuum Turbine Oil Purifier,Vacuum 1800L/H Turbine Oil Purifier,Stainless Steel Turbine Oil Purifier |

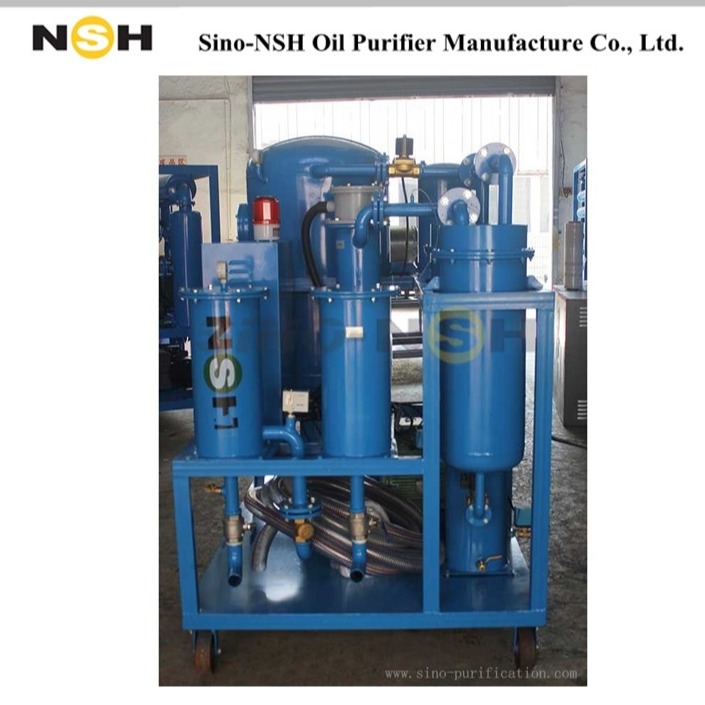

1800L/H High Efficiencncy Multifution Vacuum Turbine Oil Purifier
Product introduction
TF series is particularly suitable for purifying turbine lubricating oil. It also applies to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipment which have lubrication system and keep them operate in good condition.
Product performance
1. dehydration and degassing
2. oil heating
3. quiet operation
4. filtration
5. movable castors
Product features
1. Eliminate soluble and dissolved water effectively and demulsify rapidly
TF series can not only separate large quantity of water but also remove trace of water from oil. Fitted with specially made demulsifying device (water separator),it is capable of making turbid emulsified oil very clear.
2. High effectively purify matters in oil such as impurities, sludge etc.
The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
3. High automation, stability and operation online High automation, small size, light weight, safety and reliability. Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.
Product parameters
Item | Unit | TF-30 | TF-50 | TF-75 | TF-100 | TF-150 | TF-200 | |
Flow Rate | L/H | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | |
Vacuum Range | MPa | -0.06~~-0.096 | ||||||
Working Pressure | MPa | ≤ 0.3 | ||||||
Water Ratio | PPm | ≤ 100 | ||||||
Impurity size | µm | ≤ 5 | ||||||
Clearness | NAS | ≤ 6 | ||||||
Temperature Range | ℃ | 40—80 | ||||||
Demulsifying Value | Μin | < 15 | ||||||
Power Supply | V | ~50Hz 380V(or according to client’s request) | ||||||
Working Noise | dB | ≤ 70 | ≤ 75 | |||||
Heating Power | Kw | 30 | 36 | 50 | 72 | 90 | 120 | |
Total Power | Kw | 33 | 39 | 54 | 77 | 98 | 128 | |
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN35 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 420 | 550 | 650 | 750 | 850 | 950 | |
Size | length | Mm | 1400 | 1550 | 1650 | 1700 | 1800 | 1900 |
width | Mm | 1050 | 1100 | 1200 | 1300 | 1400 | 1500 | |
height | Mm | 1650 | 1700 | 1800 | 1850 | 1950 | 2050 |
