Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic

Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic
Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VFD-A
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Sets/M
Get Best Price Contact Now
Product Name: Vacuum Oil Purifier Materail: Stainless Steel/Carbon Steel
Color: Customizable Total Power: 29KW
Capacity: 1800L/H Functions: Dehydration, Degassing, Filtration
Power Supply: Customizable Weight: 600kg
High Light:

Automatic double stage vacuum transformer oil purifier

,

1800LPH Vacuum Oil Purifier

,

1800LPH vacuum transformer oil purifier

1800LPH Double Stage Degassing Vacuum Oil Purifier Automatic

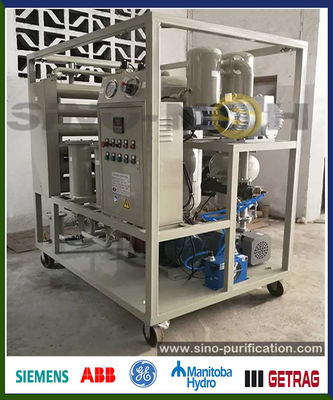

A brief introduction to the VFD-A.



The VFD-A double-stage automatic vacuum insulation oil purifier machine is also called transformer oil dehydration machine and insulation oil filtration machine, designed to process and maximize dielectric strength in electrical insulating liquids. This will extend not only transformer oil service life, but also transformer service life and reliability. It adopts a high vacuum system and high precision filtration system and has functions of dehydration, degassing, and filtration. It is widely used in factory workshops, power transmissions, and generation stations.



What is the strength of VFD-A?



1. Equipped with a double-stage high vacuum system, which ensures fast vacuum pumping speed and high vacuum degree.

2. Advanced liquid automatic controller, pressure automatic protector, and temperature automatic-controlling system which ensures long-term safety and reliable operation.

3. After purification, the technical parameters and performance of transformer oil will be obviously recovered, and the oil breakdown voltage can reach up to 70KV in ideal conditions.

4. We provide abundant optional parts for this equipment and each one will be customized as per the customer’s requirements. You can get the most suitable oil purifier.

5. The VFD-A utilizes coacervation technology, coalescing technology, separating technology, and refined purification technology.

6. This model adopts the PLC full automatic system, operates by touch-screen, with dynamic display, and can connect the computer to operate. All working processes are via the CPU.



Why should the oil filtration machine be adopted?



After the transformer has been used for a long time, there are gas, moisture, and other impurities will be in the dielectric insulating oil due to the pressure. These factors affect the insulation function and heat dissipation properties of the transformer oil. Therefore, transformer oil filtering must be adopted.



Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic 0



Parameter



Parameters Value
VFD-30 VFD-50 VFD-75 VFD-100 VFD-150 VFD-200 VFD-300
Capacity, liters/hour 1800 3000 4000 6000 9000 12000 18000
Heating Power, kW 24 30 48 60 90 120 150
Total Power, kW 29 36 56 69 100 132 170
Power supply Fully Customizable
Inlet Diameter, mm 25 32 32 40 40 50 65
Outlet Diameter, mm 25 32 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1350 1500 1550 1900 2200 2400 2900
width, mm 1100 1200 1250 1400 1500 1600 1800
height, mm 1700 1750 1800 1800 1850 1900 2000
Weight(without trailer), kg 600 800 900 1150 1500 1700 2400
Processed Oil Spec

Water Content,

ppm

 ≤5

Dielectric Strength,

Kv

 ≥75
Filtration Fineness, um ≤5( or 1-5 as needed )

Gas Content,

%

 ≤0.1



Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic 1



Our Service



1. 1 years warranty.

2. Provide customers with all technical drawings, materials of equipment purchased, and long-term technical consultation for free.

3. Strictly according to customer needs, provide customers with the best oil treatment solutions, and provide good performance products.

4. Ensure that the equipment is provided with perfect processing technology, perfect testing means, and equipment performance is good.



Other Models Purifier Machines



TF Series:
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing, it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas, and particulates, improve the oil properties.
LV Series:
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier that can treat various kinds of lubricant oils.
FV Series:
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistant oil in generator sets.
GER Series:
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, and other used lubrication oil for machinery.
GED series:
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.




Sino-NSH cooperated with SIEMENS in Egypt Programme



Double Stage Degassing Vacuum Transformer Oil Purifier 1800LPH Automatic 2
