Place of Origin: | China |
---|---|
Brand Name: | Sino-NSH |
Certification: | CE, ISO, CCC, SGS, CNAS, CQC |
Model Number: | TF-100 |
Minimum Order Quantity: | 1 set |
Price: | USD 5000-20000 dollar |
Packaging Details: | Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks |
Delivery Time: | 15-25 working days for OEM |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Power(w): | 53KW | Condition: | New |
---|---|---|---|
Weight: | 650 Kg | Dimension(l*w*h): | 1650*1150*1560 CM |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Flow: | 6000L/H |
Voltage: | 380v/50hz Or As Per User's Option | Working Pressure: | ≤ 0.3Mpha |
Warranty: | 12 Months | Function: | This Units Can Extend Turbine Oil Life By Removing Contaminates From Oil, Such As Water, Gas And Particulates, Improve The Oil Properties. |
Color: | Grey, Customizable | Raw Material: | Carbon Steel |
Working Temperature: | -10~80℃ | Type: | Tubine Oil Filtration |
Material: | Steel | Capacity: | 6000 L/H |
Heating Method: | Electric | Name: | 6000L/H Turbine Oil Purifier Vacuum System PLC Control Used In Metallurgy |
High Light: | PLC Control Turbine Oil Purifier,Vacuum 6000L/H Turbine Oil Purifier,Metallurgy Turbine Oil Purifier |

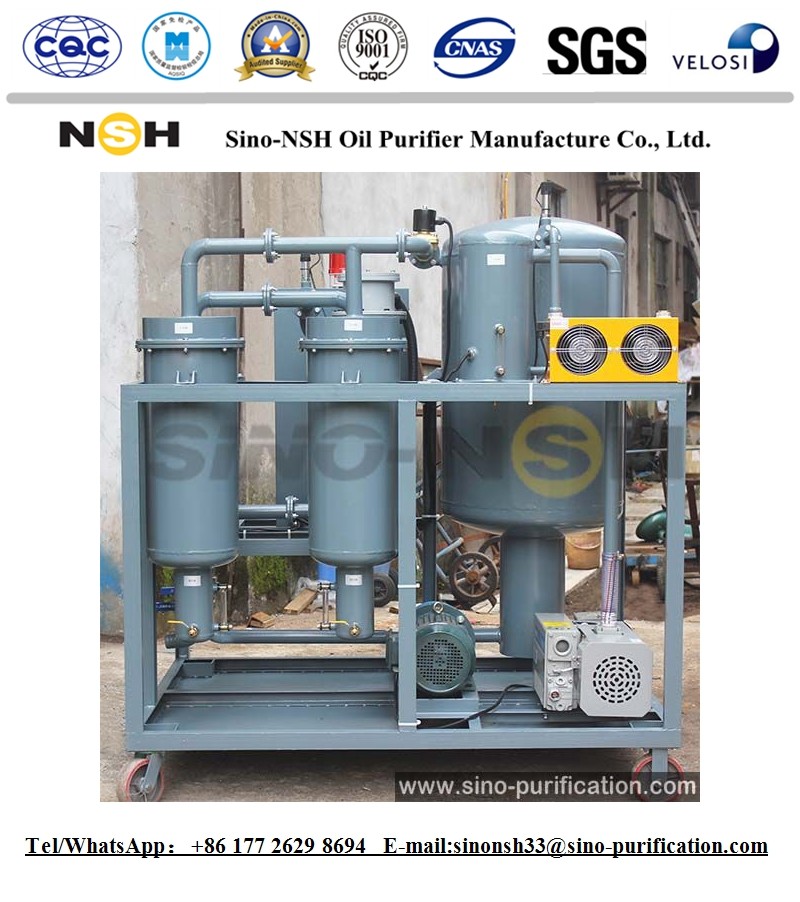

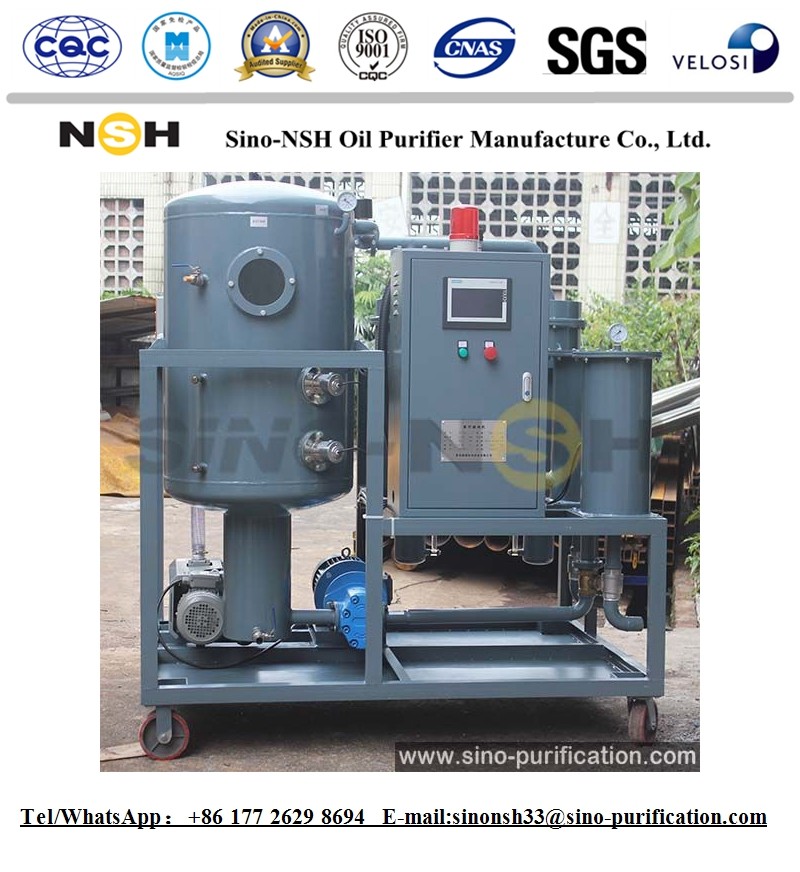

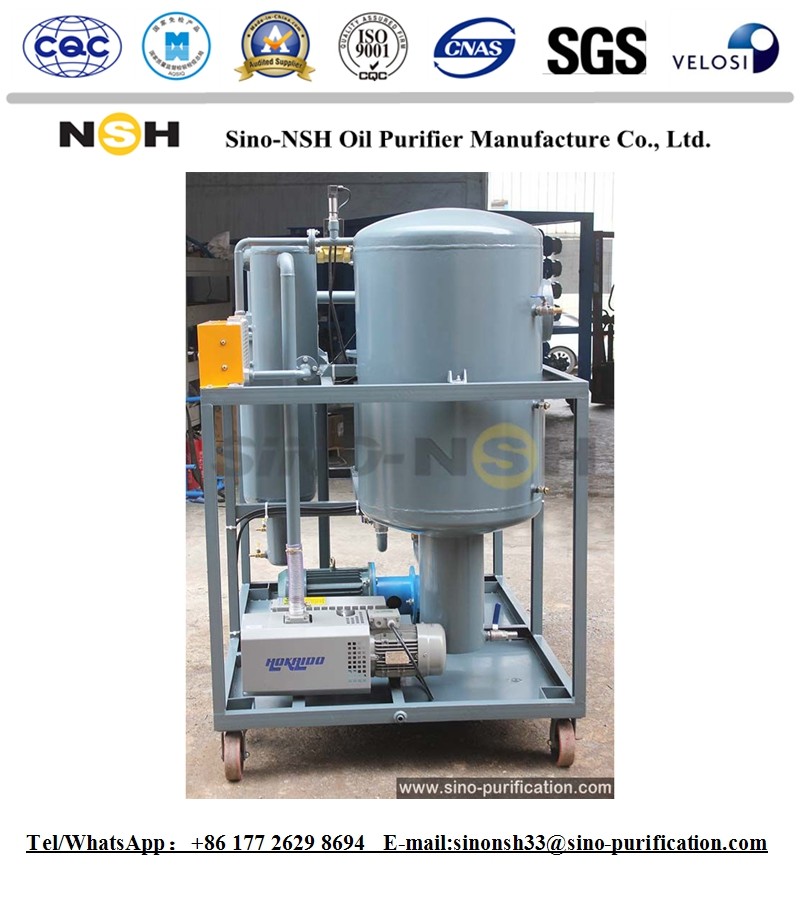

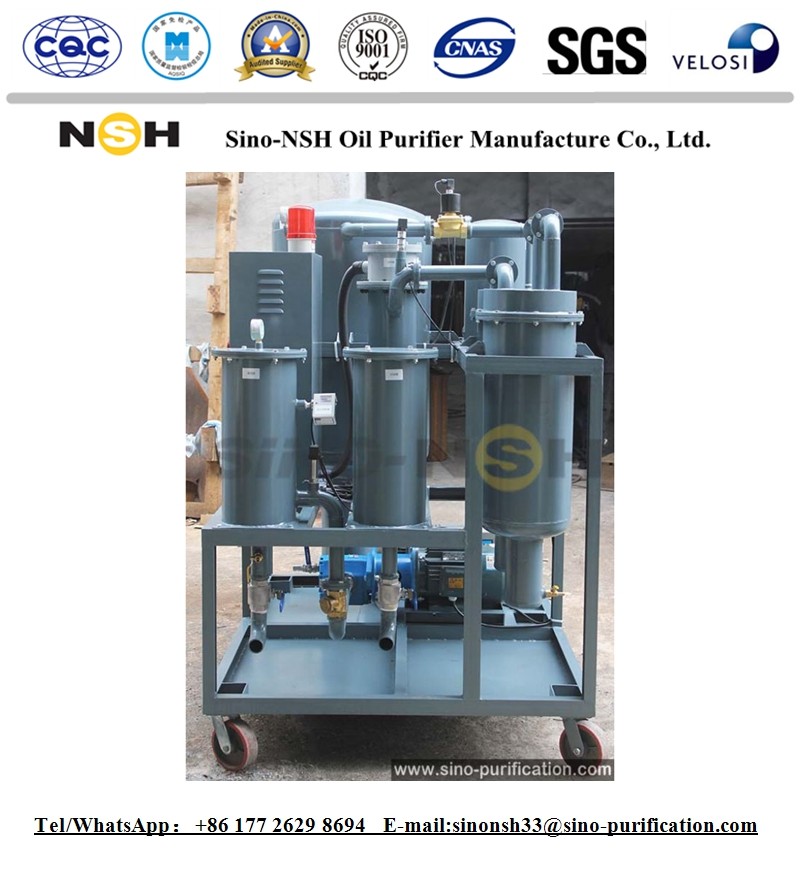

6000L/H Turbine Oil Purifier Vacuum System PLC Control Used In Metallurgy
Application
Widely used in electric power, metallurgy, chemical and other industries of steam turbine, water turbine, gas turbine and other generator unit turbine oil of polymer ultra-clean, can seriously water, improve the quality of oil, restore its lubrication, speed, heat dissipation, cooling and other characteristics, to ensure the safe operation of the corresponding unit.
Description
TF turbine oil purifier series is developed by vacuum evaporation technology, coacervation technology, coalescing technology, separating engineering technology and refined purification technology. It can eliminate water, gas, impurities, colloid, dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.
The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor, water and other impurities mixed with it. Otherwise, oil deterioration would result in breakdown of machinery or affect the normal running of machinery.
TF series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.
Features
Edges
Structure and Appearance
● Conventional configuration is mainly carbon steel, according to customer needs, can also choose to use the tank pipe stainless steel material, beautiful and not corroded, can work for a long time. ● Main power parts, filtration equipment, electrical parts of the conventional configuration for domestic standard configuration, customers can also choose high-quality imported products to improve the performance of equipment.
Working Principle
When the oil purification machine starts, contaminated oil enters into the primary filter under the effect of pressure difference, in which large particles of particulate matters are filtered off. Therefrom the oil is heated and goes into the secondary filter, in which fine particles of matters are removed. Then the oil goes into the water separator, the free, soluble water is separated from the oil and drained to the water collector. After that, oil passes through the fine filter and fine particles of matters is removed during the process. Finally oil goes into the vacuum tank, where residual trace of water is removed and steam is condensed in the condenser or expelled out by the vacuum system. The reused oil is drained by oil pump in the end.
Guarantees & documentation
SINO-NSH Warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of sixteen (16) months from date of shipment or twelve (12) months after the start up of the system. SINO-NSH’s obligation under this warranty is limited to repairing or furnishing, without charge F.O.B. point of manufacture, a similar part to replace any part, which was proven to be defective within warranty period. SINO-NSH shall not in any event be held responsible for any indirect or consequential damages. The performance guarantee will be within limitations as detailed in duty & performance paragraph of this specification.
Two(2) copies of operating & maintenance manuals are supplied with each purifier. These systems are designed to operate with the utmost simplicity and is required, please contact SINO-NSH for additional charges.
Technical specifications
Item | Unit | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | |
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | |
Vacuum Range | MPa | -0.06~~-0.096 | |||||
Working Pressure | MPa | ≤0.3 | |||||
Water Ratio | PPm | ≤ 100 | |||||
Impurity size | µm | ≤ 5 | |||||
Clearness | NAS(1638) | ≤ 6 | |||||
Temperature Range | ℃ | 40—80 | |||||
Demulsifying Value | Μin | < 15 | |||||
Power Supply | V | ~50Hz 380V(or as needed) | |||||
Working Noise | dB | ≤ 70 | ≤ 75 | ||||
Heating Power | Kw | 30 | 36 | 72 | 90 | 120 | |
Total Power | Kw | 33 | 39 | 77 | 98 | 128 | |
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 420 | 550 | 750 | 850 | 950 | |
Size | length | Mm | 1400 | 1550 | 1700 | 1800 | 1900 |
width | Mm | 1050 | 1100 | 1300 | 1400 | 1500 | |
height | Mm | 1650 | 1700 | 1850 | 1950 | 2050 |
Another types of our oil purifier machines
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
About us:►Sino-NSH Oil Purifier Manufacture Co., Ltd. is a high-tech Company Since 2004 which is engaged in researching, developing and manufacturing lubrication purification equipment. After 18 years' growing, NSH passed the approval of the ISO 9001:2015 quality system, Environmental Management System as per GB/T 24001-201 6/ISO 14001:2015, Chinese high-tech enterprises and another sorts of certifications Issued by Chinese Government, At the same time, we have obtained hundreds of patents for our advanced technology.
NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.
NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.Our expertise positioned SINO-NSH as a leading manufacturer in China and also keeps long term cooperation with many famous international enterprises, such as: SIEMENS, ABB, CEGELEC, and STATE POWER PLANTS OF MANY COUNTRIES, etc. We are committed to exceeding your expectations.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
