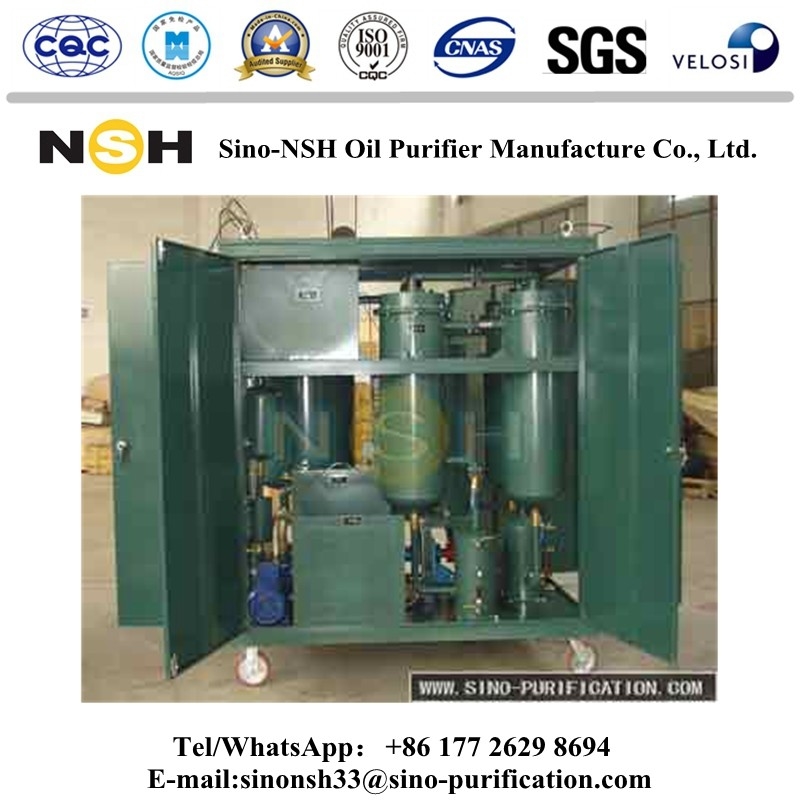

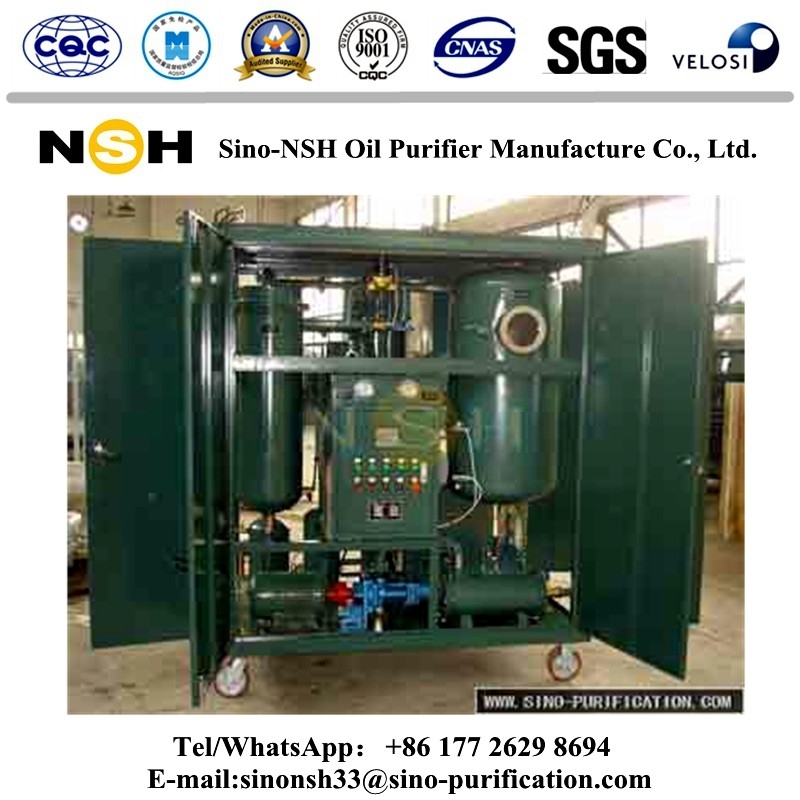

Vacuum 3000L / H Turbine Oil Purifier Filtration Plant 380V Transformer Oil

Vacuum 3000L / H Turbine Oil Purifier Filtration Plant 380V Transformer Oil





Application

TF series turbine oil vacuum oil filter is suitable for turbine oil turbine set, and water turbine set, online or offline operation to make the oil which is not deteriorated in time purification, TF series turbine oil high vacuum oil filter, Set vacuum dry separation, three-dimensional atomization technology and precision filtration technology in the body, make have mixes up, leakage, aging, acid, much bubble inferior oil emulsion was treated to meet the new oil after the use of standard, widely used in electric power, chemical industry, papermaking, oil, etc, and can effectively ensure the normal operation of the steam turbine lubricating system.





Description

TF turbine oil purifier series is developed by vacuum evaporation technology, coacervation technology, coalescing technology, separating engineering technology and refined purification technology. It can eliminate water, gas, impurities, colloid, dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.

The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor, water and other impurities mixed with it. Otherwise, oil deterioration would result in breakdown of machinery or affect the normal running of machinery.

TF series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.





Features

● High impurity removal ability: multistage high value precision filter material, filter step by step encryption to remove fine particles in the oil, large amount of pollution, oil absorption magnetic filter element to filter iron containing fine impurities. And equipped with filter element pollution automatic detection function.
● High water degassing efficiency: the use of ding Neng special three-dimensional evaporation technology of degassing, dehydration system. The introduction of foreign advanced technology, set gravity method, vaporization method, coalescence method, vacuum separation, mechanical filtration and other advantages in one.
● Control acid formation: Acid is formed by the interaction of water with metal particles formed in the system. Through effective impurity removal, dehydration, degassing, reduce air mixing, prevent the formation of acid. Reduce the oxidation of oil to a small extent, maintain the lubrication performance of oil products, improve the reliability of the system, prolong the service life of oil.
● Low density heating: the system adopts low density circulating carbon fiber heating technology, optimized pipeline design, prevent oil cracking, ensure uniform heating, stable oil temperature.
● Automatic control: the machine adopts automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic pressure protection and other sophisticated configuration, to ensure that the equipment does not spray oil in operation, safe and stable operation.

● Interlock protection: overload protection, overpressure alarm stop protection, lack of oil protection, oil injection protection, phase sequence protection to ensure the machine long time reliable operation.

● Humanized instruction: automatic design, and oil temperature, pressure, vacuum, filter contamination, operating status and other indicators. The logo is concise and clear.
● Modern design: the machine net oil process design advanced, and hydraulic tank (oil station) process connection can match online processing can also be offline processing, high degree of automation, can realize unattended operation. The device is compact in structure, flexible and convenient to move.
● Good comprehensive performance: the machine has the advantages of low noise, simple operation, long maintenance interval, low energy consumption, small operation cost, high oil filter efficiency.











Edges

• Dehydration (Degas) System

• The vacuum vessel can enlarge evaporation area efficiently. The heater, being placed on the vacuum vessel, becomes an evaporator. Thus the evaporation area of vacuum vessel is three times more than that of the ordinary vacuum vessel. This innovation can dehydrate and degas effectively and efficiently.
• The optimal structure of the dehydration (degas) system enlarges the surface area of oil exposed to the vacuum system and extends the flowing distance of the oil in the vacuum system. Thus there has sufficient time to remove the moisture and gas from the oil by vaporization.

• Filtering System

• The filtering materials with variable apertures are made of specialized glass fiber. The sizes of the filtering fiber and aperture dwindle gradually in the different filtering stages. The impurities with different particulate sizes are filtered step by step. The capability of removing particulate matters and impurities is improved greatly by this method.
• The filtering system has stable and perfect filtering fineness. The filtering fineness has several grades, including 1, 2,3,4,5,6,10 µm etc. Oil β≥1000 after filter.
• The filtering system is equipped with reverse rinse and filth device. It improves the effectiveness of filtering and extends the lifetime of filter awfully.

• Oil heating System

• The unique heater structure heats the oil uniformly.
• Oil Heater System assures less than 1.0 w/cm². During the heating process, the deterioration of the oil caused by overheating is avoided.
• The oil temperature can be adjusted between 20℃ to 80℃.The heater is controlled manually or automatically. The heater will stop automatically when the oil temperature reaches a certain degree.
• Being installed with safety protection devices, the heating system is secure and reliable. The heater will stop operation automatically when the oil volume of inlet is too low to avoid the damages of the heater.

• Electrical Apparatus controlling System

• The main components of the electrical apparatus made by Schneider, Siemens and so on ensure the safety of the controlling system.
• Having several protection systems which will avoid oil ejection, overload and over voltage etc.

• Oil-level Controlling System

• The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control the oil level so as to avoid the oil being suctioned into vacuum pump in the operation.
• The new innovation of eliminating froth can avoid the oil being suctioned into vacuum pump.

• High quality components

• The main component parts of NSH products such as vacuum pump, oil pump and electric apparatus are from SIEMENS, LEYBOLD, OMRON, SCHNEIDER, HYDAC, NSH, AMICO etc. It ensures NSH products high quality and reliability.





Structure and Appearance

• NSH products adopt ship-shape chassis-mount structure to ensure oil leakproof and protect the environment from pollution.
• The whole equipment is characterized by small size, light weight and convenient to move around.
• Various sizes and configurations (shield) available.
• Available in mobile or stationary options.
• Automatic vacuum oil purifier and anti-explosion vacuum oil purifier are both available according to customers’ needs.







Working Principle

When the oil purification machine starts, contaminated oil enters into the primary filter under the effect of pressure difference, in which large particles of particulate matters are filtered off. Therefrom the oil is heated and goes into the secondary filter, in which fine particles of matters are removed. Then the oil goes into the water separator, the free, soluble water is separated from the oil and drained to the water collector. After that, oil passes through the fine filter and fine particles of matters is removed during the process. Finally oil goes into the vacuum tank, where residual trace of water is removed and steam is condensed in the condenser or expelled out by the vacuum system. The reused oil is drained by oil pump in the end.







Guarantees & documentation

SINO-NSH Warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of sixteen (16) months from date of shipment or twelve (12) months after the start up of the system. SINO-NSH’s obligation under this warranty is limited to repairing or furnishing, without charge F.O.B. point of manufacture, a similar part to replace any part, which was proven to be defective within warranty period. SINO-NSH shall not in any event be held responsible for any indirect or consequential damages. The performance guarantee will be within limitations as detailed in duty & performance paragraph of this specification.

Two(2) copies of operating & maintenance manuals are supplied with each purifier. These systems are designed to operate with the utmost simplicity and is required, please contact SINO-NSH for additional charges.







Technical specifications



Item		Unit	TF-30	TF-50	TF-100	TF-150	TF-200
Flow Rate		L/H	1800	3000	6000	9000	12000
Vacuum Range		MPa	－0.06～～－0.096
Working Pressure		MPa	≤0.3
Water Ratio		PPm	≤ 100
Impurity size		µm	≤ 5
Clearness		NAS(1638)	≤ 6
Temperature Range		℃	40—80
Demulsifying Value		Μin	＜ 15
Power Supply		V	~50Hz 380V(or as needed)
Working Noise		dB	≤ 70			≤ 75
Heating Power		Kw	30	36	72	90	120
Total Power		Kw	33	39	77	98	128
Inlet(Outlet)Diameter		Mm	DN25	DN32	DN40	DN50	DN65
Net Weight		Kg	420	550	750	850	950
Size	length	Mm	1400	1550	1700	1800	1900
	width	Mm	1050	1100	1300	1400	1500
	height	Mm	1650	1700	1850	1950	2050







Another types of our oil purifier machines

TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.





About us:►We are the leading manufacture near 25 years experience and supply best quality and highest cost performance oil purification machines. Our oil purifier equipment are built by high quality raw materials with newest advanced technology by many skilled technicians and professional workers. We are honest to every customer and responsible for every machine we sold, we offer great after sales service, anytime when customer need us, no matter before or after purchase, we are available online or calling, to make a fast and instant response to customer.
►we practiced in this industry during all these years, and have rich on-site experiences too. Any on-site cases, please contact us for a solution.
►For detailed product specifications, please leave us your email or mobile no. To send you the catalog. Thank you!
