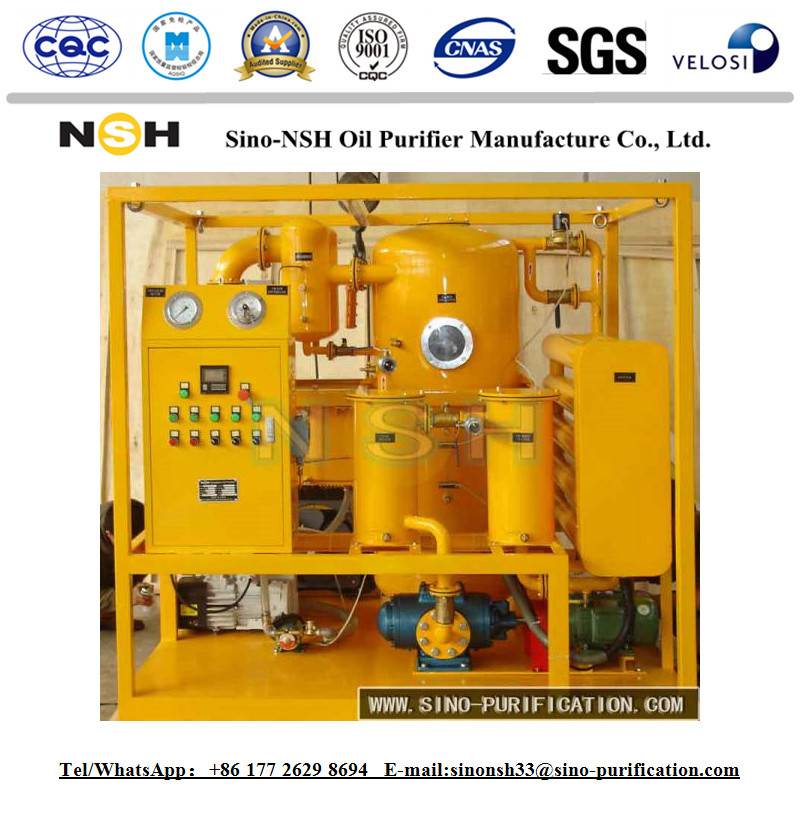

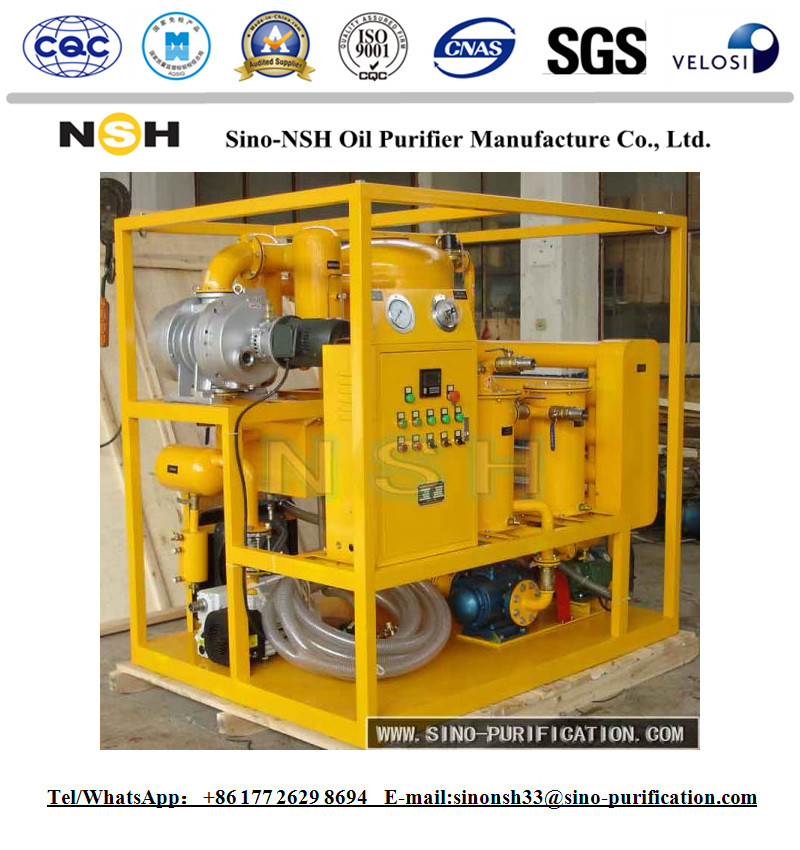

Vacuum Transformer Portable Oil Purifier 6000L/H Mobile System 135Kw Double Stage
General
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
Operating conditions:
The installation shall be designed to opeartae satifactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
Description
NSH VFD series utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Edges
Main components
a.Pre-filter:
Utilizes a 50-80mesh strainer to remove any large particles
b. Electric heater:
Oil Heater System assures less than 1.0 w/cm². During the heating process, the deterioration of the oil caused by overheating is avoided. The oil temperature can be adjusted between 20℃ to 80℃.The heater is controlled manually or automatically. The heater will stop automatically when the oil temperature reaches a certain degree. Being installed with safety protection devices, the heating system is secure and reliable. The heater will stop operation automatically when the oil volume of inlet is too low to avoid the damages of the heater.
c. Vacuum chamber:
Utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, free and dissolved gases. The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control the oil level so as to avoid the oil being
suctioned into vacuum pump in the operation. The new innovation of eliminating froth can avoid the oil being suctioned into vacuum pump.
d. Oil cooler:
Connected to between vacuum chamber and the roots pump, the vacuum pump to avoid oil entering roots pump and vacuum pump. Secondly, to cool the heated air.
e. Oil discharge pump:
Featuring high suction capabilities removes oil from the processing chamber and discharges the oil through a filter before it is directed either through the discharge port or is re-circulated within the system.
f. Fine filter:
Oil receives its final “polishing” treatment by passing through a high performance element. The filter is rated to capture99.5% of particles greater from 5 to 10 micron absolute.
g. Sampling probe:
Two (2) sampling probes shall be provided, one for the incoming oil and one for the processed oil.
h. Inlet&discharge valves:
Manual valves are provided for the inlet and discharge connection.
i. Manual re-circulation valve:
One manual valve is provided for re-circulation purposes.
j. Transformer dry-out connection:
One transformer dry-out connection.
k. Control panel:
Instrumentation, alarms& interlocks instrumentation&electrical controls are located in NEMA 12 type enclosure. Several pilot lights are provided to indicate operational status(on/off) of key components and alarm conditions.
Technical Specifications:
Item | Unit | VFD-30 | VFD-50 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | ||
Vacuum Range | MPa | -0.092~~-0.099 | |||||||
Max Vacuum Range | Pa | ≤ 50 | |||||||
Working Pressure | MPa | ≤ 0.2 | |||||||
Temperature Range | ℃ | 45-65 | |||||||
Water Content | PPm | ≤ 4 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Breakdown Voltage | Kv | 75 | |||||||
Power Supply | V | ~50Hz 380V(or as needed) | |||||||
Working Noise | dB | ≤ 72 | ≤ 78 | ||||||
Heating Power | Kw | 30 | 48 | 90 | 120 | 180 | 240 | ||
Total Power | Kw | 33 | 52 | 95 | 126 | 186 | 248 | ||
Inlet(Outlet)Diameter | Mm | DN25 | DN32 | DN40 | DN50 | DN65 | DN65 | ||
Net Weight | Kg | 350 | 480 | 750 | 1100 | 1250 | 1420 | ||
Size | length | Mm | 1500 | 1500 | 1900 | 2100 | 2400 | 2600 | |
width | Mm | 1100 | 1250 | 1400 | 1600 | 1700 | 1800 | ||
height | Mm | 1750 | 1750 | 1800 | 1900 | 1900 | 2000 |
Another types of our oil purifier machines
TF series oil purifier: Turbine oil purifier system is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contain large of water, vapor, impurities, sludge, dielectric and colloid. It can eliminate them effectively and efficiently.
LV series oil purifier: Lubrication Oil Filter System are suitable especially for purifying and restoring hydraulic oil, machine oil, coolant oil and various other lubrication oil.
GER series oil purifier: Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.
GED series oil purifier: it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.
