Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | GER-4 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 203kW | Function: | Dehydration Degassing Remove Impurities |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | PLC Waste Engine Vacuum Oil Purifier,203kw Dehydration Vacuum Oil Purifier,Mimic Diagram Vacuum Oil Purifier |
For Waste Engine Oil 203kw Dehydration Vacuum Engine Oil Regeneration Purifier
The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
Our Service:
1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade

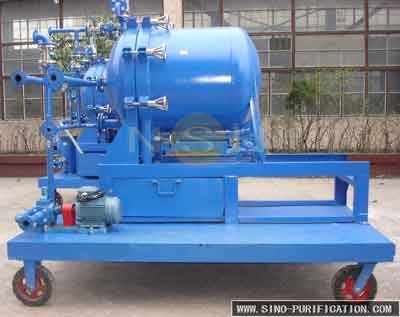

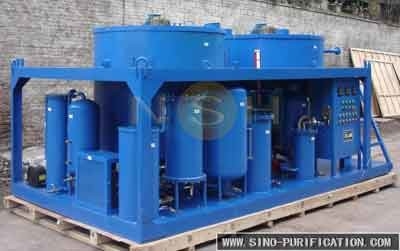

203kw Dehydration Vacuum Engine Oil Regeneration Purifier Description:
Sino-NSH-GER is regeneration system for waste engine oil including disel engine oilk, gasoline engine oil, as well as used hydraulic oil and some other machinery's lubrication oils.
Sino-NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from used oil. Physical processing method can remove solid particles, water, gas, etc. Chemical processing method allows removal of colloid, oxide, acid, pitch in the used oil. Specially, this system can restore the color of used oil and remove the scent rapidly.
Sino-NSH-GER is an environmentally friendly system, abandon traditional acid processing method, effectively solve the envirnomental pollution caused by the old technology of waste oil recycling. Various options are available for this system to improve the automation of operation.
Optional :
1. Single axle trailer,double axle trailer,trailer with enclosure doors
Rode-worthy, 2 pneumatic tyres or 4 pneumatic tyres, pre-leg, two-eye, brake, rear lights,etc
2. Separated operation room
With inspection window, air conditioning, operation desktop, storage sapce, etc, any custom option
3. Explosion-proof
Tailored according to usage, i.e: Exd II BT4 or Exd II CT4
4. Full automatic
PLC, touch screen/text screen/mimic diagram, data monitoring.
5. Steel enclosure shield
Weather-proof, steel cover, horizontal/vertical doors, hydraulic supports
6. Aluminum enclosure shield
Weather-proof, aluminum cover, horizontal/vertical doors, hydraulic supports
7. Station with forklifts hole type
Thicken chassis, forklifts hole, hoisting eyes on top, etc.
8. Tailored
Available in kinds requirements
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
203kw Dehydration Vacuum Engine Oil Regeneration Purifier Technical Parameters:
Parameter | Value | |||||
GER-1 | GER-2 | GER-3 | GER-4 | GER-5 | ||
Capacity, liters/hour | 2000 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 72 | 18 | 30 | 45 | 90 | |
Total Power, kW | 81 | 21 | 35 | 50 | 96 | |
Power supply | Fully Customizable | |||||
Outlet Diameter/Inlet Diameter, mm | 40 | 40 | 40 | 40 | 40 | |
Recovery Rate, % | 70~90 | |||||
Dimensions | Reaction Sytem, mm | 3500x1900x2100~5600x2100x2300 | ||||
Filtration Sytem, mm | 2*2800x1400x2000~2*3200x1600x2100 | |||||
Exhaust Gas Processing, mm | 950x2000x3300 | |||||
Weight(without trailer), kg | 2500 | 3500 | 4500 | 5500 | 6000 |
Company Profile:
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.
NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making purification equipments. NSH passed the approval of the ISO 9001 quality system and become the main manufacture base of purification machine in China
NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.
PS: we accept customization, welcome to inquiry!!!
