Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | GER-1 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Power: | 81kW | Working Method: | Automatic |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Automatic Hydraulic Vacuum Oil Purifier,81kw Hydraulic Vacuum Oil Purifier,2000liters/H Vacuum Oil Purifier |

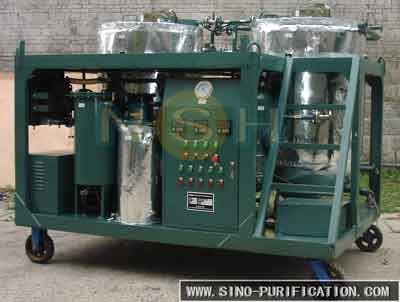

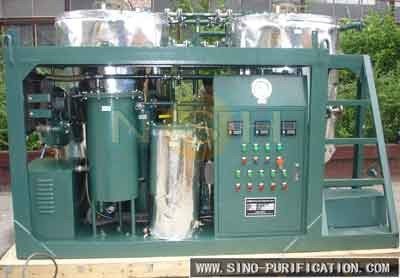

81kw Automatic Vacuum Engine Oil Regeneration Plant Purifier For Hydraulic Oil
81kw Vacuum Engine Oil Regeneration Plant Purifier Description:
Sino-NSH-GER is regeneration system for waste engine oil including disel engine oilk, gasoline engine oil, as well as used hydraulic oil and some other machinery's lubrication oils.
Sino-NSH-GER is designed with the combination technology of physical and chemical processing, can effectively remove aging products and contaminants from used oil. Physical processing method can remove solid particles, water, gas, etc. Chemical processing method allows removal of colloid, oxide, acid, pitch in the used oil. Specially, this system can restore the color of used oil and remove the scent rapidly.
Sino-NSH-GER is an environmentally friendly system, abandon traditional acid processing method, effectively solve the envirnomental pollution caused by the old technology of waste oil recycling. Various options are available for this system to improve the automation of operation.
81kw Vacuum Engine Oil Regeneration Plant Purifier Technical Parameters:
Parameter | Value | |||||
GER-1 | GER-2 | GER-3 | GER-4 | GER-5 | ||
Capacity, liters/hour | 2000 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 72 | 18 | 30 | 45 | 90 | |
Total Power, kW | 81 | 21 | 35 | 50 | 96 | |
Power supply | Fully Customizable | |||||
Outlet Diameter/Inlet Diameter, mm | 40 | 40 | 40 | 40 | 40 | |
Recovery Rate, % | 70~90 | |||||
Dimensions | Reaction Sytem, mm | 3500x1900x2100~5600x2100x2300 | ||||
Filtration Sytem, mm | 2*2800x1400x2000~2*3200x1600x2100 | |||||
Exhaust Gas Processing, mm | 950x2000x3300 | |||||
Weight(without trailer), kg | 2500 | 3500 | 4500 | 5500 | 6000 |
Our Service:
1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
What Are Some Contaminants of Oil?
Moisture, Solid particles, Gases and fumes, Asphalt-resinous paraffin deposits, By-products of combustion, Acids and varnishes, Oil sludge, Metallic particles, Minerals and dirt, Unsaturated hydrocarbons, Metal oxides, Poly-aromatic hydrocarbons, Additive remnants, By-products of oil decomposing, Fuel
Notice:
1. Switch on the power supply, the ground cable must be connected before operation.
2. Before operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise it will burn out the heater, or it will explosive.
Other Models Purifier Machines:
TF Series: |
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties. |
LV Series: |
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils. |
FV Series: |
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set. |
GER Series: |
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery. |
GED series: |
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
Parameters | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
Dielectric Strength, Kv |
≥75 | |||||||
Filtration Fineness, um |
≤5( or 1-5 as needed ) | |||||||
Gas Content, % |
≤0.1 |
Ps: we accept customization, welcome to inquiry!!!
