Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-200 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 3kw | Function: | Dehydration |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 3kw Dehydration Lubrication Oil Purifier,SGS Trailer Lubrication Oil Purifier,Lubrication Oil Purifier 100L/H |

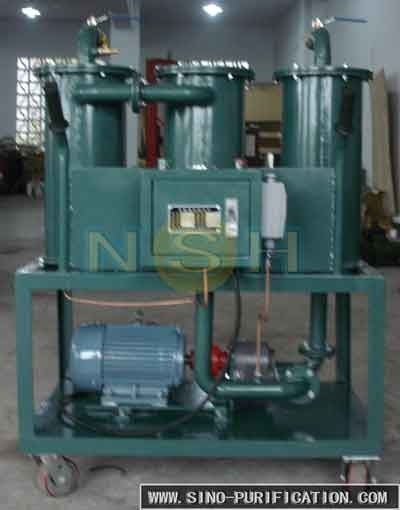

Mobile Trailer Type 3kw Dehydration Protable Precision Lubrication Oil Purifier
Our Service:
1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good .
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade.
3kw Dehydration Protable Precision Lubrication Oil Purifier Function:
The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 |
1950 |
3kw Dehydration Protable Precision Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
TF Series Turbine Oil Purifier:
NSH-TF-Z Coalescence and Separation Turbine Oil Purifier |
Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc. Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade. Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation. |
NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant |
Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils. Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water. Various capacities are avaliable for this system, and some optional devices such as -PLC control system, Container structure, etc. |
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Ps: we accept customization, welcome to inquiry!!!
