Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 1.5kW | Product Capacity: | 6000L/h |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 1.5kw Dehydration Portable Oil Purifier,Power Station Portable Oil Purifier,Portable Oil Purifier 6000L/H |

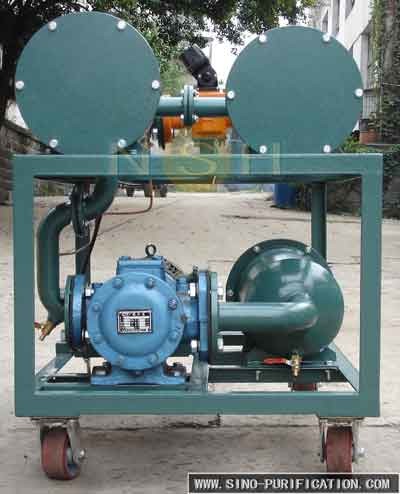

Power Station Used 1.5kw Dehydration Protable Precision Lubrication Oil Purifier
What is Oil Purifier?
Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.
Order Tips:
If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.
1.5kw Dehydration Protable Precision Lubrication Description:
Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.
1.5kw Dehydration Protable Precision Lubrication Usage:
-It can be used for oil filtering and oil filling on site for all kinds of oil-immersed transformer oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker.
-It can be used for hot oil cycle drying on site for the above equipment, especially for hot oil cycle drying on site for oil-immersed current and voltage transformer and high-voltage oil-less circuit breaker
-It can also be used for the regeneration and purification of mildly deteriorated transformer oil, so that its performance reaches the qualified oil standard.
- It can also be used in power plant, power station, power company, transformation industry, metallurgy, petrochemical machinery, transportation and railway industries
1.5kw Dehydration Protable Precision Lubrication Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Filter maintenance:
1. Check the blocking of the filter element
2. In the case of no blocking 1 to 3 months to replace or clean the filter element, at the same time empty the shell visceral oil, clean the interior
3. Regular replacement of the filter
4. Can not bring foreign bodies
Ps: we accept customization, welcome to inquiry!!!
