Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-200 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 3kW | Capacity: | 12000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Anti Explosion Dehydration Oil Purifier,3kw Dehydration Portable Oil Purifier,Portable Oil Purifier 12000L/H |

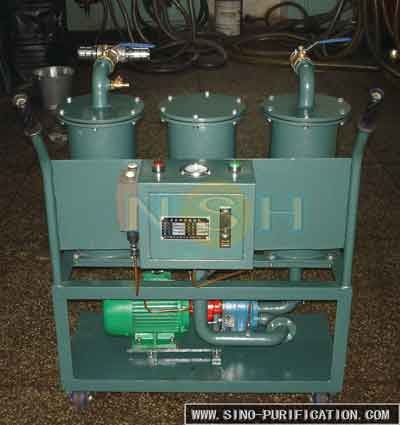

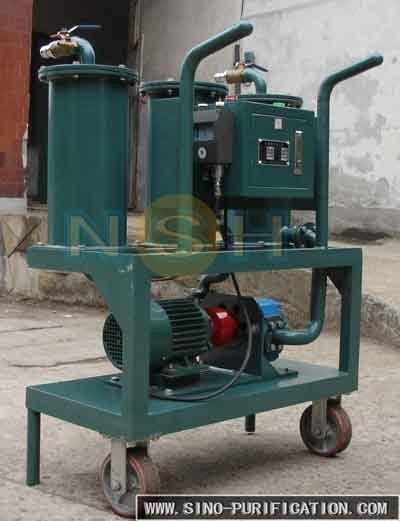

3kw Anti-Explosion Dehydration Protable Precision Lubrication Oil Purifier
3kw Protable Precision Lubrication Oil Purifier Description:
Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.
3kw Protable Precision Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Advantages:
1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. Multi-usage
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Optional Auxiliary Equipment:
1. Oil tester
2. Water content tester
Accuracy: Aw0-1, measure scope: 0-100ppm, Output: one is ppm, the other is temperature
3.SINO-NSH digital flow meter
Accuracy:1, test range: 300-30000(L/H), application: water,oil,alcohol,liquid, working pressure: 0-25(Mpa), working temperature: 0-120(℃)
4. SINO-NSH particle count meter
5. Foam level detector
When there id foam in the tank and foam reahesa certain level, a singal will be sent to the magnetic valve, the magnetic valve will automatically shut on. The foam will be removed quickly, after removing foa, the magnetic valve will shut off.
6. SINO-NSH-PLC with touch screen and data monitor
Pre-set programmable logical control. Touch screen is installed on the control cabinet and programmed to provide a simplified flow diagram showing all maior components. All operating controls shall be located on th eflow diagram, and maior function are controlled and adjusted by the touch of screen. It allows maximum real-time feedback of collecting data and value on the screen(function customizable).
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
Ps: we accept customization, welcome to inquiry!!!
