Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-80 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 1.5kW | Capacity: | 4800L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 1.5kw Portable Oil Purifier,Portable Oil Purifier 4800L/H,Double Stage Portable Oil Purifier |

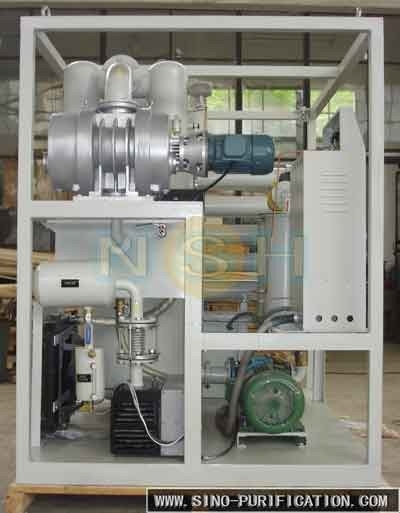

With Water Content Tester 1.5kw Protable Precision Lubrication Oil Purifier
1.5kw Protable Precision Lubrication Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
The Reason of Contamination:
1. Transformer oil under the action of thermoelectric field, oil and oxygen contact is gradually oxidized into various oxides and acids, alcohols and other forms of insoluble gum.
2. Due to the leakage of the system, the seal is not strict, the oil is in heat load for a long time, and the open oil storage and other reasons, the water and gas in the air settle in the oil, resulting in water and gas in the oil.
1.5kw Protable Precision Lubrication Oil Purifier Description:
Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.
1.5kw Protable Precision Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Ps: we accept customization, welcome to inquiry!!!
