Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-150 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 2.2kW | Capacity: | 9000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Degassing Dehydration Portable Oil Purifier,2.2kw Portable Oil Purifier,Portable Oil Purifier 9000L/H |

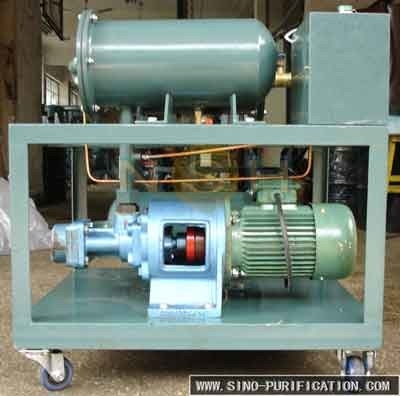

2.2kw Degassing Dehydration Protable Precision Lubrication Oil Purifier
2.2kw Protable Precision Lubrication Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
2.2kw Protable Precision Lubrication Oil Purifier Description:
Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.
2.2kw Protable Precision Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Ps: we accept customization, welcome to inquiry!!!
