Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | PF-80 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Total Power: | 1.5kW | Capacity: | 4800L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | 1.5kw Portable Oil Purifier,Remove Dissolved Gas Portable Oil Purifier,Portable Oil Purifier 4800L/H |
Remove Dissolved Gas Water 1.5kw Protable Precision Lubrication Oil Purifier
What is Oil Purifier?
Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electric
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

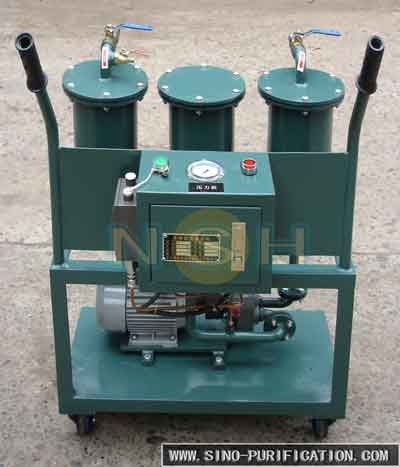

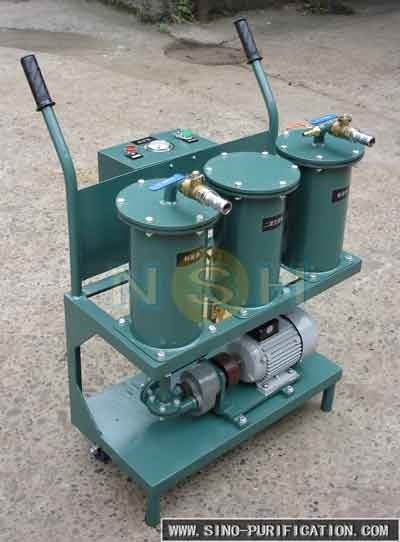

1.5kw Protable Precision Lubrication Oil Purifier Description:
Sino-NSH-PF is a portable multi-stage high precision oil purification equipment.
Sino-NSH-PF is mainly used to the negative mechanical impurities. Because of flexibility and portability, it is widely usd in the fields of power tation, petrochemical industry, metallurgy, mechanical engineering etc. for oil filling, oil pumping as well as high precision purifying and pipe cleaning.
1.5kw Protable Precision Lubrication Oil Purifier Technical Parameters:
Parameter | Value | |||||||
PF-30 | PF-50 | PF-80 | PF-100 | PF-125 | PF-150 | PF-200 | ||
Capacity, liters/hour | 1800 | 3000 | 4800 | 6000 | 7500 | 9000 | 12000 | |
Total Power, kW | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | |
Power supply | Fully Customizable | |||||||
Height, m | ≥15 | |||||||
Inlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Outlet Diameter, mm | 25 | 32 | 32 | 40 | 40 | 50 | 50 | |
Weight(without trailer), kg | 100 | 115 | 130 | 140 | 165 | 180 | 200 | |
Processed Oil Spec | Cleaness NAS(1638) | ≤6 | ||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Ps: we accept customization, welcome to inquiry!!!
