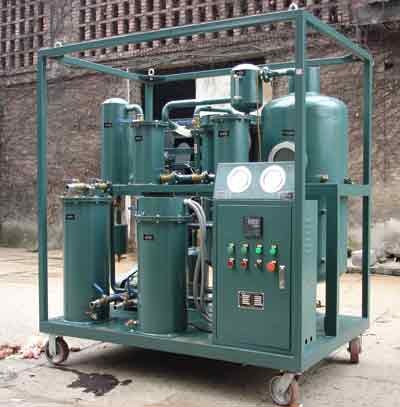

35kw Degassing Vacuum Transformer Oil Purifier 1800L/H

Basic Information

Place of Origin:	China
Brand Name:	SINO-NSH
Certification:	CE, ISO,SGS, SASO, SONCAP
Model Number:	LV-30

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Total Power:	35kW	Product Capacity:	1800L/h
Color:	Custom	Power Supply:	Fully Customizable
Material:	Stainless Steel/Carbon Steel	Warranty:	1years
After Warranty Service::	Video Technical Support, Online Support	Product Name:	Double-Stage Vacuum Transformer Oil Purifier
Highlight:	35kw Degassing Transformer Oil Purifier , Degassing Vacuum Transformer Oil Purifier , Transformer Oil Purifier 1800L/H

Mine Industry With Oil Tester 35kw Degassing Vacuum Lubricating Oil Purifier

Where do Contaminants Come from in Oil?

1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers

Corollary Equipment-VR Vacuum Pump Set:

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter		Value
Parameter		VR-30	VR-70	VR-150	VR-300	VR-600	VR-900
Capacity, liters/hour		100	250	500	1000	2000	3000
Total Power, kW		3	3	5	7	8	13
Power supply		Fully Customizable
Maximum Vacuum Range,Pa		0.06
Outlet Diameter, mm		32	32	40	40	50	65
Dimensions	length, mm	900	550	1000	1200	1500	1950
	width, mm	800	900	800	800	1000	1800
	height, mm	1200	800	1200	1200	1200	1300
Weight(without trailer), kg		450	550	600	900	950	1950

70W 18000L/H Vacuum Insulation Oil Purifier Description

Vacuum Lubricating Oil Purifier Technical Parameters:

Parameter		Value
Parameter		LV-10	LV-20	LV-30	LV-50	LV-100	LV-150	LV-200
Capacity, liters/hour		600	1200	1800	3000	6000	9000	12000
Heating Power, kW		15	18	30	45	90	120	180
Total Power, kW		17	21	35	50	96	126	186
Power supply		Fully Customizable
Inlet Diameter, mm		20	20	20	25	40	50	65
Outlet Diameter, mm		20	20	20	25	40	50	65
Dimensions (without trailer)	length, mm	1350	1500	1550	1900	2200	2400	2900
	width, mm	1100	1200	1250	1400	1500	1600	1800
	height, mm	1700	1750	1800	1800	1850	1900	2000
Weight(without trailer), kg		600	800	900	1150	1500	1700	2400
Processed Oil Spec	Water Content, ppm	≤100
	Dielectric Strength, Kv	≤6
	Filtration Fineness, um	≤5( or 1-5 as needed )

35kw Degassing Vacuum Transformer Oil Purifier 1800L/H 0

Other Models Oil Purifier:

TF Series:

TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties.

FV Series:

LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set.

GER Series:

Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery.

GED series:

it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality.

Notice:

1. Switch on the power supply, the ground cable must be connected before operation.

2. Before operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.

3. When there is no oil circulation, do not open the heater, otherwise it will burn out the heater, or it will explosive.

PS: we accept customization, welcome to inquiry!!
