| Place of Origin: | China |
|---|---|
| Brand Name: | SINO-NSH |
| Certification: | CE, ISO,SGS, SASO, SONCAP |
| Model Number: | TF-150 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Total Power: | 78kW | Capacity: | 9000L/H |
|---|---|---|---|
| Color: | Custom | Power Supply: | Fully Customizable |
| Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
| After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
| High Light: | Degassing Vacuum Turbine Oil Purifier,Dehydration Degassing Turbine Oil Purifier,PLC Degassing Turbine Oil Purifier |
||

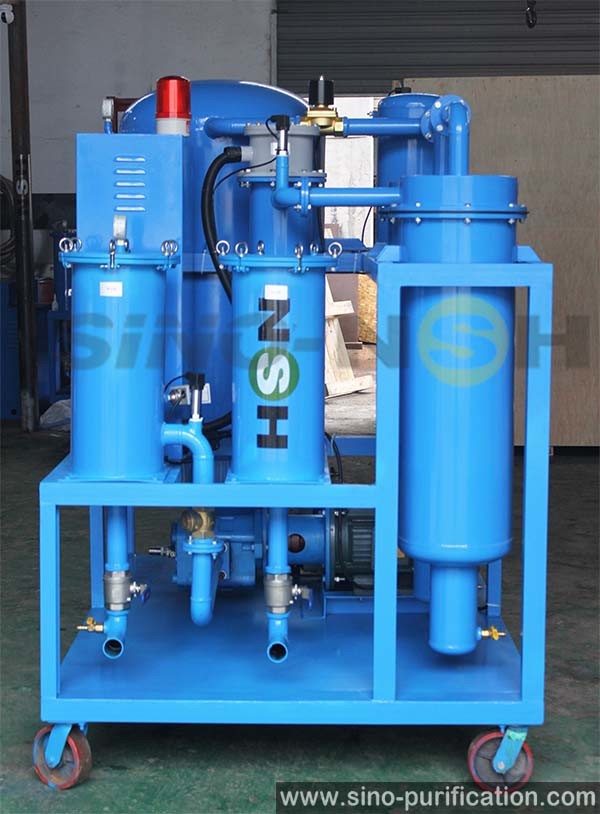

With Foam Level Detector 78kw Dehydration Degassing Vacuum Turbine Oil Purifier
Purifier for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.
Vacuum Turbine Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
| Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
| Dielectric Strength, Kv | ≥6 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
| Gas Content, % | ≤15 | |||||||
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value | ||||||
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
| Power supply | Fully Customizable | ||||||
| Maximum Vacuum Range,Pa | 0.06 | ||||||
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 | |
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
