Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | TF-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Power: | 53kW | Capacity: | 6000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Degassing Vacuum Turbine Oil Purifier,Dehydration Degassing Turbine Oil Purifier,PLC Degassing Turbine Oil Purifier |

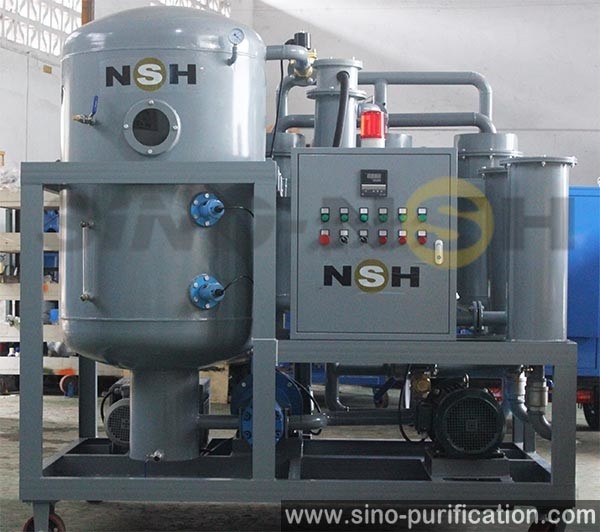

Newly Type 53kw With PLC Degassing Dehydration Vacuum Turbine Oil Purifier
purifier for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Vacuum Turbine Oil Purifier Description:
-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.
Vacuum Turbine Oil Purifier Technical Parameters:
Parameter | Value | |||||||
TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
Power supply | Fully Customizable | |||||||
Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
Dielectric Strength, Kv | ≥6 | |||||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
Gas Content, % | ≤15 |
Other Models of TF Series Turbine Oil Purifier:
NSH-TF-E Explosion-proof Turbine Oil Purifier |
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries. NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level. |
NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier |
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation. Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions. With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage. |
NSH-TF-Z Coalescence and Separation Turbine Oil Purifier |
Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc. Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade. Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation. |
NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant |
Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils. Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water. Various capacities are avaliable for this system, and some optional devices such as PLC control system, Container structure, etc. |
