Multifunctional Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier

Basic Information

Place of Origin:	China
Brand Name:	SINO-NSH
Certification:	CE, ISO,SGS, SASO, SONCAP
Model Number:	TF-200

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Power:	103kW	Capacity:	12000L/H
Color:	Custom	Power Supply:	Fully Customizable
Material:	Stainless Steel/Carbon Steel	Warranty:	1years
After Warranty Service::	Video Technical Support, Online Support	Product Name:	Double-Stage Vacuum Transformer Oil Purifier
Highlight:	Degassing Vacuum Turbine Oil Purifier , Dehydration Degassing Turbine Oil Purifier , PLC Degassing Turbine Oil Purifier

Multifunctional Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier

Purifier for Transformer Oil/Insulation Oil:

VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine

VF series-- Single-Stage Vacuum Transformer oil Filtration machine.

Working Principle:

1.Vacuum oil purifier is designed according to the boiling point of water and oil. It is composed of vacuum heating tank, fine filter, primary filter, vacuum pump, exhaust oil pump and electrical cabinet.
2. Vacuum pump will air out creating vacuum in the vacuum tank, the oil under the action of atmospheric pressure, oil after entrance pipe into the prefilter to remove larger particles, and then enter the heating tank, after heated to a temperature of 40-75 ℃ of oil into the vacuum tank, oil in water evaporate into water vapor rapidly and continuously in the vacuum pump oil water separator, The water vapor in the separator is cooled and reduced to water before being released.
3. The oil in the vacuum heating tank is discharged into the fine filter by the exhaust pump through the filter element to filter out the particulate impurities. In order to complete the vacuum filter quickly remove impurities in the oil, water, gas, the whole process, so that the clean oil discharged from the exit of the machine.

Vacuum Turbine Oil Purifier Description:

-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.

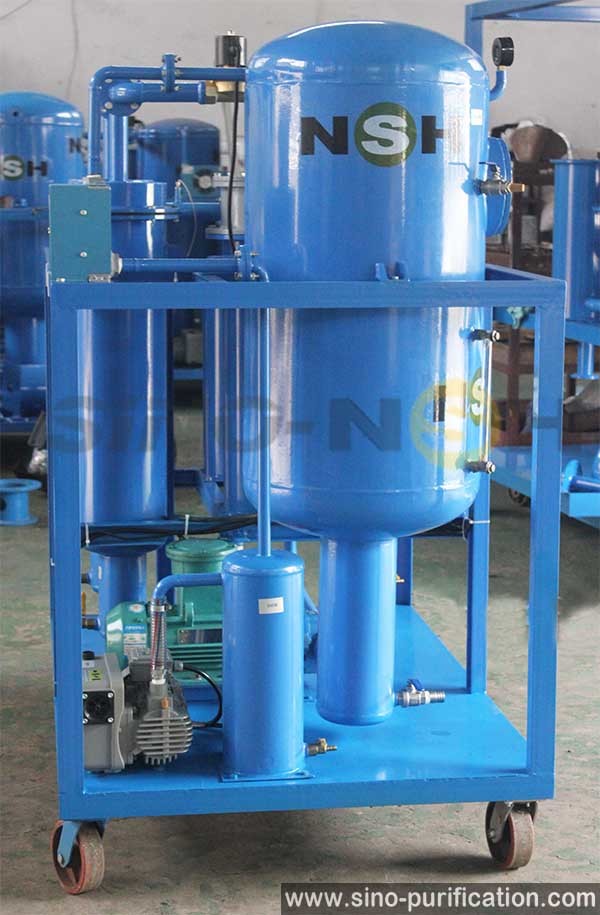

Multifunctional Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier 0

Vacuum Turbine Oil Purifier Technical Parameters:

Parameter		Value
Parameter		TF-20	TF-30	TF-50	TF-100	TF-150	TF-200	TF-300
Capacity, liters/hour		1200	1800	3000	6000	9000	12000	18000
Heating Power, kW		15	24	30	48	72	96	120
Total Power, kW		18	17	34	53	78	103	129
Power supply		Fully Customizable
Inlet Diameter, mm		25	25	32	40	40	50	65
Outlet Diameter, mm		25	25	32	40	40	50	65
Dimensions (without trailer)	length, mm	1300	1300	1450	1650	1850	2000	2400
	width, mm	1900	900	1000	1150	1250	1350	1700
	height, mm	1460	1460	1510	1560	1610	1660	1760
Weight(without trailer), kg		300	330	450	650	750	900	1500
Processed Oil Spec	Water Content, ppm	≤100
	Dielectric Strength, Kv	≥6
	Filtration Fineness, um	≤5( or 1-5 as needed )
	Gas Content, %	≤15

Other Models of TF Series Turbine Oil Purifier:

NSH-TF-Z Coalescence and Separation Turbine Oil Purifier

Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.

Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade.

Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation.

NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant

Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils.

Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water.
Various capacities are avaliable for this system, and some optional devices such as

PLC control system, Container structure, etc.

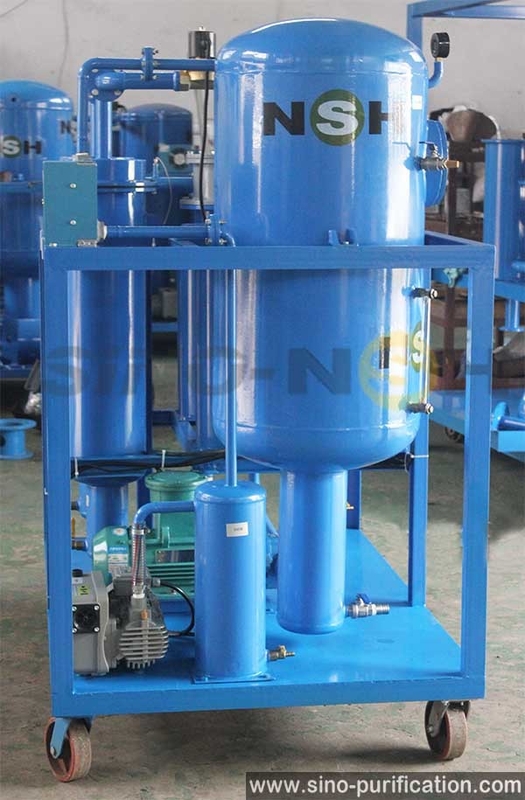

Multifunctional Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier 1

Multifunctional Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier 2
