Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier
Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: TF-300
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Total Power: 129kW Capacity: 18000L/H
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Degassing Vacuum Turbine Oil Purifier

,

Dehydration Degassing Turbine Oil Purifier

,

PLC Degassing Turbine Oil Purifier

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier





Purifier for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine





Vacuum Turbine Oil Purifier Description:



-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.

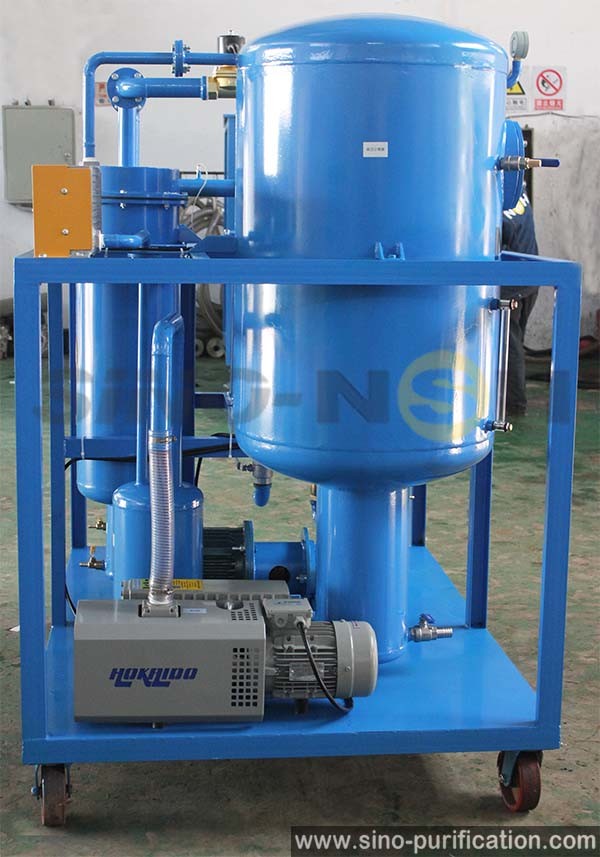

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier 0





Vacuum Turbine Oil Purifier Technical Parameters:



Parameter Value
TF-20 TF-30 TF-50 TF-100 TF-150 TF-200 TF-300
Capacity, liters/hour 1200 1800 3000 6000 9000 12000 18000
Heating Power, kW 15 24 30 48 72 96 120
Total Power, kW 18 17 34 53 78 103 129
Power supply Fully Customizable
Inlet Diameter, mm 25 25 32 40 40 50 65
Outlet Diameter, mm 25 25 32 40 40 50 65
Dimensions
(without trailer)		 length, mm 1300 1300 1450 1650 1850 2000 2400
width, mm 1900 900 1000 1150 1250 1350 1700
height, mm 1460 1460 1510 1560 1610 1660 1760
Weight(without trailer), kg 300 330 450 650 750 900 1500
Processed Oil Spec Water Content, ppm ≤100
Dielectric Strength, Kv ≥6
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤15





Order Process:


Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods





Notice:


1. Switch on the power supply, the ground cable must be connected before operation.
2. Before operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise it will burn out the heater, or it will explosive.





FAQ:


1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier 1

Durable 129kw Dehydration Degassing Decontamination Vacuum Turbine Oil Purifier 2
