Easy Operation Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier

Easy Operation Remove Impurities Dehydration 103kw Vacuum Turbine Oil Purifier

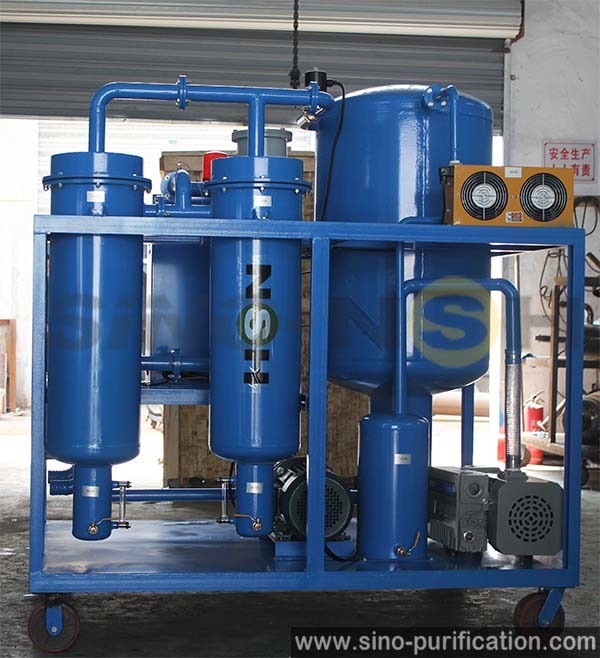

Vacuum Turbine Oil Purifier Description:

-Vacuum Turbine Oil Purifier is a filtration and dehydration unit with thermal and vacuum processing.
-Vacuum Turbine Oil Purifier is ideal for filtration and dehydration of turbine oil. This units can extend turbine oil life by removingcontaminates from oil, such as water, gas and particulates, improve the oil properties.
-Vacuum Turbine Oil Purifier combines vacuum dehydration technology and coalescence separation technologym, can effectively remove both emulsified and dissolved water from turbine oil. Fitted with specially made demulsifying device, it is capable of making turbid emulsified oil very clean. Muti-satge precision filters minimizes impurties and ensures oil cleanliness, which can reach or better than NAS 6 Grade.
-Vacuum Turbine Oil Purifier maintains an optimized structure and safe controls, as well as various types to meet the use of different working conditions.

Vacuum Turbine Oil Purifier Technical Parameters:

Vacuum Turbine Oil Purifier Advantages:

1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. Multi-usage

Tailorded Vacuum Oil Solutions:

Sino-Nsh Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.

Optional Auxiliary Equipment:

1. Oil tester
2. Water content tester
Accuracy: Aw0-1, measure scope: 0-100ppm, Output: one is ppm, the other is temperature
3.SINO-NSH digital flow meter
Accuracy:1, test range: 300-30000(L/H), application: water,oil,alcohol,liquid, working pressure: 0-25(Mpa), working temperature: 0-120(℃)
4. SINO-NSH particle count meter
5. Foam level detector
When there id foam in the tank and foam reahesa certain level, a singal will be sent to the magnetic valve, the magnetic valve will automatically shut on. The foam will be removed quickly, after removing foa, the magnetic valve will shut off.
6. SINO-NSH-PLC with touch screen and data monitor
Pre-set programmable logical control. Touch screen is installed on the control cabinet and programmed to provide a simplified flow diagram showing all maior components. All operating controls shall be located on th eflow diagram, and maior function are controlled and adjusted by the touch of screen. It allows maximum real-time feedback of collecting data and value on the screen(function customizable).
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
