Anti-Explosion Remove Impurities 103kw Vacuum Turbine Oil Purifier

Basic Information

Place of Origin:	China
Brand Name:	SINO-NSH
Certification:	CE, ISO,SGS, SASO, SONCAP
Model Number:	TF-200

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Total Power:	103kW	Product Capacity:	12000L/h
Color:	Custom	Power Supply:	Fully Customizable
Material:	Stainless Steel/Carbon Steel	Warranty:	1years
After Warranty Service::	Video Technical Support, Online Support	Product Name:	Double-Stage Vacuum Transformer Oil Purifier
Highlight:	Degassing Vacuum Turbine Oil Purifier , Dehydration Degassing Turbine Oil Purifier , PLC Degassing Turbine Oil Purifier

Anti-Explosion Remove Impurities

Our Service:

1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good .
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade.

103kw Vacuum Turbine Oil Purifier Function:

The function of vacuum oil filter is to eliminate the particles, water, gas and other pollutants in the oil, and reduce the acid value. Make the oil dielectric strength, water content, gas content, acid value, dielectric loss and other key indicators to meet the requirements of qualified specifications, as far as possible to ensure the safe operation of users' electrical equipment.

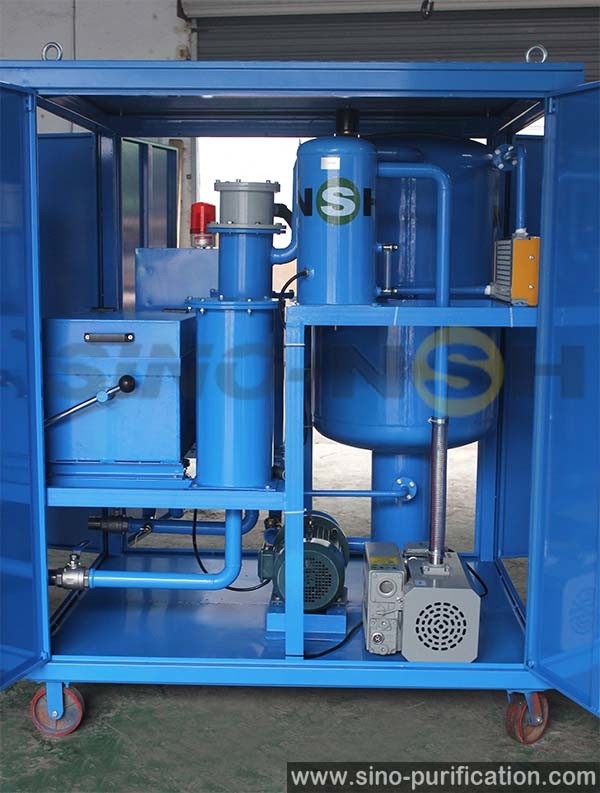

Anti-Explosion Remove Impurities 103kw Vacuum Turbine Oil Purifier 0

Corollary Equipment-VR Vacuum Pump Set:

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter		Value
Parameter		VR-30	VR-70	VR-150	VR-300	VR-600	VR-900
Capacity, liters/hour		100	250	500	1000	2000	3000
Total Power, kW		3	3	5	7	8	13
Power supply		Fully Customizable
Maximum Vacuum Range,Pa		0.06
Outlet Diameter, mm		32	32	40	40	50	65
Dimensions	length, mm	900	550	1000	1200	1500	1950
	width, mm	800	900	800	800	1000	1800
	height, mm	1200	800	1200	1200	1200	1300
Weight(without trailer), kg		450	550	600	900	950	1950

103kw Vacuum Turbine Oil Purifier Technical Parameters:

Parameter		Value
Parameter		TF-20	TF-30	TF-50	TF-100	TF-150	TF-200	TF-300
Capacity, liters/hour		1200	1800	3000	6000	9000	12000	18000
Heating Power, kW		15	24	30	48	72	96	120
Total Power, kW		18	17	34	53	78	103	129
Power supply		Fully Customizable
Inlet Diameter, mm		25	25	32	40	40	50	65
Outlet Diameter, mm		25	25	32	40	40	50	65
Dimensions (without trailer)	length, mm	1300	1300	1450	1650	1850	2000	2400
	width, mm	1900	900	1000	1150	1250	1350	1700
	height, mm	1460	1460	1510	1560	1610	1660	1760
Weight(without trailer), kg		300	330	450	650	750	900	1500
Processed Oil Spec	Water Content, ppm	≤100
	Dielectric Strength, Kv	≥6
	Filtration Fineness, um	≤5( or 1-5 as needed )
	Gas Content, %	≤15

Other Models of TF Series Turbine Oil Purifier:

NSH-TF-E Explosion-proof Turbine Oil Purifier

Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.

NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level.

NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier

Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.

Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.

With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage.

NSH-TF-Z Coalescence and Separation Turbine Oil Purifier

Sino-NSH-TF-Z is a dehydration and filtration unit, especially suits for purification of turbine oil and fuel, etc.

Sino-NSH-TF-Z combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. With specially designed filter elements, it can efficiently separate water from oil quickly, break the emulsification, as well as remove particulate pollutants. After separation, the water content can be reduced to less than 100 PPM, and the cleanliness can reach or better than NAS4~6 Grade.

Sino-NSH-TF-Z can effectively save operating costs as no heating or vacuum is required, and it is designed for continuous operation and unattened operation.

NSH-TC Turbine Oil Vacuum Purifier and Centrifugal Combination Plant

Sino-NSH-TC is a comlete oil purification system integrating vacuum oil purifier and centrifugal separator, widely used for the filtration and purification of turbine oil, as well as other lubricant oils.

Sino-NSH-TC adopts vacuum and centrifugal technology, designed to meet the divers needs of customers. It can effectively remove free water, dissolved water as well as emulsified water, reduce the water content to less than 100 PM. Also remove the particulate contamination from oil with high precision centrifugal separator. Centrifugal separator is able to remove 99.95% of solid contaminates and 99.4% of water.
Various capacities are avaliable for this system, and some optional devices such as

PLC control system, Container structure, etc.

Anti-Explosion Remove Impurities 103kw Vacuum Turbine Oil Purifier 1

Anti-Explosion Remove Impurities 103kw Vacuum Turbine Oil Purifier 2
