| Place of Origin: | China |
|---|---|
| Brand Name: | SINO-NSH |
| Certification: | CE, ISO,SGS, SASO, SONCAP |
| Model Number: | TF-150 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Total Power: | 78kW | Capacity: | 9000L/H |
|---|---|---|---|
| Color: | Custom | Power Supply: | Fully Customizable |
| Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
| After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
| High Light: | Degassing Vacuum Turbine Oil Purifier,Dehydration Degassing Turbine Oil Purifier,PLC Degassing Turbine Oil Purifier |
||

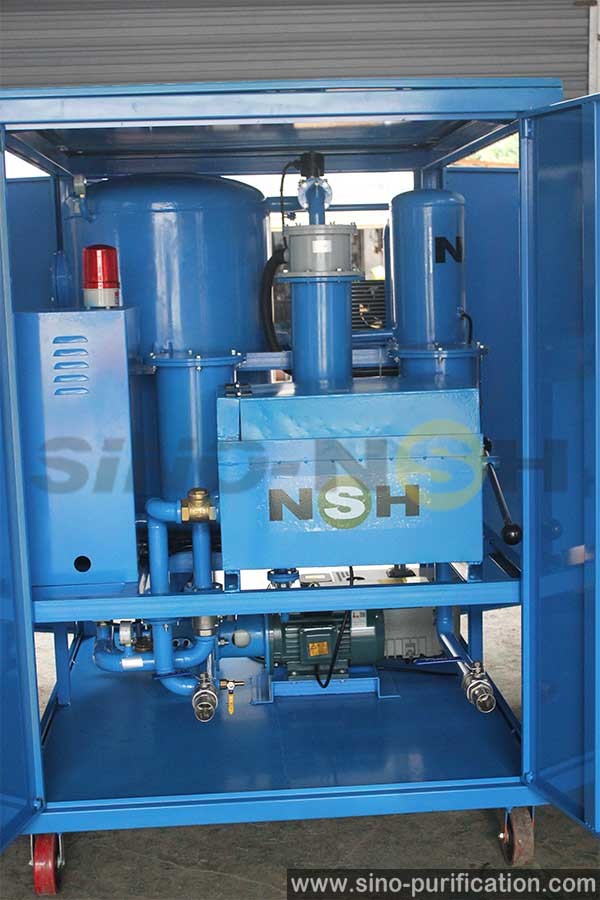

Reliable Quality 78kw Anti-Explosion Dehydration Vacuum Turbine Oil Purifier
Company Profile:
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.
NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making purification equipments. NSH passed the approval of the ISO 9001 quality system and become the main manufacture base of purification machine in China
NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.
Turbine Oil Purifier Features:
1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
Turbine Oil Purifier Technical Parameters:
| Parameter | Value | |||||||
| TF-20 | TF-30 | TF-50 | TF-100 | TF-150 | TF-200 | TF-300 | ||
| Capacity, liters/hour | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
| Heating Power, kW | 15 | 24 | 30 | 48 | 72 | 96 | 120 | |
| Total Power, kW | 18 | 17 | 34 | 53 | 78 | 103 | 129 | |
| Power supply | Fully Customizable | |||||||
| Inlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Outlet Diameter, mm | 25 | 25 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions (without trailer) |
length, mm | 1300 | 1300 | 1450 | 1650 | 1850 | 2000 | 2400 |
| width, mm | 1900 | 900 | 1000 | 1150 | 1250 | 1350 | 1700 | |
| height, mm | 1460 | 1460 | 1510 | 1560 | 1610 | 1660 | 1760 | |
| Weight(without trailer), kg | 300 | 330 | 450 | 650 | 750 | 900 | 1500 | |
| Processed Oil Spec | Water Content, ppm | ≤100 | ||||||
| Dielectric Strength, Kv | ≥6 | |||||||
| Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||||
| Gas Content, % | ≤15 | |||||||
Tailorded Vacuum Oil Solutions:
Sino-Nsh Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value | ||||||
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
| Power supply | Fully Customizable | ||||||
| Maximum Vacuum Range,Pa | 0.06 | ||||||
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 | |
