With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier

With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier
With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VF-100
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Power: 65kW Capacity: 6000L/H
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Multifunctional Vacuum Transformer Oil Purifier

,

Degassing Vacuum Transformer Oil Purifier

,

Enclosed Dehydration Vacuum Oil Purifier

With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier





What is Oil Purifier?


Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electric





Vacuum Transformer Oil Purifier Description:



-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.

With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier 0





Vacuum Transformer Oil Purifier Technical Parameters:



Parameter Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power supply Fully Customizable
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40
Dimensions
(without trailer)		 length, mm 1300 1400 1400 1400 1550
width, mm 900 900 900 900 1550
height, mm 1300 1300 1300 1700 1850
Weight(without trailer), kg 300 330 350 400 650
Processed Oil Spec Water Content, ppm ≤7
Dielectric Strength, Kv ≥60
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1





Corollary Equipment-VR Vacuum Pump Set:


SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter Value
VR-30 VR-70 VR-150 VR-300 VR-600 VR-900
Capacity, liters/hour 100 250 500 1000 2000 3000
Total Power, kW 3 3 5 7 8 13
Power supply Fully Customizable
Maximum Vacuum Range,Pa 0.06
Outlet Diameter, mm 32 32 40 40 50 65
Dimensions length, mm 900 550 1000 1200 1500 1950
width, mm 800 900 800 800 1000 1800
height, mm 1200 800 1200 1200 1200 1300
Weight(without trailer), kg 450 550 600 900 950 1950





Our Service:


1. 1 years warranty.
2. Provide customers with all technical drawings and materials of equipment purchased for free.
3. Strictly according to customer needs, provide customers with the best oil treatment solutions, provide good performance products.
4. Long-term preferential supply of spare parts
5. Ensure that the equipment provided with perfect processing technology, perfect testing means, equipment performance is good .
6. Long-term free technical consultation, if there is technical innovation, the supplier for users to buy free product system upgrade.

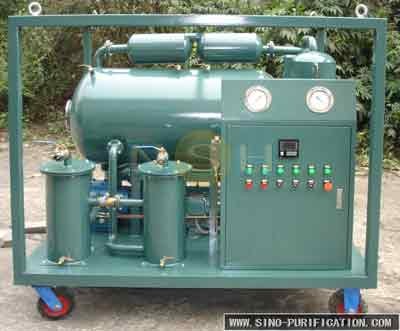

With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier 1

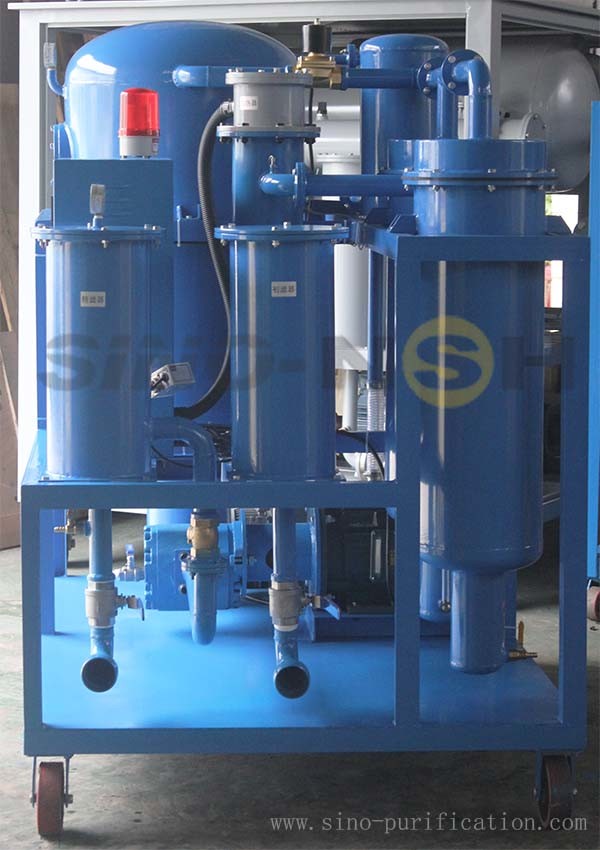

With Oil Tester Water Content Tester 65kW Vacuum Transformer Oil Purifier 2
