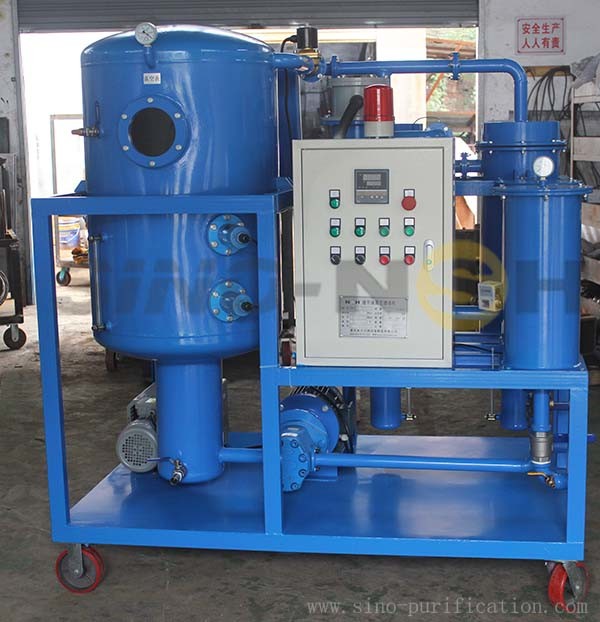

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier
Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VF-10
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Power: 11kW Capacity: 600L/H
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Multifunctional Vacuum Transformer Oil Purifier

,

Degassing Vacuum Transformer Oil Purifier

,

Enclosed Dehydration Vacuum Oil Purifier

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier





Other Optional Models for Transformer Oil/Insulation Oil:


VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine





Optional Auxiliary Equipment:


1. Breakdown voltage tester(oil tester)
2. SINO-NSH digital Hygrometer(weater content tester)
3.SINO-NSH digital flow meter
4. SINO-NSH particle count meter
5. Foam level detector
6. SINO-NSH-PLC with touch screen and data monitor
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester





Vacuum Transformer Oil Purifier Description:



-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier 0





Vacuum Transformer Oil Purifier Technical Parameters:



Parameter Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power supply Fully Customizable
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40
Dimensions
(without trailer)		 length, mm 1300 1400 1400 1400 1550
width, mm 900 900 900 900 1550
height, mm 1300 1300 1300 1700 1850
Weight(without trailer), kg 300 330 350 400 650
Processed Oil Spec Water Content, ppm ≤7
Dielectric Strength, Kv ≥60
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1





Order Process:


Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods





FAQ:


1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.

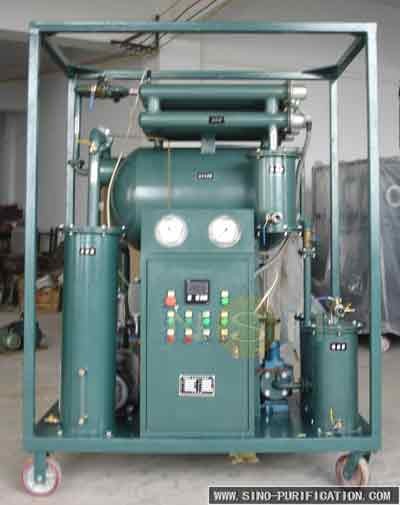

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier 1

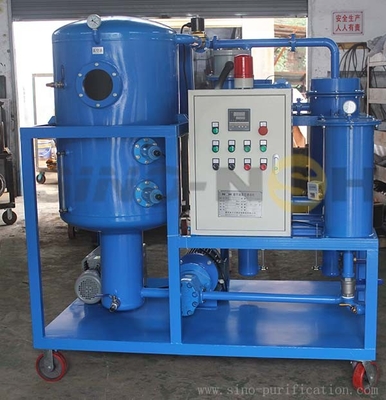

Electric Equipment Used Remove Impurities 600L/H Vacuum Transformer Oil Purifier 2
