Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VF-50 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Power: | 39kW | Capacity: | 3000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
Highlight: | Multifunctional Vacuum Transformer Oil Purifier,Degassing Vacuum Transformer Oil Purifier,Enclosed Dehydration Vacuum Oil Purifier |

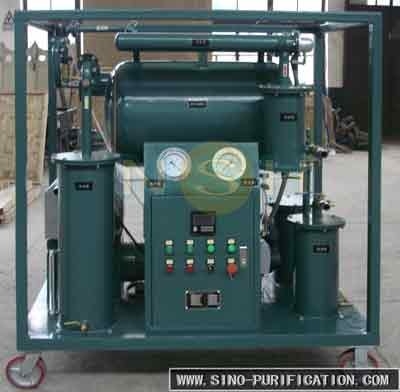

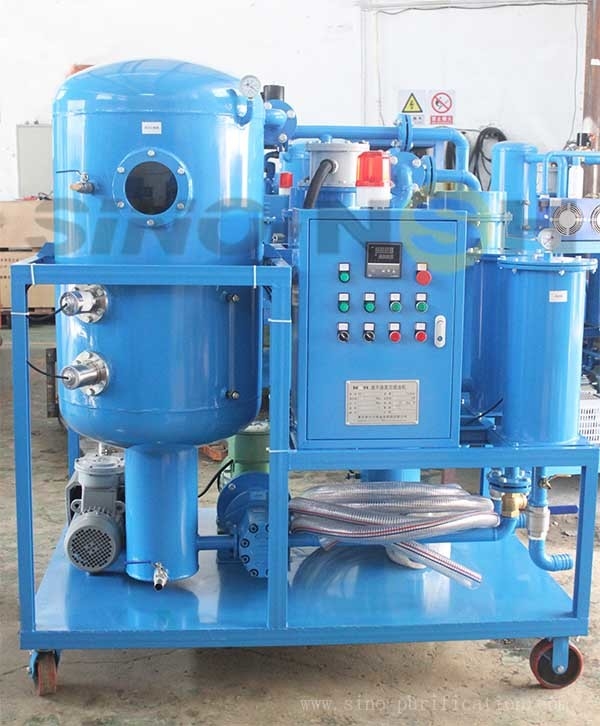

Electric Plant Used Easy Operation Degassing Vacuum Transformer Oil Purifier
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
Vacuum Transformer Oil Purifier Description:
-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.
Vacuum Transformer Oil Purifier Technical Parameters:
Parameter | Value | |||||
VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 9 | 15 | 24 | 36 | 60 | |
Total Power, kW | 11 | 17 | 26 | 39 | 65 | |
Power supply | Fully Customizable | |||||
Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Dimensions (without trailer) |
length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
width, mm | 900 | 900 | 900 | 900 | 1550 | |
height, mm | 1300 | 1300 | 1300 | 1700 | 1850 | |
Weight(without trailer), kg | 300 | 330 | 350 | 400 | 650 | |
Processed Oil Spec | Water Content, ppm | ≤7 | ||||
Dielectric Strength, Kv | ≥60 | |||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||
Gas Content, % | ≤0.1 |
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
