Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VF-100 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Power: | 65kW | Capacity: | 6000L/H |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Multifunctional Vacuum Transformer Oil Purifier,Degassing Vacuum Transformer Oil Purifier,Enclosed Dehydration Vacuum Oil Purifier |

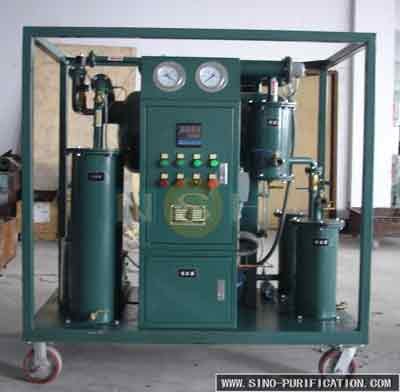

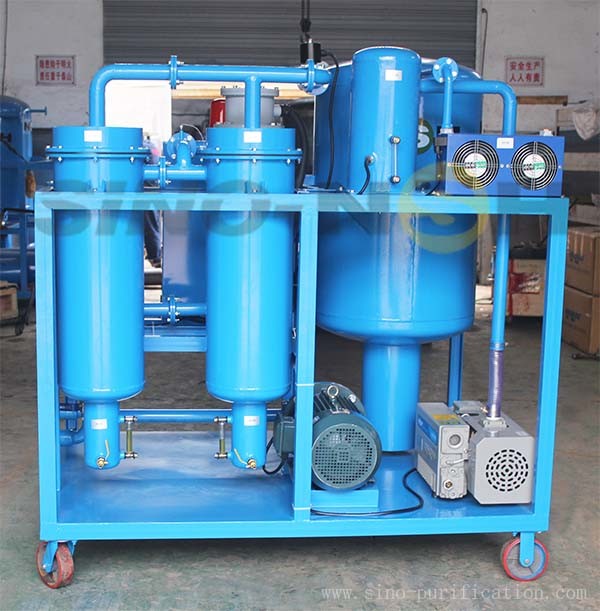

65kW Dehydration Degassing Vacuum Transformer Oil Purifier For Power Station
Vacuum Transformer Oil Purifier Characteristics:
1. Vacuum oil filter is also called vacuum efficient oil filter, oil filter, vacuum clean oil machine.
2. Using vacuum oil inlet, a tubular rotary injector is installed to reduce the resistance, speed up the rotation, and increase the oil and gas separation effect.
3. Small size, light weight, easy to move, low noise, long continuous working time, stable performance, easy to operate.
Other Optional Models for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
What is a lube oil purifier systems?
The Oil Purifier is suitable for treating turbine oil, hydraulic oil, anti-wear oil, bearing oil or high-viscosity lubricating oil, and also for purifying the oil with high water content or turbid emulsification. It can effectively dehydrating and removing impurities from old oil, final oil becomes limpid. Generally used for the purification of hydraulic oil and lubricating oil etc. When the oil contains too much water and impurities, it must be treated again.
A lube oil purifier basically purifies every type of lube oil. This can remove impurities, gas, moisture, acid, hydrocarbons etc., the filtration treatment makes it clean and good for use again. A good lube oil purifier extends the lifetime of the machinery.
It is generally applied in power plants, power stations, all industrial and mining enterprises, etc.
Vacuum Transformer Oil Purifier Description:
-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.
Vacuum Transformer Oil Purifier Technical Parameters:
Parameter | Value | |||||
VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | ||
Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | |
Heating Power, kW | 9 | 15 | 24 | 36 | 60 | |
Total Power, kW | 11 | 17 | 26 | 39 | 65 | |
Power supply | Fully Customizable | |||||
Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
Dimensions (without trailer) |
length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
width, mm | 900 | 900 | 900 | 900 | 1550 | |
height, mm | 1300 | 1300 | 1300 | 1700 | 1850 | |
Weight(without trailer), kg | 300 | 330 | 350 | 400 | 650 | |
Processed Oil Spec | Water Content, ppm | ≤7 | ||||
Dielectric Strength, Kv | ≥60 | |||||
Filtration Fineness, um | ≤5( or 1-5 as needed ) | |||||
Gas Content, % | ≤0.1 |
