Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier

Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier
Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier
Basic Information
Place of Origin: China
Brand Name: SINO-NSH
Certification: CE, ISO,SGS, SASO, SONCAP
Model Number: VF-10
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now
Power: 11kW Capacity: 600L/H
Color: Custom Power Supply: Fully Customizable
Material: Stainless Steel/Carbon Steel Warranty: 1years
After Warranty Service:: Video Technical Support, Online Support Product Name: Double-Stage Vacuum Transformer Oil Purifier
Highlight:

Multifunctional Vacuum Transformer Oil Purifier

,

Degassing Vacuum Transformer Oil Purifier

,

Enclosed Dehydration Vacuum Oil Purifier

Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier





Vacuum Transformer Oil Purifier Description:



-VF series transformer oil purifier is a dehydration and degassing unit with thermal and vacuum processing. Comparing with Sino-NSH-VFD, this series is more suitable for smaller oil quantity or smaller capacity requests.
-VF series transformer oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impuritie effectively so as to increase special indexes of insulation oil.
-VF series transformer oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 60kV.





Transformer Oil Purifier Features:


1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.

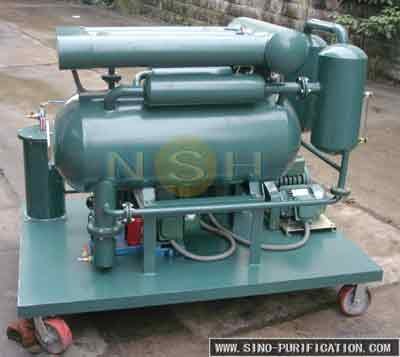

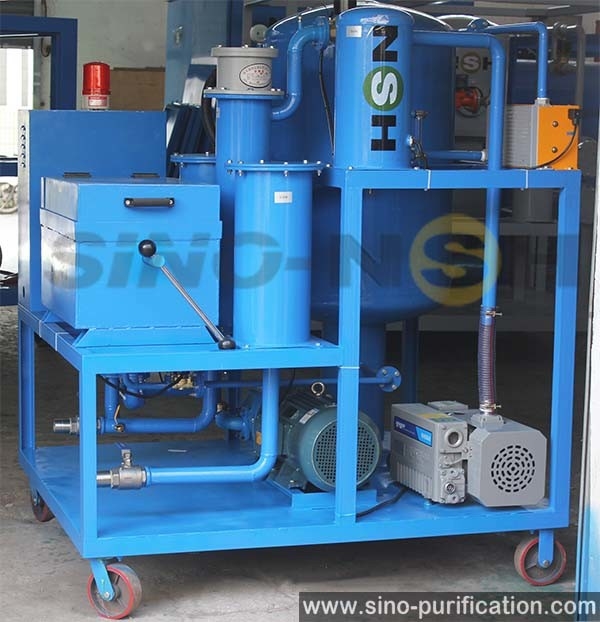

Steel Enclosure Shieled Degassing 600L/H Vacuum Transformer Oil Purifier 0





Vacuum Transformer Oil Purifier Technical Parameters:



Parameter Value
VF-10 VF-20 VF-30 VF-50 VF-100
Capacity, liters/hour 600 1200 1800 3000 6000
Heating Power, kW 9 15 24 36 60
Total Power, kW 11 17 26 39 65
Power supply Fully Customizable
Inlet Diameter, mm 25 25 25 32 40
Outlet Diameter, mm 25 25 25 32 40
Dimensions
(without trailer)		 length, mm 1300 1400 1400 1400 1550
width, mm 900 900 900 900 1550
height, mm 1300 1300 1300 1700 1850
Weight(without trailer), kg 300 330 350 400 650
Processed Oil Spec Water Content, ppm ≤7
Dielectric Strength, Kv ≥60
Filtration Fineness, um ≤5( or 1-5 as needed )
Gas Content, % ≤0.1





Optional :


1. Single axle trailer,double axle trailer,trailer with enclosure doors
Rode-worthy, 2 pneumatic tyres or 4 pneumatic tyres, pre-leg, two-eye, brake, rear lights,etc
2. Separated operation room
With inspection window, air conditioning, operation desktop, storage sapce, etc, any custom option
3. Explosion-proof
Tailored according to usage, i.e: Exd II BT4 or Exd II CT4
4. Full automatic
PLC, touch screen/text screen/mimic diagram, data monitoring.
5. Steel enclosure shield
Weather-proof, steel cover, horizontal/vertical doors, hydraulic supports
6. Aluminum enclosure shield
Weather-proof, aluminum cover, horizontal/vertical doors, hydraulic supports
7. Station with forklifts hole type
Thicken chassis, forklifts hole, hoisting eyes on top, etc.
8. Tailored
Available in kinds requirements
