Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VFD-300 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Power: | 170kW | Product Capacity: | 18000L/h |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
Highlight: | Multifunctional Vacuum Transformer Oil Purifier,Degassing Vacuum Transformer Oil Purifier,Enclosed Dehydration Vacuum Oil Purifier |

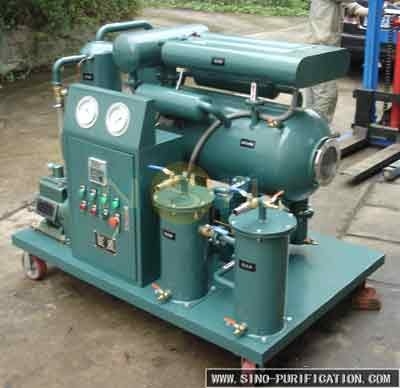

Newly Type 18000L/H Enclosed Dehydration Vacuum Transformer Oil Purifier
Where do Contaminants Come from in Oil?
1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Optional:
1. Single axle trailer,double axle trailer,trailer with enclosure doors
2. Separated operation room
3. Explosion-proof
4. Full automatic
5. Steel enclosure shield
6. Aluminum enclosure shield
7. Station with forklifts hole type
8. Tailored
70W 18000L/H Vacuum Insulation Oil Purifier Description
Double-Stage Vacuum Transformer Oil Purification Plant Technical Parameters:
Parameters | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
Dielectric Strength, Kv |
≥75 | |||||||
Filtration Fineness, um |
≤5( or 1-5 as needed ) | |||||||
Gas Content, % |
≤0.1 |
Other Models Oil Purifier:
TF Series: |
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties. |
LV Series: |
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils. |
FV Series: |
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set. |
GER Series: |
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery. |
GED series: |
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
Notice:
1. Switch on the power supply, the ground cable must be connected before operation.
2. Before operation, pay attention to the direction of motor rotation, which should conform to the arrow direction.
3. When there is no oil circulation, do not open the heater, otherwise it will burn out the heater, or it will explosive.
