Place of Origin: | China |
---|---|
Brand Name: | SINO-NSH |
Certification: | CE, ISO,SGS, SASO, SONCAP |
Model Number: | VFD-300 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiate |
Packaging Details: | Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Product Power: | 170kW | Product Capacity: | 18000L/h |
---|---|---|---|
Color: | Custom | Power Supply: | Fully Customizable |
Material: | Stainless Steel/Carbon Steel | Warranty: | 1years |
After Warranty Service:: | Video Technical Support, Online Support | Product Name: | Double-Stage Vacuum Transformer Oil Purifier |
High Light: | Multifunctional Vacuum Transformer Oil Purifier,Degassing Vacuum Transformer Oil Purifier,Enclosed Dehydration Vacuum Oil Purifier |

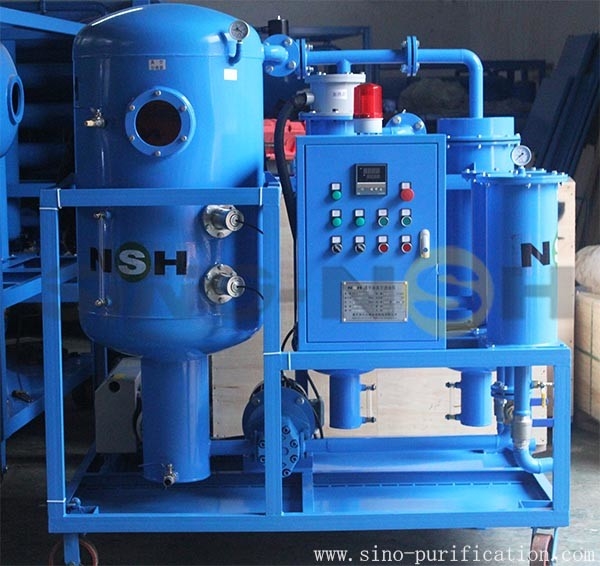

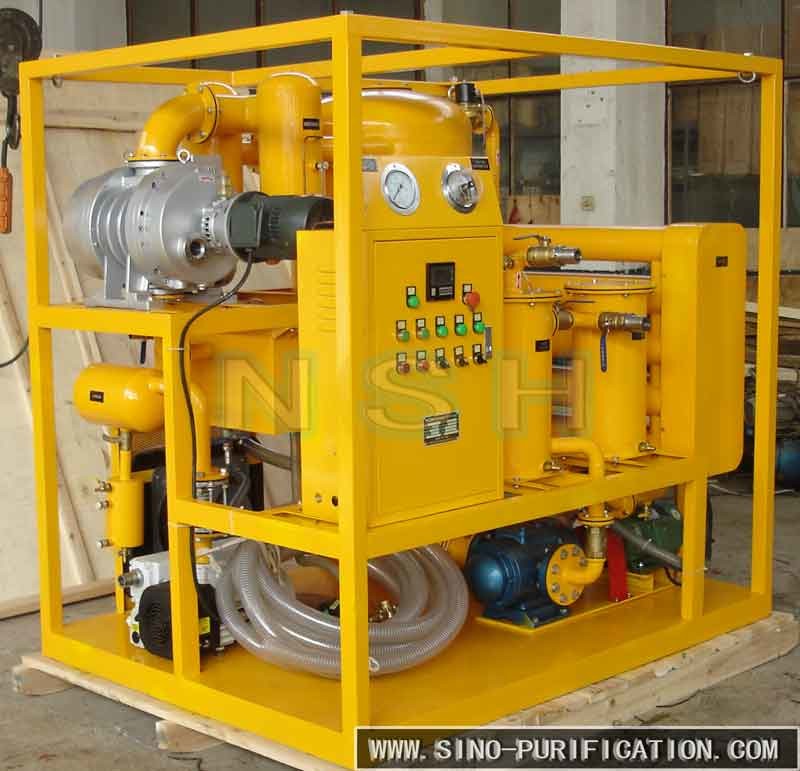

Decoloration Degassing 170kW Transformer Oil Double-Stage Vacuum Oil Purifier
Where do Contaminants Come from in Oil?
1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers
Vacuum Transformer oil Purifier Advantages:
1. Dehydration demulsification efficiency is high
Which can easily split a lot of water and remove trace water in oil.
2. Strong filtration and purification performance
Filtration accuracy can be customized.
3. Good working stability
Stable operation, reliable quality, continuous purification oil does not waste oil, flange connection does not penetrate.
4. Multi-usage
The operation is simple, scientific and reasonable.
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
Parameter | Value | ||||||
VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 | ||
Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 | |
Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 | |
Power supply | Fully Customizable | ||||||
Maximum Vacuum Range,Pa | 0.06 | ||||||
Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 | |
Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 | |
height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 | |
Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
Optional Auxiliary Equipment:
1. Breakdown voltage tester(oil tester)
2. SINO-NSH digital Hygrometer(weater content tester)
3.SINO-NSH digital flow meter
4. SINO-NSH particle count meter
5. Foam level detector
6. SINO-NSH-PLC with touch screen and data monitor
7.SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
Order Tips:
If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.
0W 18000L/H
Vacuum Insulation Oil P
urifier Descripti
Double-Stage Vacuum Transformer oil Purifier Technical Parameters:
Parameters | Value | |||||||
VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | ||
Processed Oil Spec | Water Content, ppm | ≤5 | ||||||
Dielectric Strength, Kv |
≥75 | |||||||
Filtration Fineness, um |
≤5( or 1-5 as needed ) | |||||||
Gas Content, % |
≤0.1 |
Other Models Oil Purifier:
TF Series: |
TF series oil filter is a filtration and dehydration unit with thermal and vacuum processing,it's ideal for filtration and dehydration of turbine oil, this unit can extend turbine oil life by removing contaminates from oil, such as water, gas and particulates, improve the oil properties. |
LV Series: |
LV series oil filter is a dehydration and degassing unit with thermal and vacuum processing, it's a multifunctional purifier which can treat various kinds of lubricant oils. |
FV Series: |
LV series oil filter is a stainless steel machine with thermal and vacuum processing, it's mainly used to improve the properties of phosphate ester fire-resistent oil in generator set. |
GER Series: |
Used oil regeneration system is suitable to regenerate used internal-combustion engine oil including diesel engine oil, gasoline engine oil, and used hydraulic oil, other used lubrication oil of machinery. |
GED series: |
it is used to recycle all kinds of waste oil into base oil or diesel oil with high quality. |
