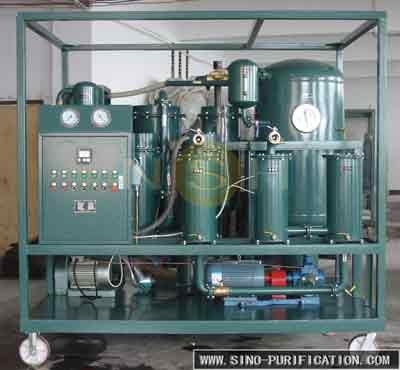

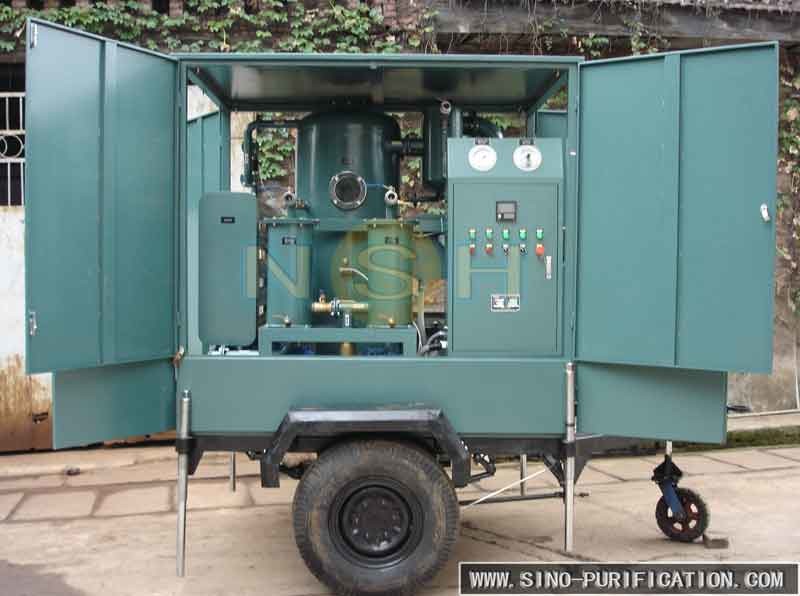

Degassing 29kW Vacuum Transformer Oil Purification Plant With Tralier

Basic Information

Place of Origin:	China
Brand Name:	SINO-NSH
Certification:	CE, ISO,SGS, SASO, SONCAP
Model Number:	VFD-30

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Wooden Case
Delivery Time:	15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Get Best Price Contact Now

Power:	29kW	Capacity:	1800L/H
Color:	Custom	Power Supply:	Fully Customizable
Material:	Stainless Steel/Carbon Steel	Warranty:	1years
After Warranty Service::	Video Technical Support, Online Support	Product Name:	Double-Stage Vacuum Transformer Oil Purifier
Highlight:	Decontamination Transformer Oil Purifier , Single Axle Wheels Transformer Oil Purifier , Enclosed Dehydration Transformer Oil Purifier

Degassing 29kW Vacuum Transformer Oil Purification Plant With Tralier

What is Oil Purifier?

Oil filter is a filter device which uses gravity centrifugal pressure vacuum distillation mass transfer and other technical methods to remove the oxidation by-products and moisture of mechanical impurities in impure oil. Oil filter is mainly used to improve the cleanliness of mechanical and electrical oil, so that it can play the best performance and extend the service life of equipment.

Transformer Oil Purification Plant Order Tips:

If you are not sure about the filter needed exactly,please advise what types of the oil adn give the oil specification.We help you choose certain suitable oil purifier.

Optional:

1. Single axle trailer,double axle trailer,trailer with enclosure doors
2. Separated operation room
3. Explosion-proof
4. Full automatic
5. Steel enclosure shield
6. Aluminum enclosure shield
7. Station with forklifts hole type
8. Tailored

Transformer Oil Purification Plant Features:

1. Liquid level auto-controlling system.
2. Auto pressure protection system.
3. Steay temperature auto-controlling system.
4. Eletrical auto-protection system to control electric phase, voltage, and overload of pump.

Degassing 29kW Vacuum Transformer Oil Purification Plant With Tralier 0

Transformer Oil Purification Plant Technical Parameters:

Parameters		Value
Parameters		VFD-30	VFD-50	VFD-75	VFD-100	VFD-150	VFD-200	VFD-300
Capacity, liters/hour		1800	3000	4000	6000	9000	12000	18000
Heating Power, kW		24	30	48	60	90	120	150
Total Power, kW		29	36	56	69	100	132	170
Power supply		Fully Customizable
Inlet Diameter, mm		25	32	32	40	40	50	65
Outlet Diameter, mm		25	32	32	40	40	50	65
Dimensions (without trailer)	length, mm	1350	1500	1550	1900	2200	2400	2900
	width, mm	1100	1200	1250	1400	1500	1600	1800
	height, mm	1700	1750	1800	1800	1850	1900	2000
Weight(without trailer), kg		600	800	900	1150	1500	1700	2400
Processed Oil Spec	Water Content, ppm	≤5
	Dielectric Strength, Kv	≥75
	Filtration Fineness, um	≤5( or 1-5 as needed )
	Gas Content, %	≤0.1

Corollary Equipment-VR Vacuum Pump Set:

SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.

Parameter		Value
Parameter		VR-30	VR-70	VR-150	VR-300	VR-600	VR-900
Capacity, liters/hour		100	250	500	1000	2000	3000
Total Power, kW		3	3	5	7	8	13
Power supply		Fully Customizable
Maximum Vacuum Range,Pa		0.06
Outlet Diameter, mm		32	32	40	40	50	65
Dimensions	length, mm	900	550	1000	1200	1500	1950
	width, mm	800	900	800	800	1000	1800
	height, mm	1200	800	1200	1200	1200	1300
Weight(without trailer), kg		450	550	600	900	950	1950
